PART No. ｲﾗｽﾄ No. REF No. PAR T NAME REMARKS Q'TY 20 部品加工部( Vｶｯﾄ 部(4P) 2) PART PROCES S SECT. ( V-CUT SECT.( 4P)-2) 部 品 名 品 番 個数 備 考 R 1 R 2 1 006 N210149093AA LEVER ﾚﾊ ﾞｰ 1 007 X01L1301202 LEVER ﾚﾊﾞｰ 1 008 X01L1301…
部品加工部(Vｶｯﾄ部(4P)2)
PART PROCESS SECT. (V-CUT SECT.(4P)-2)
20
FN610130477AA_03-2
M265
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
20
部品加工部(Vｶｯﾄ部(4P)2)
PART PROCESS SECT. (V-CUT SECT.(4P)-2)
部 品 名 品 番 個数
備 考
R
1
R
2
1006 N210149093AA
LEVER ﾚﾊ
ﾞｰ
1
007 X01L1301202
LEVER ﾚﾊﾞｰ
1
008 X01L1301302
LEVER ﾚﾊﾞｰ
2012 X01A13008
PIN ﾋ
ﾟﾝ
1015 X01A13029
SPRING ﾊ
ﾞﾈ
1
016 X01A13030
SPRING ｱｯｼｭｸﾊﾞﾈ
2
017 X01A13033
PIN ﾋﾟﾝ
1018 N210133270AB
CUTTER ｶｯﾀｰ
1019 N210133271AB
CUTTER ｶｯﾀｰ
1
020 N210124716AA
GUIDE ｶﾞｲﾄﾞ
1021 N210124717AA
GUIDE ｶﾞｲﾄﾞ
2022 X01A13038
PIN ﾋ
ﾟﾝ
1
023 X01A13042
SPRING ｱｯｼｭｸﾊﾞﾈ
1
024 X01A13044
SPRING ｱｯｼｭｸﾊﾞﾈ
2025 X01A13054
SPRING HOOK ﾊﾞﾈｶｹ
NART6UUVR
2
N005
N531NART-060
ROLLER FOLLOWER ﾛｰﾗﾌｫﾛｱ
NP3.2X3.5
2
N006
N560NP3.23.5
GREASE NIPPLE ｸﾞﾘｽﾆｯﾌﾟﾙ
M2.5-6H-4T A2J (Triva
2
N007
N510017841AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
2.5 10H A2J (Trivalen
2
N008
N510041286AA
ROUND PLAIN WASHER ｺｶﾞﾀﾏﾙﾋﾗｻﾞｶﾞﾈ
M2.5X6-10.9 A2J (Triv
2
N009
N510017246AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M4X16-45H A2J (Trival
2
N010
N510018367AA
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
MMS2.5-8
4
N018
N510020582AA
PIN ﾋﾟﾝ
M4X16-10.9 A2J (Triva
2
X506
N510017351AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
4 10H A2J (Trivalent)
2
X562
N510018497AA
ROUND PLAIN WASHER ﾐｶﾞ
ｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M4-6H-4T A2J (Trivale
2
X592
N510017855AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M3X10-10.9 A2J (Triva
4
X610
N510017305AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M266
FN610130477AA_03-2

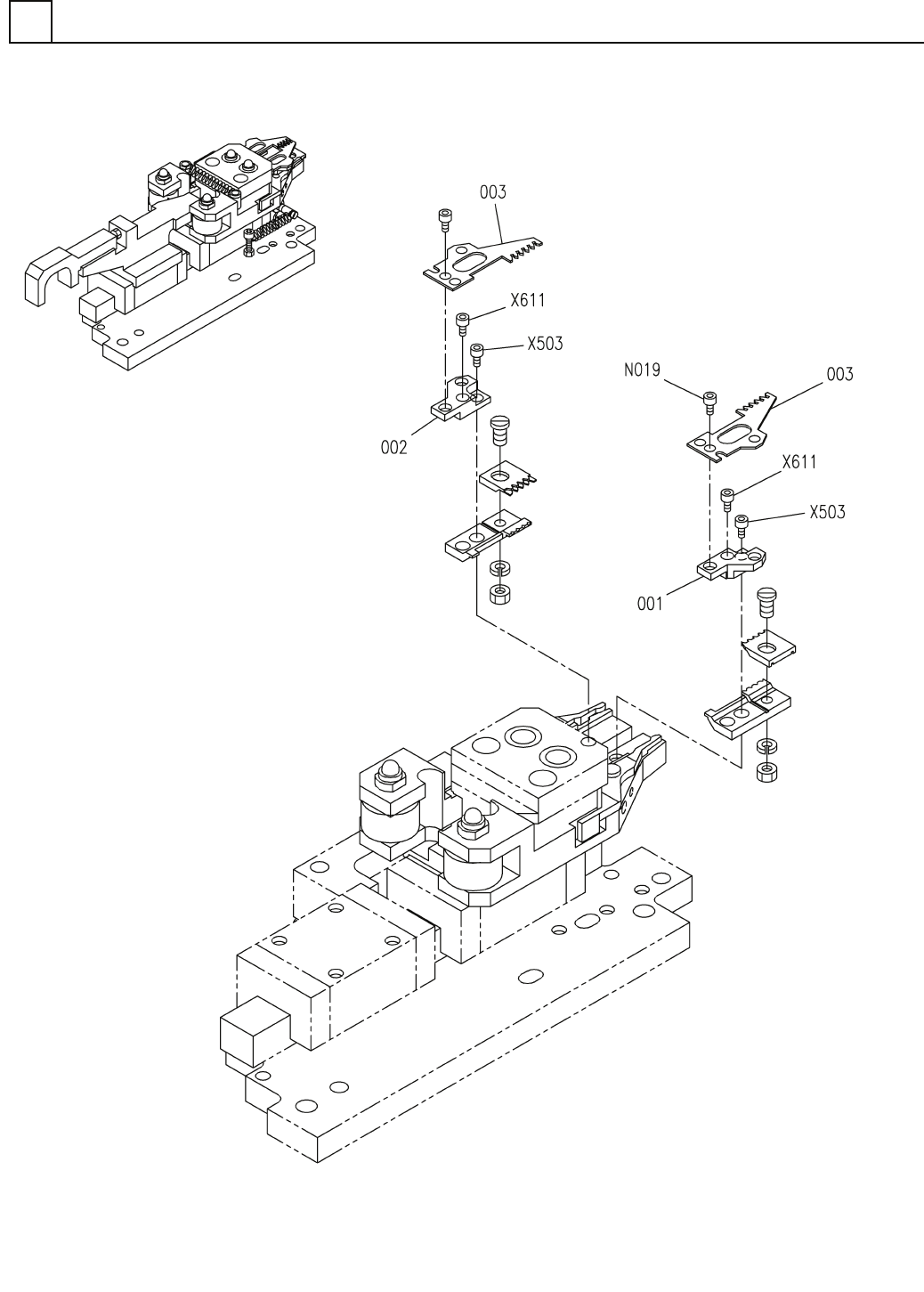

部品加工部(Vｶｯﾄ部ﾘｰﾄﾞ修正(4P))
PART PROCESS SECT. (V-CUT SECT. LEAD CORRECTION(4P))
20
FN610134905AA_00
M267
