部品手册1N7203A389B - 第316页
表示ﾗﾍﾞﾙ部 (2)(40 ｽﾃｰｼｮﾝ) INDICATION LABEL SEC T.(2)(40 STA TION) 22 FN610130667AA_05-2 M285
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
22
表示ﾗﾍﾞﾙ部(1)(40ｽﾃｰｼｮﾝ)
INDICATION LABEL SECT.(1)(40 STATION)
部 品 名 品 番 個数
備 考
R
1
R
2
1 N610130667AA
INDICATION LABEL UNIT ﾋｮｳｼ
ﾞﾗﾍﾞﾙﾕﾆｯﾄ
1
001 N210104787AA
SEAL ｼｰﾙ
1
004 N210082374AA
LABEL ﾗﾍﾞﾙ
1005 N210075562AA
NAME PLATE ﾒｲﾊ
ﾞﾝ
1010 N210108892AA
LABEL ﾗﾍ
ﾞﾙ
PD0101M1 S
1
N001
KXF0E061A00
SEAL ｼｰﾙ
PC010101 S
2
N002
KXF0E05TA00
LABEL ﾗﾍﾞﾙ
PC010201 S
10
N003
KXF0E05UA00
LABEL ﾗﾍ
ﾞﾙ
PW0101M1 S
1
N004
KXF0E063A00
LABEL ﾗﾍ
ﾞﾙ
PW0106M1 S
1
N005
KXF0E068A00
LABEL ﾗﾍﾞﾙ
PW0104M1 S
1
N007
KXF0E066A00
LABEL ﾗﾍﾞﾙ
M284
FN610130667AA_05-1

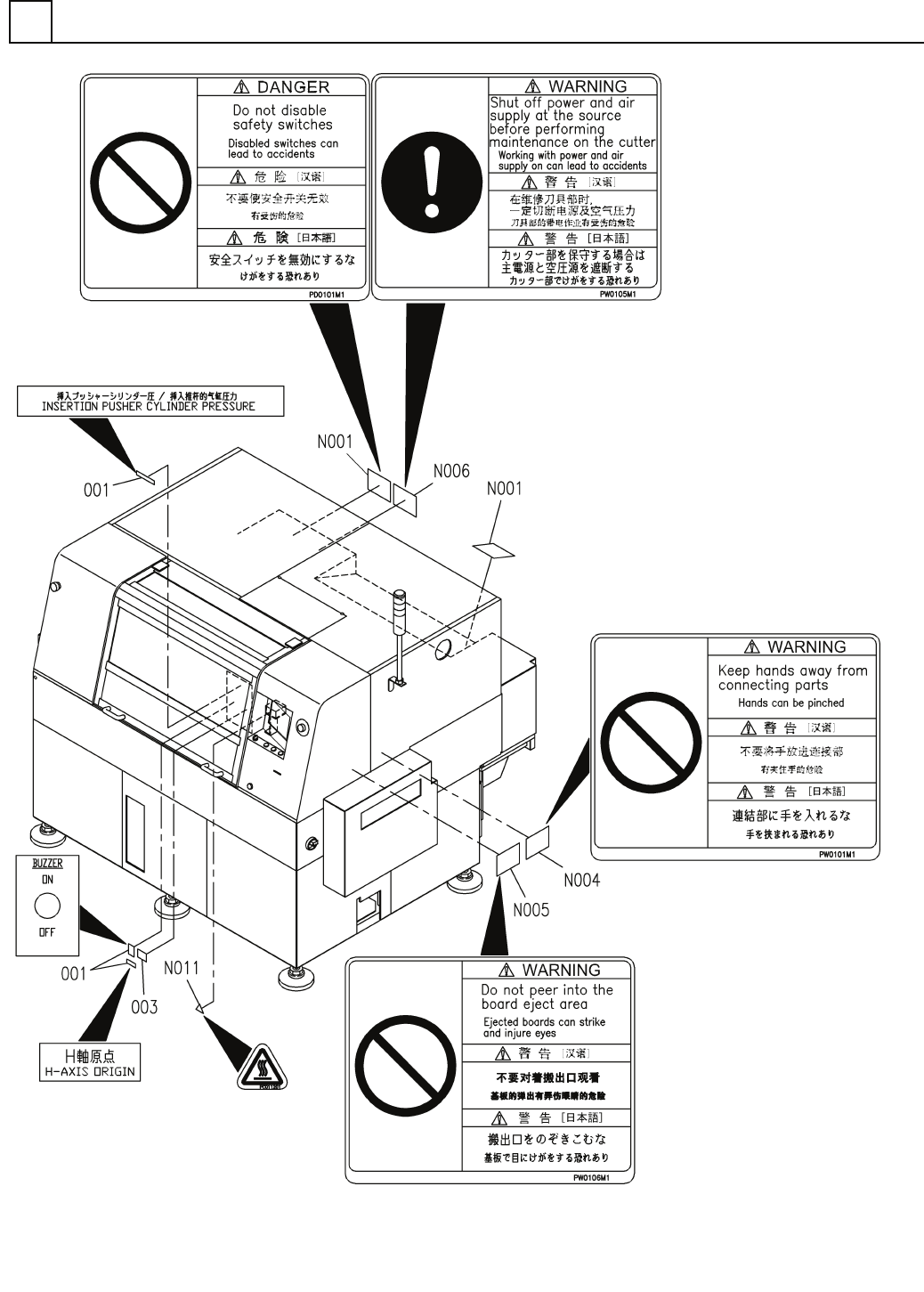

表示ﾗﾍﾞﾙ部(2)(40ｽﾃｰｼｮﾝ)
INDICATION LABEL SECT.(2)(40 STATION)
22
FN610130667AA_05-2
M285
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
22
表示ﾗﾍﾞﾙ部(2)(40ｽﾃｰｼｮﾝ)
INDICATION LABEL SECT.(2)(40 STATION)
部 品 名 品 番 個数
備 考
R
1
R
2
1001 N210104787AA
SEAL ｼｰﾙ
S
1
003 304274425202
LABEL ﾗﾍﾞﾙ
PD0101M1 S
2
N001
KXF0E061A00
SEAL ｼｰﾙ
PW0101M1 S
1
N004
KXF0E063A00
LABEL ﾗﾍ
ﾞﾙ
PW0106M1 S
1
N005
KXF0E068A00
LABEL ﾗﾍ
ﾞﾙ
PW0105M1 S
1
N006
KXF0E067A00
SEAL ｼｰﾙ
PC011201 S
1
N011
N986PC011201
LABEL ﾗﾍﾞﾙ
M286
FN610130667AA_05-2
