部品手册1N7203A389B - 第350页
X-Yﾃｰﾌﾞﾙ 部(自動幅 寄せ部3) X-Y TABLE S ECT.(AUTO WIDTH CONTR OL SECT.-3 ) 24 FN610130241AA_01-3 M319
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
24
X-Yﾃｰﾌﾞﾙ部(自動幅寄せ部2)
X-Y TABLE SECT.(AUTO WIDTH CONTROL SECT.-2)
部 品 名 品 番 個数
備 考
R
1
R
2
1011 N210152048AA
BLOCK ﾌ
ﾞﾛｯｸ
1
013 N210152049AA
BLOCK ﾌﾞﾛｯｸ
2
018 N210068284AA
BRACKET ﾌﾞﾗｹｯﾄ
1019 N210152050AA
DOG FOR SENSOR ﾄ
ﾞｸﾞ
2020 108710412002
BRACKET ﾌﾞﾗｹｯﾄ
2
021 108710412102
PULLEY ﾌﾟｰﾘｰ
2
022 N210068291AB
BRACKET ﾌﾞﾗｹｯﾄ
1024 N210152545AA
GUIDE ｶ
ﾞｲﾄﾞ
1025 N210152546AA
GUIDE ｶﾞ
ｲﾄﾞ
F605ZZ
4
N016
KXF0AL7AA00
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
M5,SUS301,2-TYPE,SS40
2
N017
N510044550AA
NUT U ﾅｯﾄ
SRS9MUUC1+450LHM-2
2
N019
N513SRS9-A56
LINEAR MOTION UNIT(W) ﾘﾆｱﾓｰｼｮﾝﾕﾆｯﾄ
(W)
BN 2844 M5X8
2
N021
N510060598AA
BOLT ﾎﾞﾙﾄ
M3X8-10.9 A2J (Trival
4
N501
N510017341AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M3X6-10.9 A2J (Trival
46
N502
N510017337AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X12-10.9 A2J (Triva
4
N503
N510017346AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
4 10H A2J (Trivalent)
5
N506
N510018497AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M3X25-10.9 A2J (Triva
8
N507
N510017321AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X16-10.9 A2J (Triva
2
N509
N510017395AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M3X8-4.8 A2J (Trivale
8
N514
N510018161AA
FLUSH HEAD SCREW ｻﾗｺﾈｼ
ﾞ
M318
FN610130241AA_01-2
X-Yﾃｰﾌﾞﾙ部(自動幅寄せ部3)
X-Y TABLE SECT.(AUTO WIDTH CONTROL SECT.-3)
24
FN610130241AA_01-3
M319
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
24

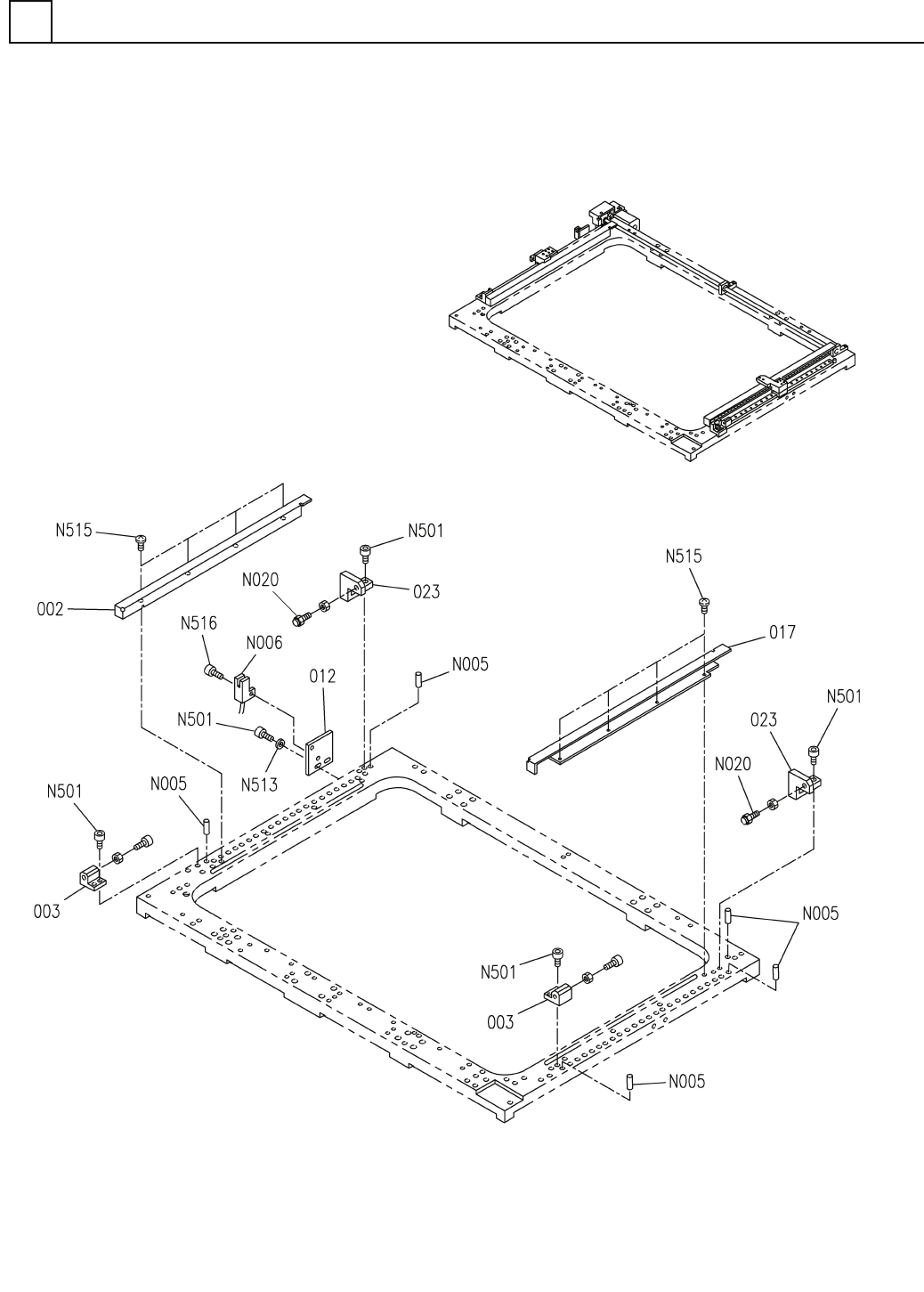

X-Yﾃｰﾌﾞﾙ部(自動幅寄せ部3)
X-Y TABLE SECT.(AUTO WIDTH CONTROL SECT.-3)
部 品 名 品 番 個数
備 考
R
1
R
2
1002 N210068287AA
COVER ｶﾊ
ﾞｰ
2
003 N210068292AA
BRACKET ﾌﾞﾗｹｯﾄ
1
012 N210152051AA
PLATE ﾌﾟﾚｰﾄ
1017 N210068286AA
COVER ｶﾊ
ﾞｰ
2023 N210068293AA
BRACKET ﾌﾞﾗｹｯﾄ
4X10,m6A,STEEL
5
N005
XPJ4A10FW
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ
P914S1
1
N006
N310P914S1
SENSOR ｾﾝｻ
SUB-M4X15
2
N020
N510017001AA
BOLT ﾎ
ﾞﾙﾄ
M3X8-10.9 A2J (Trival
10
N501
N510017341AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
3 10H A2J (Trivalent)
2
N513
N510018494AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M3X6-4.8 A2J (Trivale
8
N515
N510018253AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
M3X5-10.9 A2J (Trival
1
N516
N510017333AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M320
FN610130241AA_01-3
