PART No. ｲﾗｽﾄ No. REF No. PAR T NAME REMARKS Q'TY 25 ﾛｰﾀﾞ・ｱﾝﾛｰﾀﾞ 部（ｱﾝ ﾛｰﾀﾞ自動幅寄せ 部2） LOADER & UN LOADER SE CT.(UNLOADER AUTO WIDT H CONTROL SECT .-2) 部 品 名 品 番 個数 備 考 R 1 R 2 1 001 N210152374AD PLATE ﾌ ﾟﾚｰﾄ 1 002…
ﾛｰﾀﾞ・ｱﾝﾛｰﾀﾞ部（ｱﾝﾛｰﾀﾞ自動幅寄せ部2）
LOADER & UNLOADER SECT.(UNLOADER AUTO WIDTH CONTROL SECT.-2)
25
FN610128954AA_04-2
M327
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
25
ﾛｰﾀﾞ・ｱﾝﾛｰﾀﾞ部（ｱﾝﾛｰﾀﾞ自動幅寄せ部2）
LOADER & UNLOADER SECT.(UNLOADER AUTO WIDTH CONTROL SECT.-2)
部 品 名 品 番 個数
備 考
R
1
R
2
1001 N210152374AD
PLATE ﾌ
ﾟﾚｰﾄ
1
002 N210152523AE
PLATE ﾌﾟﾚｰﾄ
2
003 1099705118
PULLEY ﾌﾟｰﾘｰ
4004 N210149411AA
PLATE ﾌ
ﾟﾚｰﾄ
2011 X02P05031
SPACER ｽﾍ
ﾟｰｻ
1
012 N210149414AA
RACK ﾗｯｸ
1
013 N210151259AA
PULLEY ﾌﾟｰﾘｰ
1014 N210149417AC
BRACKET(MOTOR) ﾌﾞ
ﾗｹｯﾄ(ﾓｰﾀ)
1015 N210151258AA
PULLEY ﾌﾟｰﾘｰ
1
016 N210149416AA
PIN ﾋﾟﾝ
1017 N210149420AA
COLLAR ｶﾗｰ
1018 N210152755AB
BLOCK ﾌ
ﾞﾛｯｸ
1
019 N210156079AA
DOG FOR SENSOR ﾄﾞｸﾞ
1
020 N210156064AA
BRACKET ﾌﾞﾗｹｯﾄ
1021 N210156324AA
PLATE ﾌﾟﾚｰﾄ
1022 N210154679AA
BRACKET ﾌ
ﾞﾗｹｯﾄ
1
023 N210066364AA
BRACKET ﾌﾞﾗｹｯﾄ
M6
1
N002
N510020101AA
WASHER ｻﾞｶﾞﾈ
M4
1
N004
N510020099AA
WASHER ﾜｯｼｬ
103H5331-03GXF4 S
1
N005
N510028188AA
MOTOR ﾓｰﾀ
MB019200
4
N006
N510058700AA
PULLEY ﾌﾟｰﾘ
0IK1GN-CW2J
2
N008
N510031297AA
MOTOR ﾓｰﾀ
0GN9K
2
N009
N510058907AA
GEAR HEAD ｷﾞ
ﾔｰﾍｯﾄﾞ
F688ZZ
2
N013
KXF020PAA00
BALL BEARING ﾎﾞｰﾙﾍ
ﾞｱﾘﾝｸﾞ
P914S1
1
N015
N310P914S1
SENSOR ｾﾝｻ
P919T
2
N016
N310P919T
SWITCH ｽｲｯﾁ
BN1206 M4X8
1
N019
N510015166AA
BOLT ﾎ
ﾞﾙﾄ
1080-EV5GT-9
1
N020
N510059529AA
BELT ﾍﾞﾙﾄ
M5X6-10.9 A2J (Trival
16
N501
N510017414AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X12-10.9 A2J (Triva
3
X508
N510017390AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M3X6-10.9 A2J (Trival
9
X609
N510017337AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M3X12-10.9 A2J (Triva
4
X503
N510017308AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X16-10.9 A2J (Triva
2
X509
N510017395AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X25-10.9 A2J (Triva
1
X618
N510017360AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X8-10.9 A2J (Trival
6
X615
N510017381AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M3X50-10.9 A2J (Triva
8
N502
N510017332AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X8-45H A2J (Trivale
2
N503
N510018440AA
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
M5X35-6g 4T A2J (Triv
1
N504
N510017749AA
HEXAGON HEAD BOLT ﾛｯｶｸﾎ
ﾞﾙﾄ
M4-6H-4T A2J (Trivale
8
X592
N510017855AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M5-6H-4T A2J (Trivale
2
X593
N510017862AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M3X5-4.8 A2J (Trivale
2
N505
N510018251AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
M6-6H-4T A2J (Trivale
1
X594
N510017867AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M3X8-45H A2J (Trivale
1
N506
N510018426AA
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
4 10H A2J (Trivalent)
2
X552
N510018479AA
ROUND PLAIN WASHER ｺｶﾞｶﾏﾙﾋﾗｻﾞｶﾞﾈ
M3X8-10.9 A2J (Trival
4
X502
N510017341AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X15-10.9 A2J (Triva
2
N507
N510017394AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M5X12-6g 4T A2J (Triv
1
N509
N510017741AA
HEXAGON HEAD BOLT ﾛｯｶｸﾎﾞﾙﾄ
M4X6-10.9 A2J (Trival
2
X504
N510017376AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M328
FN610128954AA_04-2

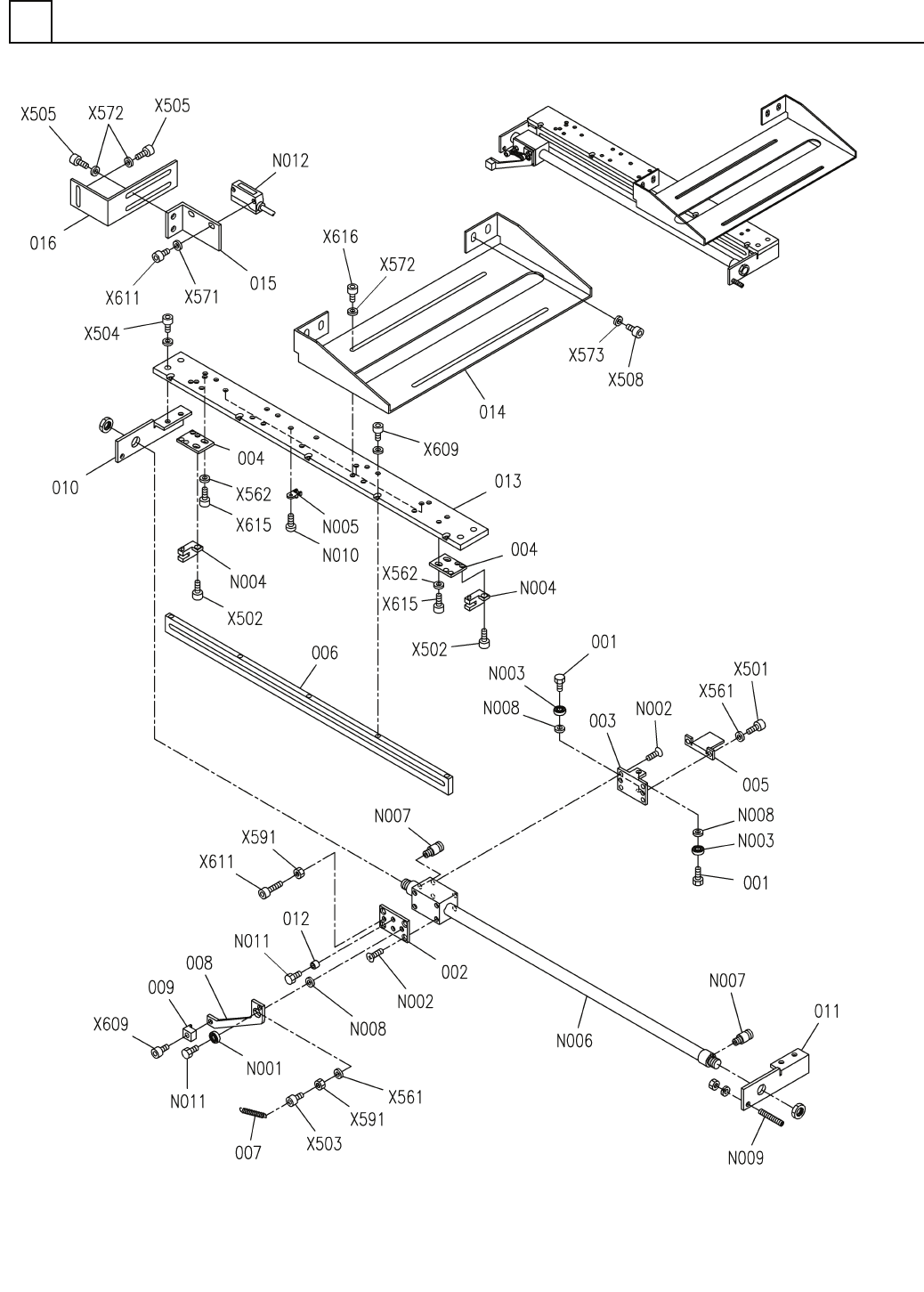

ﾛｰﾀﾞ･ｱﾝﾛｰﾀﾞ部(P-PUSH部)
LOADER & UNLOADER SECT.(P-PUSH SECT.)
25
FN610128927AA_01
M329
