基準ﾌﾞﾛ ｯｸ部(C =4.0 ) POSITION BL OCK SECT. (C=4.0) 26 F10203-04-290-AA_A M331
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
25
ﾛｰﾀﾞ･ｱﾝﾛｰﾀﾞ部(P-PUSH部)
LOADER & UNLOADER SECT.(P-PUSH SECT.)
部 品 名 品 番 個数
備 考
R
1
R
2
1 N610128927AA
P-PUSH UNIT P-PUSH
ﾕﾆｯﾄ
2
001 1011682502
BOLT ﾎﾞﾙﾄ
1
002 101168250301
PLATE ﾌﾟﾚｰﾄ
1003 1011682504
BRACKET ﾌ
ﾞﾗｹｯﾄ
2004 1011682505
PLATE ﾌﾟﾚｰﾄ
1
005 1011682506
PLATE ﾌﾟﾚｰﾄ
1
006 101168250701
PLATE ﾌﾟﾚｰﾄ
1007 1011682004
SPRING ﾊ
ﾞﾈ
1008 1011682513
LEVER ﾚﾊ
ﾞｰ
1
009 1011682514
BLOCK ﾌﾞﾛｯｸ
1010 101168251501
BRACKET ﾌﾞﾗｹｯﾄ
1011 1011682516
BRACKET ﾌ
ﾞﾗｹｯﾄ
1
012 1011682524
COLLAR ｶﾗｰ
1
013 N210151402AA
PLATE ﾌﾟﾚｰﾄ
1014 N210151403AA
BRACKET ﾌﾞﾗｹｯﾄ
1015 N210151185AA
BRACKET ﾌ
ﾞﾗｹｯﾄ
1
016 N210151186AA
BRACKET ﾌﾞﾗｹｯﾄ
MF104ZZ
1
N001
KXF05XFAA00
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
M3X6-4.8 A2J (Trivale
8
N002
N510018158AA
FLUSH HEAD SCREW ｻﾗｺﾈｼﾞ
MR104ZZ
2
N003
KXF05XUAA00
BALL BEARING ﾎﾞｰﾙﾍ
ﾞｱﾘﾝｸﾞ
P914SB1
2
N004
N310P914SB1
SENSOR ｾﾝｻ
CTAM1
4
N005
KXFP6F86A00
CLAMP ｸﾗﾝﾌﾟ
CY3B10-350-DCJ605CJ
1
N006
N510023175AA
CYLINDER ｼﾘﾝﾀ
ﾞ
POC6-M5M
2
N007
N431P0C6M5M
FITTING ﾂｷ
ﾞﾃ
87FWSSB-D6.0-V4.0-T1.
3
N008
N510031417AA
WASHER ｻﾞｶﾞﾈ
87ANBN5-30
1
N009
N510024969AA
SCREW ｽｸﾘｭｰ
M4X6-4.8 A2J (Trivale
4
N010
N510018279AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼ
ﾞ
87CBS4-8
2
N011
N510045805AA
BOLT ﾎﾞﾙﾄ
P919T
1
N012
N310P919T
SWITCH ｽｲｯﾁ
M3X5-10.9 A2J (Trival
2
X501
N510017333AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M3X8-10.9 A2J (Trival
2
X502
N510017341AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M3X12-10.9 A2J (Triva
1
X503
N510017308AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X6-10.9 A2J (Trival
4
X504
N510017376AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X12-10.9 A2J (Triva
4
X508
N510017390AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
3 10H A2J (Trivalent)
5
X561
N510018494AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻ
ﾞｶﾞﾈ
4 10H A2J (Trivalent)
4
X562
N510018497AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M3
2
X571
N510020098AA
WASHER ｻﾞｶﾞﾈ
M4
8
X572
N510020099AA
WASHER ﾜｯｼｬ
M5
4
X573
N510020100AA
WASHER ｻﾞ
ｶﾞﾈ
M3-6H-4T A2J (Trivale
2
X591
N510017849AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M3X6-10.9 A2J (Trival
6
X609
N510017337AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M3X16-10.9 A2J (Triva
3
X611
N510017313AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M4X8-10.9 A2J (Trival
4
X615
N510017381AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X10-10.9 A2J (Triva
4
X505
N510017344AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X12-10.9 A2J (Triva
4
X616
N510017346AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M330
FN610128927AA_01

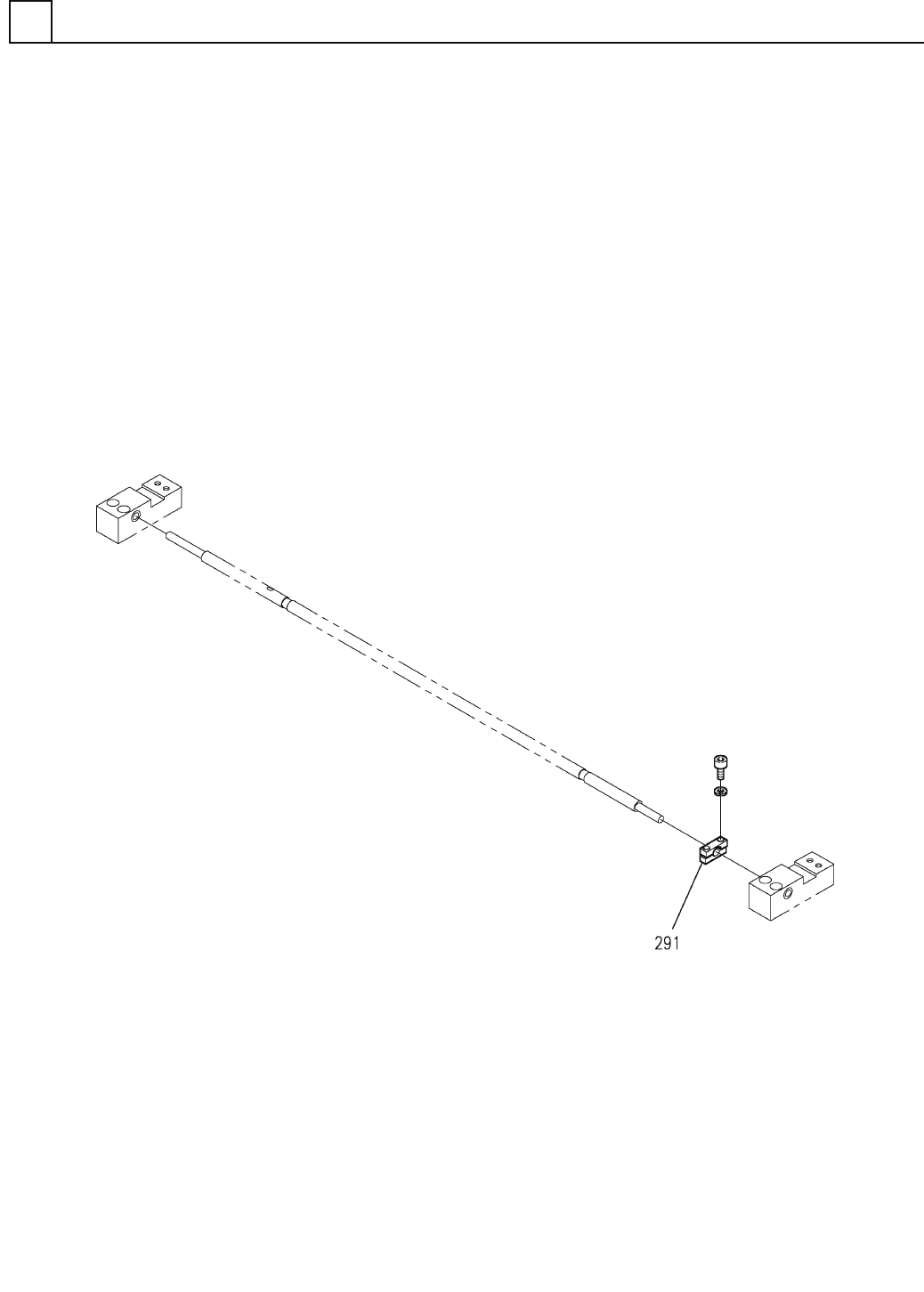

基準ﾌﾞﾛｯｸ部(C=4.0)
POSITION BLOCK SECT.(C=4.0)
26
F10203-04-290-AA_A
M331
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
26
基準ﾌﾞﾛｯｸ部(C=4.0)
POSITION BLOCK SECT.(C=4.0)
部 品 名 品 番 個数
備 考
R
1
R
2
1290 1020304290
BLOCK UNIT ﾌﾞ
ﾛｯｸﾕﾆｯﾄ
C=4.0
1
291 102030429101
BLOCK ﾌﾞﾛｯｸ
M332
F10203-04-290-AA_A
