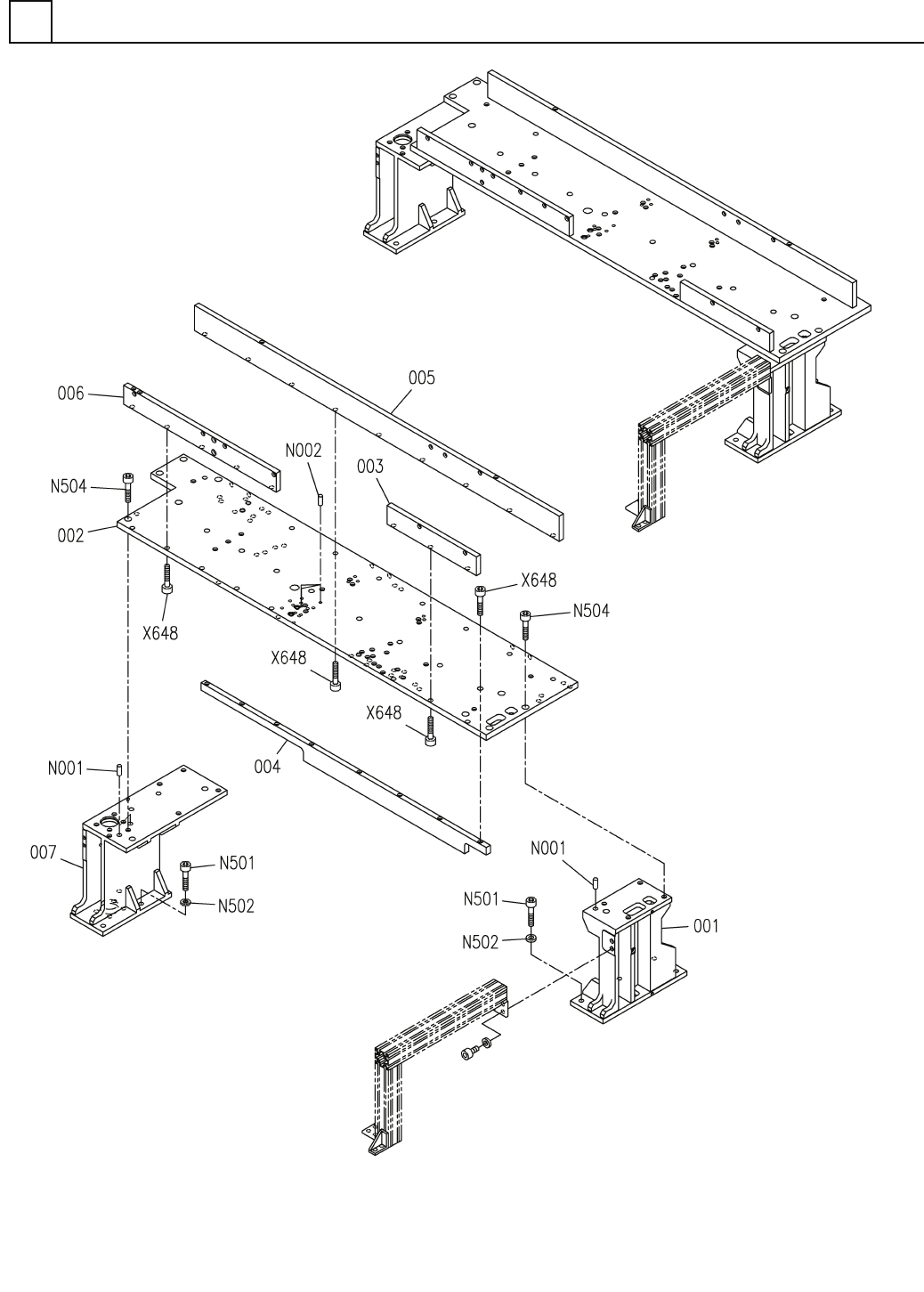

本体部(ｱｯ ﾊﾟﾌﾚｰﾑ部 )(80ｽﾃｰｼｮﾝ) MAIN BODY S ECT.(UPPE R FRAME SECT .)(80 STAT ION) 1 FN610130671AA_02 M9
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
1
本体部(ｱｯﾊﾟﾌﾚｰﾑ部)(40ｽﾃｰｼｮﾝ)
MAIN BODY SECT.(UPPER FRAME SECT.)(40 STATION)
部 品 名 品 番 個数
備 考
R
1
R
2
1 N610123553AA
MAIN BODY UNIT ﾎﾝﾀｲﾕﾆｯﾄ
2
A001
N610123863AA
FRAME(SUPPORT) ﾌﾚｰﾑ(ｻﾎﾟｰﾄ)
1
001 N210150063AA
ARM(RIGHT) ｱｰﾑ(RIGHT)
1002 N210147243AD
PLATE(BASE) ﾌﾟ
ﾚｰﾄ(ﾍﾞｰｽ)
1003 N210145726AA
RIB ﾘﾌ
ﾞ
1
004 N210088041AA
PLATE ﾌﾟﾚｰﾄ
1
005 N210088043AB
PLATE ﾌﾟﾚｰﾄ
1006 N210154605AA
PLATE ﾌ
ﾟﾚｰﾄ
1007 N210150064AA
ARM(LEFT) ｱｰﾑ(
LEFT)
MMS10-40
3
N001
N510020647AA
PIN ﾋﾟﾝ
MMS8-15
3
N002
N510020629AA
PIN ﾋﾟﾝ
M12X35-10.9 A2J (Triv
7
N501
N510017190AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
12 10H A2J (Trivalent
7
N502
N510018507AA
WASHER ﾋﾗｻﾞｶﾞﾈ
M12X25-10.9 A2J (Triv
9
N504
N510017188AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M10X25-10.9 A2J (Triv
23
X648
N510017166AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M8
FN610123553AA_01
本体部(ｱｯﾊﾟﾌﾚｰﾑ部)(80ｽﾃｰｼｮﾝ)
MAIN BODY SECT.(UPPER FRAME SECT.)(80 STATION)
1
FN610130671AA_02
M9
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
1
本体部(ｱｯﾊﾟﾌﾚｰﾑ部)(80ｽﾃｰｼｮﾝ)
MAIN BODY SECT.(UPPER FRAME SECT.)(80 STATION)
部 品 名 品 番 個数
備 考
R
1
R
2
1 N610130671AA
MAIN BODY UNIT ﾎﾝﾀｲﾕﾆｯﾄ
1
001 N210150063AA
ARM(RIGHT) ｱｰﾑ(RIGHT)
1
002 N210154604AA
UPPER BASE ﾍﾞｰｽ(ｱｯﾊﾟｰ)
1003 N210088041AA
PLATE ﾌ
ﾟﾚｰﾄ
1004 N210088042AA
PLATE ﾌﾟﾚｰﾄ
1
005 N210088043AB
PLATE ﾌﾟﾚｰﾄ
1
006 N210154605AA
PLATE ﾌﾟﾚｰﾄ
1007 N210150064AA
ARM(LEFT) ｱｰﾑ
(LEFT)
MMS10-40
3
N001
N510020647AA
PIN ﾋ
ﾟﾝ
MMS8-15
3
N002
N510020629AA
PIN ﾋﾟﾝ
M12X35-10.9 A2J (Triv
7
N501
N510017190AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
12 10H A2J (Trivalent
7
N502
N510018507AA
WASHER ﾋﾗｻ
ﾞｶﾞﾈ
M10X25-10.9 A2J (Triv
25
X648
N510017166AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M12X25-10.9 A2J (Triv
9
N504
N510017188AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M10
FN610130671AA_02
