PART No. ｲﾗｽﾄ No. REF No. PAR T NAME REMARKS Q'TY 28 ﾃｰﾌﾟﾌｨｰﾀﾞ 部(15.0 X7.5(2)) TAPE FEEDER SECT.(15 .0X7.5(2)) 部 品 名 品 番 個数 備 考 R 1 R 2 1 A007 N610071899AA SENSOR UNIT ｾﾝｻﾕﾆｯﾄ 1 A010 N610026102AA LEVER UNIT ﾚﾊﾞｰﾕﾆｯﾄ…

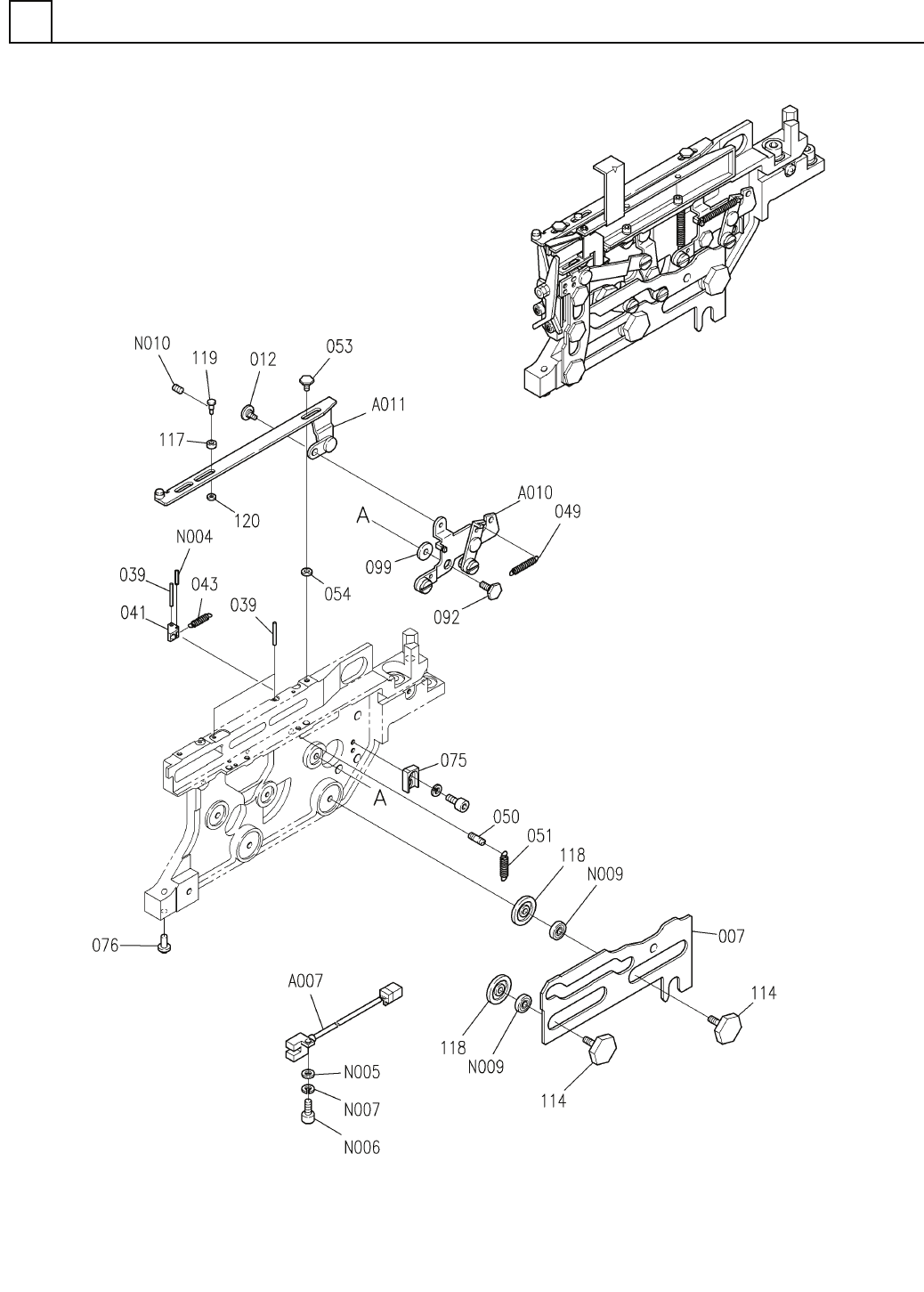

ﾃｰﾌﾟﾌｨｰﾀﾞ部(15.0X7.5(2))
TAPE FEEDER SECT.(15.0X7.5(2))
28
FN610071920AA_00-2
M423
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
28
ﾃｰﾌﾟﾌｨｰﾀﾞ部(15.0X7.5(2))
TAPE FEEDER SECT.(15.0X7.5(2))
部 品 名 品 番 個数
備 考
R
1
R
2
1
A007
N610071899AA
SENSOR UNIT ｾﾝｻﾕﾆｯﾄ
1
A010
N610026102AA
LEVER UNIT ﾚﾊﾞｰﾕﾆｯﾄ
1
A011
N610026103AA
SLIDER UNIT ｽﾗｲﾀﾞﾕﾆｯﾄ
1007 X01A38507
CAM ｶﾑ
1012 X01A38012
PIN ﾋ
ﾟﾝ
3
039 X01A38039
PIN ﾋﾟﾝ
1
041 X01A3804102
CLAW ﾂﾒ
1043 X01A38043
SPRING ﾊ
ﾞﾈ
1049 X01A38049
SPRING ﾊ
ﾞﾈ
1
050 X01A38050
PIN ﾋﾟﾝ(ﾊﾞﾈｶｹ)
1051 X01A38051
SPRING ﾊﾞﾈ
2053 X01A38053
PIN ﾋ
ﾟﾝ
2
054 X01A38054
SPACER ｽﾍﾟｰｻ
1
075 X01A3807502
STOPPER ｽﾄｯﾊﾟ
1076 X01A38076
PIN ﾋﾟﾝ
1092 X01A38092
PIN ﾋ
ﾟﾝ
1
099 X01A38099
SPACER ｽﾍﾟｰｻ
2
114 X01A38114
PIN ﾋﾟﾝ
1117 X01A38117
ROLLER ﾛｰﾗ
2118 X01A38118
SPACER ｽﾍ
ﾟｰｻ
1
119 X01A3811901
PIN ﾋﾟﾝ
1
120 X01A38120
SPACER ｽﾍﾟｰｻ
1.2X5
1
N004
XPL12A5WFW
SPRING PIN ｽﾌ
ﾟﾘﾝｸﾞﾋﾟﾝ
2 10H A2J (Trivalent)
1
N005
N510018477AA
ROUND PLAIN WASHER ｺｶﾞ
ｶﾏﾙﾋﾗｻﾞｶﾞﾈ
M2X8-10.9 A2J (Trival
1
N006
N510017261AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
No.2 2 S A2J (Trivale
1
N007
N510018324AA
SPRING WASHER ﾊﾞﾈｻﾞｶﾞﾈ
L-1260ZZ
2
N009
KXF02F9AA00
BEARING ﾍﾞ
ｱﾘﾝｸﾞ
M2X2-45H A2J (Trivale
1
N010
N510018353AA
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
M424
FN610071920AA_00-2
ﾃｰﾌﾟﾌｨｰﾀﾞ部(15.0X10.0(1))
TAPE FEEDER SECT.(15.0X10.0(1))
28
FN610101850AA_02-1
