PART No. ｲﾗｽﾄ No. REF No. PAR T NAME REMARKS Q'TY 28 ﾃｰﾌﾟﾌｨｰﾀﾞ 部(15.0 X10.0(1) ) TAPE FEEDER SECT.(15 .0X10.0(1)) 部 品 名 品 番 個数 備 考 R 1 R 2 1 N610101850AA TAPE FEEDER U NIT ﾃｰﾌ ﾟﾌｨｰﾀﾞﾕﾆｯﾄ 1 A001 X01A38126 SCISSORS UN…

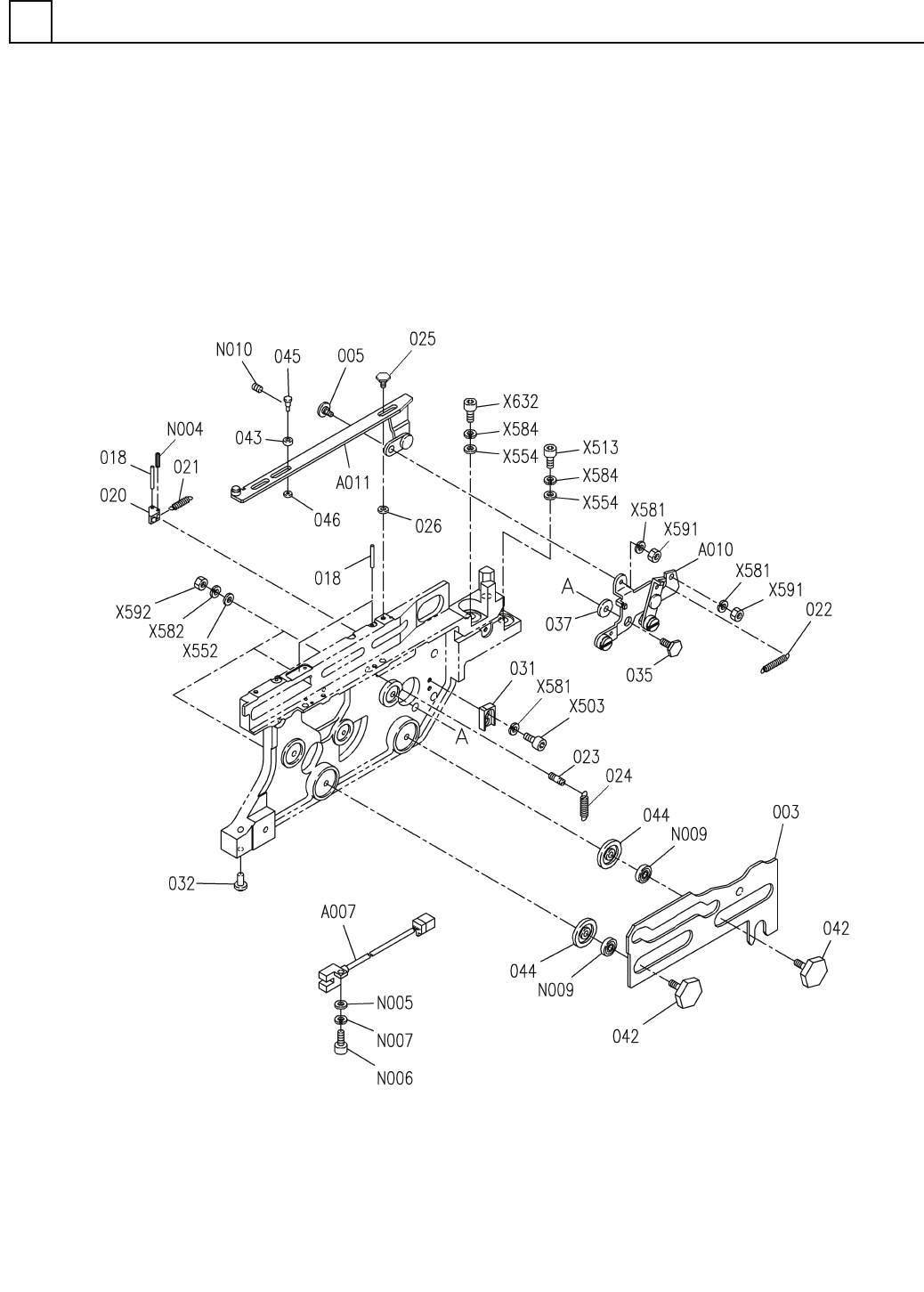

ﾃｰﾌﾟﾌｨｰﾀﾞ部(15.0X10.0(1))
TAPE FEEDER SECT.(15.0X10.0(1))
28
FN610101850AA_02-1
M425
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
28
ﾃｰﾌﾟﾌｨｰﾀﾞ部(15.0X10.0(1))
TAPE FEEDER SECT.(15.0X10.0(1))
部 品 名 品 番 個数
備 考
R
1
R
2
1 N610101850AA
TAPE FEEDER UNIT ﾃｰﾌ
ﾟﾌｨｰﾀﾞﾕﾆｯﾄ
1
A001
X01A38126
SCISSORS UNIT ﾊｻﾐﾕﾆｯﾄ
1
A003
N610016681AA
LEVER UNIT ﾚﾊﾞｰﾕﾆｯﾄ
1
A008
N610102056AA
LEVER UNIT ﾚﾊ
ﾞｰﾕﾆｯﾄ
1
A009
N610026101AA
LEVER UNIT ﾚﾊﾞｰﾕﾆｯﾄ
1
001 N210125058AB
FRAME ﾌﾚｰﾑ
1
002 N210125059AB
SLIDER ｽﾗｲﾀﾞ
1004 X01A38010
ROLLER ﾛｰﾗ
2005 X01A38012
PIN ﾋ
ﾟﾝ
1
006 X01A3801501
PIN ﾋﾟﾝ
1007 X01A38017
COLLAR ｶﾗｰ
2008 X01A38018
ROLLER ﾛｰﾗ
1
009 X01A3801901
PIN ﾋﾟﾝ
1
010 X01A3802002
PIN ﾋﾟﾝ
1011 X01A3802202
PIN ﾋﾟﾝ
2012 X01A3803201
PIN ﾋ
ﾟﾝ
2
013 X01A3803301
SPACER ｽﾍﾟｰｻ
1
014 X01A3803402
CLAW ﾂﾒ
2015 X01A38035
PIN ﾋﾟﾝ
2016 X01A38037
SPRING ｱｯｼｭｸﾊ
ﾞﾈ
1
017 X01A3803803
CLAW ﾂﾒ
1
019 X01A38040
SPRING ｱｯｼｭｸﾊﾞﾈ
1027 X02P58056
TAPE GUIDE ﾃｰﾌ
ﾟｶﾞｲﾄﾞ
1028 X01A38060
SPRING ﾊ
ﾞﾈ
1
029 N210059724AB
SLIDER ｽﾗｲﾀﾞ
1030 N210087041AA
CLAW ﾂﾒ
1033 X01A38089
PIN ﾋ
ﾟﾝ
1
034 X01A38090
PIN ﾋﾟﾝ
1
035 X01A38092
PIN ﾋﾟﾝ
1036 X01A38098
SPACER ｽﾍﾟｰｻ
1037 X01A38099
SPACER ｽﾍ
ﾟｰｻ
1
038 X01A38101
PIN ﾋﾟﾝ
1
039 X01A38106
COLLAR ｶﾗｰ
1040 N210125060AB
LEVER ﾚﾊﾞｰ(ｹﾝｼｭﾂ)
1041 X01A38111
PIN ﾋ
ﾟﾝ
1
047 X01A38122
PIN ﾋﾟﾝ
2
048 X01A38124
ROLLER ﾛｰﾗ
MR106ZZS
1
N001
KXF05XWAA00
BEARING ﾍ
ﾞｱﾘﾝｸﾞ
683ZZ
3
N002
KXF0C8ZAA00
BEARING ﾍﾞｱﾘﾝｸ
ﾞ
ETW-1.5
6
N003
KXF01X6AA00
RETAINING RING E-TYPE E ｶﾞﾀﾄﾒﾜ
M3X5-4.8 A2J (Trivale
1
N008
N510017981AA
ROUND HEAD SCREW ﾏﾙｺﾈｼﾞ
M3X8-10.9 A2J (Trival
4
X503
N510017341AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
4 10H A2J (Trivalent)
4
X552
N510018479AA
ROUND PLAIN WASHER ｺｶﾞｶﾏﾙﾋﾗｻﾞｶﾞﾈ
No.2 3 S A2J (Trivale
8
X581
N510018327AA
SPRING WASHER ﾊﾞﾈｻﾞｶﾞﾈ
No.2 4 S A2J (Trivale
6
X582
N510018330AA
SPRING WASHER ﾊﾞﾈｻﾞｶﾞﾈ
M3-6H-4T A2J (Trivale
4
X591
N510017849AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M4-6H-4T A2J (Trivale
6
X592
N510017855AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M426
FN610101850AA_02-1
ﾃｰﾌﾟﾌｨｰﾀﾞ部(15.0X10.0(2))
TAPE FEEDER SECT.(15.0X10.0(2))
28
FN610101850AA_02-2
M427
