部品手册1N7203A389B - 第53页
PART No. ｲﾗｽﾄ No. REF No. PAR T NAME REMARKS Q'TY 3 ﾒｲﾝ駆動部 (3) MAIN DRIVIN G SECT.(3 ) 部 品 名 品 番 個数 備 考 R 1 R 2 1 013 N210086211AA PLATE ﾌ ﾟﾚｰﾄ 1 014 N210086215AA BRACKET ﾌﾞﾗｹｯﾄ 2 016 N210086221AA PIN ﾋﾟﾝ 1 017 N210…
ﾒｲﾝ駆動部(3)
MAIN DRIVING SECT.(3)
3
FN610130987AA_01-3
M21
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
3
ﾒｲﾝ駆動部(3)
MAIN DRIVING SECT.(3)
部 品 名 品 番 個数
備 考
R
1
R
2
1013 N210086211AA
PLATE ﾌ
ﾟﾚｰﾄ
1
014 N210086215AA
BRACKET ﾌﾞﾗｹｯﾄ
2
016 N210086221AA
PIN ﾋﾟﾝ
1017 N210086223AA
PLATE ﾌ
ﾟﾚｰﾄ
1018 N210086224AA
PULLEY ﾌﾟｰﾘｰ
VEL-7055
1
N006
N648VFL7055
PULLEY ﾌﾟｰﾘｰ
M8X70-10.9 A2J (Triva
1
N014
N510017490AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
6202ZZ
2
N015
KXF00KUAA00
BEARING ﾍ
ﾞｱﾘﾝｸﾞ
87WASMH20-6
2
N016
N510035527AA
WASHER ｻﾞ
ｶﾞﾈ
M10
2
N017
N510020103AA
WASHER ｻﾞｶﾞﾈ
M4X8-10.9 A2J (Trival
3
N501
N510017381AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
4 10H A2J (Trivalent)
3
N503
N510018497AA
ROUND PLAIN WASHER ﾐｶﾞ
ｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M6X16-10.9 A2J (Triva
2
N508
N510017433AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M8X20-10.9 A2J (Triva
4
N512
N510017472AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
8 10H A2J (Trivalent)
4
N514
N510018503AA
WASHER ﾋﾗｻﾞｶﾞﾈ
M8-6H-4T A2J (Trivale
1
N515
N510017877AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M10X25-10.9 A2J (Triv
4
N516
N510017166AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
10 10H A2J (Trivalent
2
N518
N510018505AA
WASHER ﾋﾗｻﾞｶﾞﾈ
12 10H A2J (Trivalent
2
N520
N510018507AA
WASHER ﾋﾗｻﾞｶﾞﾈ
M12-6H-4T A2J (Trival
2
N521
N510017895AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M22
FN610130987AA_01-3

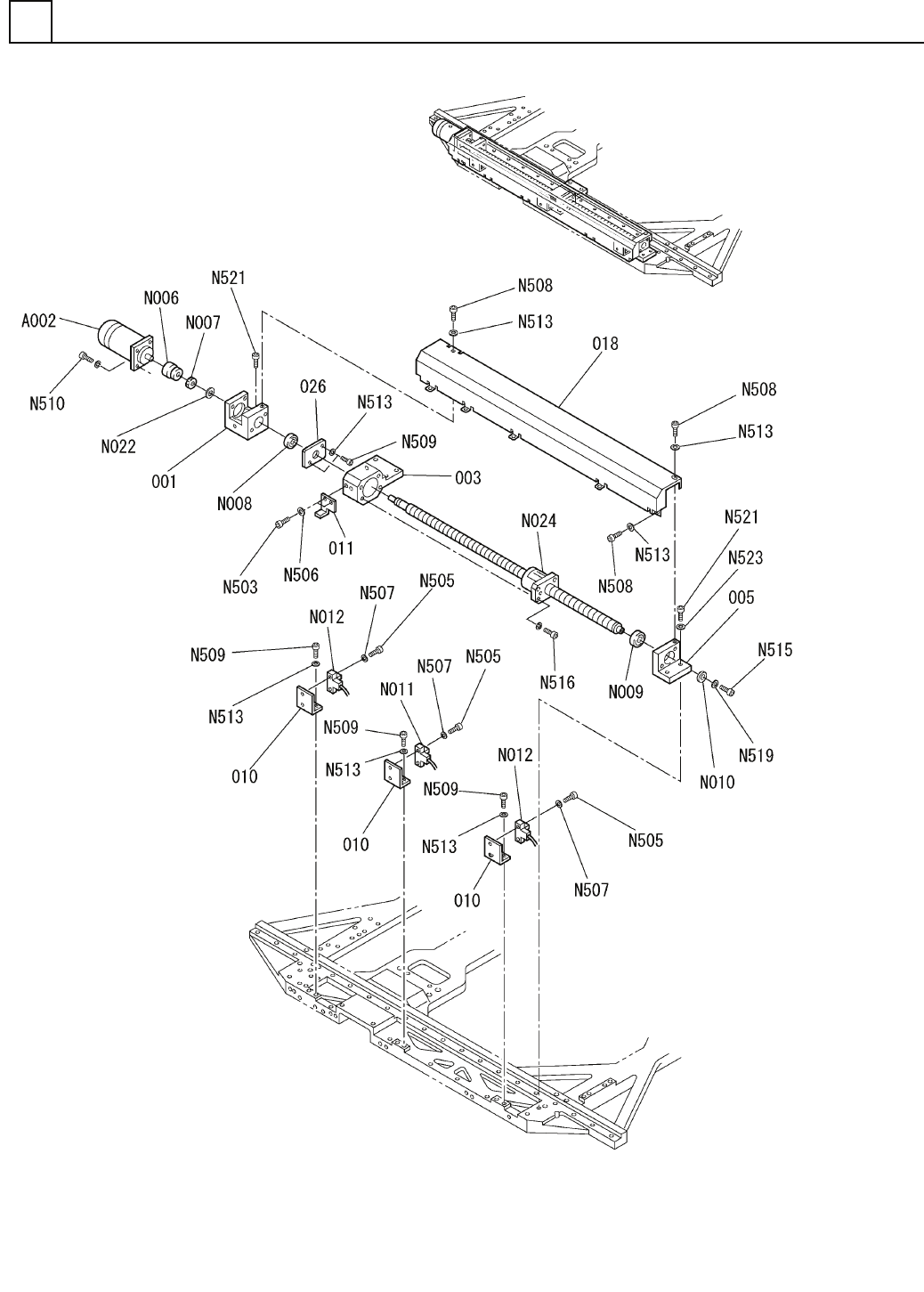

X-Yﾃｰﾌﾞﾙ部(X軸駆動部)
X-Y TABLE SECT.(X-AXIS DRIVING SECT.)
4
FN610055746AA_08-1
M23
