部品手册1N7203A389B - 第78页

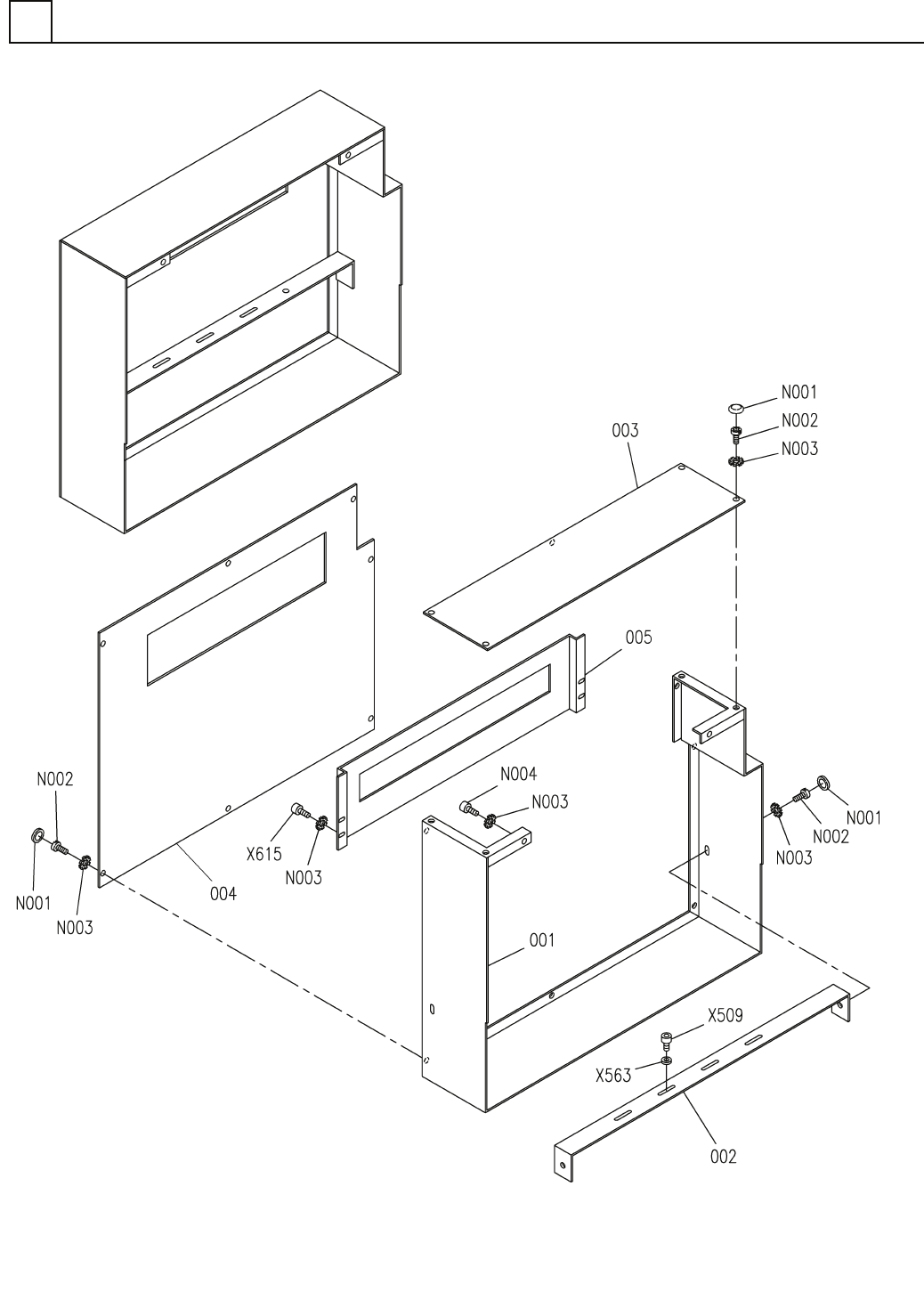

ﾛｰﾀﾞ･ｱﾝﾛｰﾀﾞ 部(ｱﾝﾛｰ ﾀﾞｶﾊﾞｰ部) LOADER & UN LOADER SE CT.(UNLOADER COVER SEC T.) 5 FN610128962AA_04 M47
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
5
ﾛｰﾀﾞ･ｱﾝﾛｰﾀﾞ部(ﾛｰﾀﾞｶﾊﾞｰ部)
LOADER & UNLOADER SECT.(LOADER COVER SECT.)
部 品 名 品 番 個数
備 考
R
1
R
2
1 N610128961AA
LOADER COVER UNIT ﾛｰﾀ
ﾞｶﾊﾞｰﾕﾆｯﾄ
1
001 N210149551AC
BRACKET ﾌﾞﾗｹｯﾄ
1
002 N210149552AF
COVER ｶﾊﾞｰ
1003 N210149713AF
COVER ｶﾊ
ﾞｰ
1004 N210149717AG
COVER ｶﾊ
ﾞｰ
1
005 N210152244AD
COVER ｶﾊﾞｰ
M5X12
13
N001
N986YYYY-814
CAP ｷｬｯﾌﾟ
JB-A M5X8 +
13
N002
N510038044AA
BOLT ﾎ
ﾞﾙﾄ
5 External toothed St
19
N003
N510018765AA
TOOTHED LOCK WASHER ﾊﾂｷｻ
ﾞｶﾞﾈ
M5X8-4.8 A2J (Trivale
2
N004
N510018302AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
M5X16-10.9 A2J (Triva
4
X509
N510017395AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
5 10H A2J (Trivalent)
4
X563
N510018499AA
ROUND PLAIN WASHER ﾐｶﾞ
ｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M4X8-10.9 A2J (Trival
4
X615
N510017381AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M46
FN610128961AA_04
ﾛｰﾀﾞ･ｱﾝﾛｰﾀﾞ部(ｱﾝﾛｰﾀﾞｶﾊﾞｰ部)
LOADER & UNLOADER SECT.(UNLOADER COVER SECT.)
5
FN610128962AA_04
M47
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
5
ﾛｰﾀﾞ･ｱﾝﾛｰﾀﾞ部(ｱﾝﾛｰﾀﾞｶﾊﾞｰ部)
LOADER & UNLOADER SECT.(UNLOADER COVER SECT.)
部 品 名 品 番 個数
備 考
R
1
R
2
1 N610128962AA
UNLOADER COVER UNIT ｱﾝﾛｰﾀ
ﾞｶﾊﾞｰﾕﾆｯﾄ
1
001 N210149550AE
COVER ｶﾊﾞｰ
1
002 N210149551AC
BRACKET ﾌﾞﾗｹｯﾄ
1003 N210149552AF
COVER ｶﾊ
ﾞｰ
1004 N210149713AF
COVER ｶﾊ
ﾞｰ
1
005 N210152244AD
COVER ｶﾊﾞｰ
M5X12
13
N001
N986YYYY-814
CAP ｷｬｯﾌﾟ
JB-A M5X8 +
13
N002
N510038044AA
BOLT ﾎ
ﾞﾙﾄ
5 External toothed St
19
N003
N510018765AA
TOOTHED LOCK WASHER ﾊﾂｷｻ
ﾞｶﾞﾈ
M5X8-10.9 A2J (Trival
2
N004
N510017419AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X16-10.9 A2J (Triva
4
X509
N510017395AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
5 10H A2J (Trivalent)
4
X563
N510018499AA
ROUND PLAIN WASHER ﾐｶﾞ
ｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M4X8-10.9 A2J (Trival
4
X615
N510017381AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M48
FN610128962AA_04
