ｶﾊﾞｰ 部（40ｽﾃ ｰｼｮﾝ4 ） COVER SECT. (40 STATI ON-4) 6 FN610125947AA_05-4 M67
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
6
ｶﾊﾞｰ部（40ｽﾃｰｼｮﾝ3）
COVER SECT.(40 STATION-3)
部 品 名 品 番 個数
備 考
R
1
R
2
S
1
A003
N610116799AA
COVER ｶﾊ
ﾞｰ
2
008 N210096518AA
BRACKET ﾌﾞﾗｹｯﾄ
1
013 N210151389AC
PLATE ﾌﾟﾚｰﾄ
3014 N210148431AA
BRACKET ﾌ
ﾞﾗｹｯﾄ
1016 N210091972AA
BRACKET ﾌﾞﾗｹｯﾄ
1
018 N210154781AA
BRACKET ﾌﾞﾗｹｯﾄ
1
019 N210090977AA
PLATE ﾌﾟﾚｰﾄ
4715KL-05W-B29-P53
2
N007
N510035075AA
FAN WITH MOTOR ﾌｧﾝ
PG-47-02(8130)
4
N008
N238PG47-091
COVER(FAN) ｶﾊﾞｰ
(ﾌｧﾝ)
N510013514AA S
1
N020
N510013514AA
TERMINAL ﾀｰﾐﾅﾙ
M4X8, STEEL, P.C
8
N021
XYN4+J8FN
PAN HEAD M/C SCREW & W. ｻﾞｶﾞﾈｸﾐｺﾐﾅﾍﾞｺﾈｼﾞ
M5X12-10.9 A2J (Triva
3
X508
N510017390AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
4 10H A2J (Trivalent)
38
X562
N510018497AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
5 10H A2J (Trivalent)
27
X563
N510018499AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M5
3
X573
N510020100AA
WASHER ｻﾞｶﾞﾈ
M4-6H-4T A2J (Trivale
16
X592
N510017855AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M4X8-10.9 A2J (Trival
2
X615
N510017381AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X12-10.9 A2J (Triva
16
X616
N510017346AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X10-10.9 A2J (Triva
27
X622
N510017386AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M66
FN610125947AA_05-3

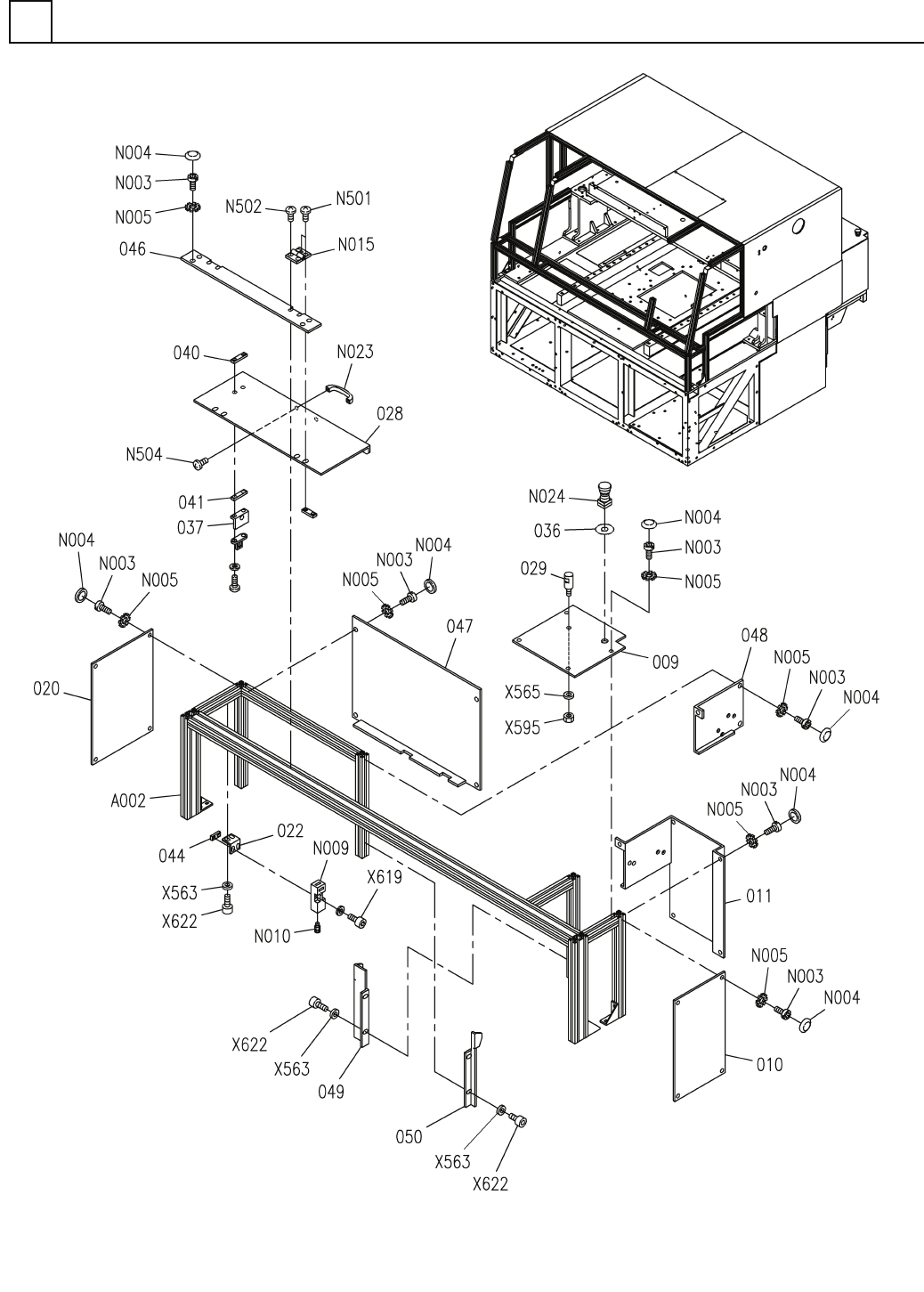

ｶﾊﾞｰ部（40ｽﾃｰｼｮﾝ4）
COVER SECT.(40 STATION-4)
6
FN610125947AA_05-4
M67
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
6
ｶﾊﾞｰ部（40ｽﾃｰｼｮﾝ4）
COVER SECT.(40 STATION-4)
部 品 名 品 番 個数
備 考
R
1
R
2
1
A002
N610126213AA
FRAME ﾌﾚｰﾑ
1
009 N210148439AB
COVER ｶﾊﾞｰ
1
010 N210148437AA
COVER ｶﾊﾞｰ
1011 N210148438AB
COVER ｶﾊ
ﾞｰ
1020 N210148440AA
COVER ｶﾊ
ﾞｰ
1
022 N210157419AA
BRACKET ﾌﾞﾗｹｯﾄ
S
1
028 N210148435AE
COVER ｶﾊﾞｰ
1029 N210149172AB
ROD ﾛｯﾄ
ﾞ
1036 3086239031
LABEL ﾗﾍ
ﾞﾙ
1
037 N210153696AC
BRACKET ﾌﾞﾗｹｯﾄ
1040 N210153695AA
NUT PLATE ﾅｯﾄﾌﾟﾚｰﾄ
1041 N210153693AA
SPACER ｽﾍ
ﾟｰｻ
1
044 1087105805
BRACKET ﾌﾞﾗｹｯﾄ
1
046 N210148441AD
COVER ｶﾊﾞｰ
1047 N210156019AA
COVER ｶﾊﾞｰ
1048 N210156020AB
COVER ｶﾊ
ﾞｰ
1
049 N210157228AA
COVER ｶﾊﾞｰ
1
050 N210157230AA
COVER ｶﾊﾞｰ
JB-A M5X8 +
28
N003
N510038044AA
BOLT ﾎﾞﾙﾄ
M5X12
28
N004
N986YYYY-814
CAP ｷｬｯﾌ
ﾟ
5 External toothed St
28
N005
N510018765AA
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
HS5D-02RNP S
1
N009
N510056987AA
SWITCH ｽｲｯﾁ
53015030-WM
1
N010
KXF06F4AA00
JOINT ｼ
ﾞｮｲﾝﾄ
TH-125-2
2
N015
N510059870AA
HINGE ﾁｮｳﾊ
ﾞﾝ
AP-2(black)
1
N023
KXF08CUAA00
DRAWER PULL ﾄｯﾃ
XW1E-BV402MFR-TK2377 S
1
N024
N510011524AA
SWITCH ｽｲｯﾁ
5 10H A2J (Trivalent)
6
X563
N510018499AA
ROUND PLAIN WASHER ﾐｶﾞ
ｷﾏﾙﾋﾗｻﾞｶﾞﾈ
8 10H A2J (Trivalent)
1
X565
N510018503AA
WASHER ﾋﾗｻﾞｶﾞﾈ
M8-6H-4T A2J (Trivale
1
X595
N510017879AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M4X30-10.9 A2J (Triva
2
X619
N510017361AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X10-10.9 A2J (Triva
6
X622
N510017386AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M4X8-4.8 A2J (Trivale
6
N501
N510018282AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
M4X12-4.8 A2J (Trival
4
N502
N510018259AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
M6X10-4.8 A2J (Trival
2
N504
N510018304AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
M68
FN610125947AA_05-4
