KHY_FES24-SS_PL
P AR TS LIST FES24SS KHY -FES-0902(PL) 24-Feeder Batch Replacement Carriage
Contents
1 Carrige Section(12P)
Carrige Feeder Plate 1 .........................................1-1
Carrige Feeder Plate 2 .........................................1-2
Carrige Assy .........................................................1-3
Carrige Reel Holder Assy .....................................1-4
2 Clamp Unit Section(12P)
Clamp Unit ............................................................2-1
3 Carrige Section(16P)
Carrige Feeder Plate 1 .........................................3-1
Carrige Feeder Plate 2 .........................................3-2
Carrige Assy .........................................................3-3
Carrige Reel Holder Assy .....................................3-4
4 Clamp Unit Section(16P)
Clamp Unit 1. ........................................................4-1
Clamp Unit 2. ........................................................4-2
5 One Stop Cover Section
One Stop Cover Assy(12P) ..................................5-1
One Stop Cover Assy(16P) ..................................5-2
1
1

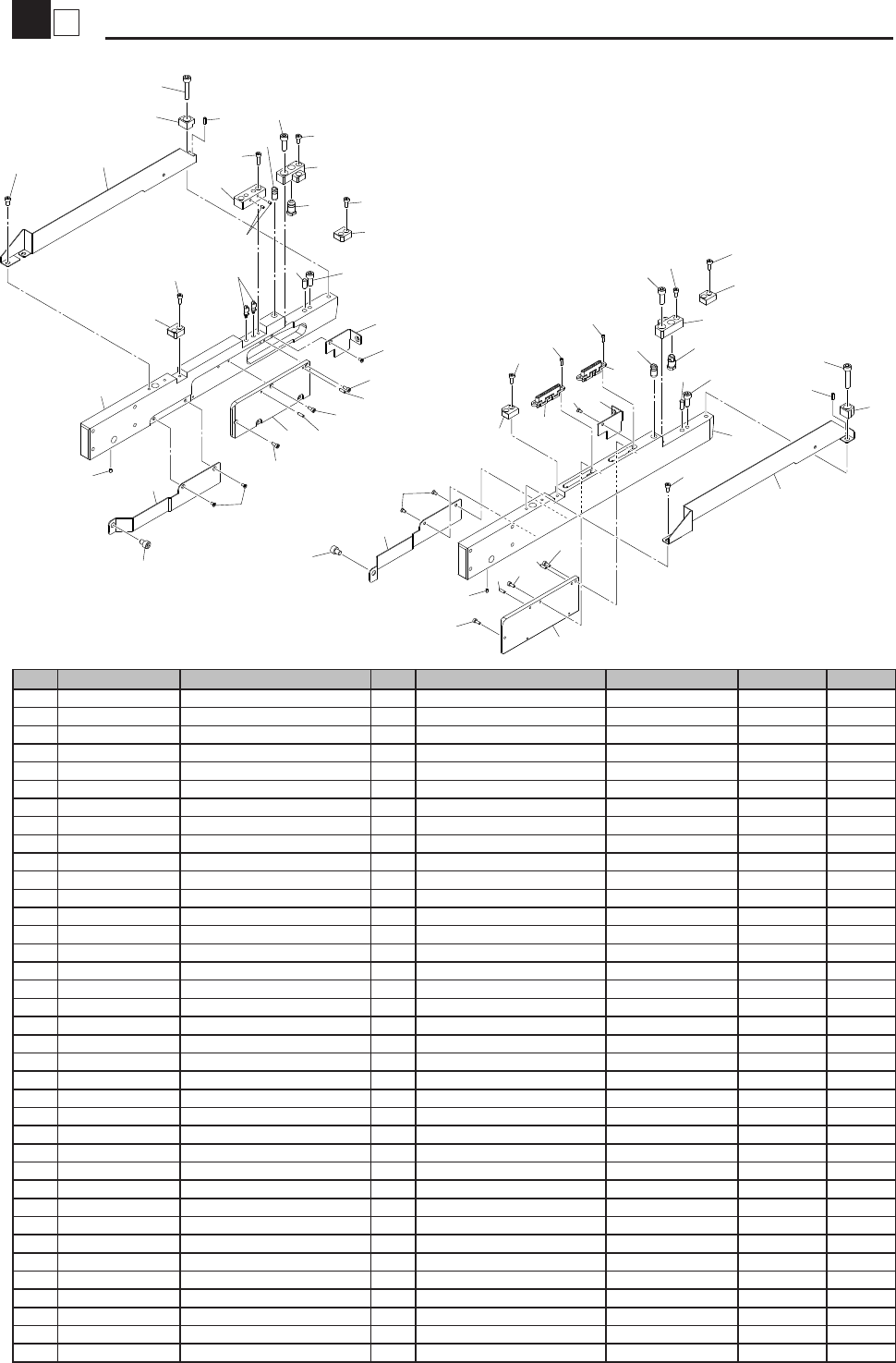

Carrige Feeder Plate 1
Carrige
KHY-0804
25
17
30
6
35
25
29
10
9
7
26
3
21
28
12
32
26
21
8
5
25
1
18
4
28
30
35
31
10
23
23
26
21
20
19
11
32
25
29
24
36
24
3614
24
31
26
2
16
15
34
27
27
32
32
34
24
24
24
13
36
36
21
22
33
37
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHY-M3712-01 MAIN ARM,R 1
2 KHY-M3713-01 MAIN ARM,L 1
3 KHY-M3714-01 LOCATING PIN,A 1
4 KHY-M3715-01 LOCATING PIN,B 1
5 KHY-M3716-00 GUIDE BLOCK,R 1
6 KHY-M3717-00 GUIDE BLOCK,L 1
7 KHY-M3718-00 ADJUSTER BLOCK,A 1
8 KHY-M3718-10 ADJUSTER BLOCK,B 1
9 KHY-M3719-00 ADJUSTER BLOCK,C 1
10 KHY-M371P-00 LOCATING PIN,C 2
11 KHY-M3726-00 COVER,ARM R-1 1
12 KHY-M3727-00 COVER,ARM L-1 1
13 KHY-M372C-00 PLATE,SIDE R 1
14 KHY-M372D-00 PALTE,SIDE L 1
15 KHY-M372F-00 COVER,ARM R-2 1
16 KHY-M372G-00 COVER,ARM L-2 1
17 KHY-M3756-00 ARM COVER 3-L 1
18 KHY-M3757-00 ARM COVER 3-R 1
19 KHY-M66R4-00 HNS,FES.CUNET 1
20 KHY-M66R5-00 HNS,FES.PWR 1
21 KV8-M3718-00 PAD 4
22 KV8-M3719-00 AIR JOINT 2
23 90112-2AJ008 BOLT HEX.SOCKET HEAD 2
24 91312-03008 BOLT HEX.SOCKET HEAD 6 M3X8
25 91312-04008 BOLT HEX.SOCKET HEAD 8 M4X8
26 91312-04010 BOLT HEX.SOCKET HEAD 8 M4X10
27 91312-06008 BOLT HEX.SOCKET HEAD 2 M6X8
28 91312-06014 BOLT HEX.SOCKET HEAD 2 M6X14
29 91312-06018 BOLT HEX.SOCKET HEAD 2 M6X18
30 91312-06030 BOLT HEX.SOCKET HEAD 2 M6X30
31 99480-06014 PIN,PARALLEL 2
32 98702-03006 SCREW FLAT HEAD 10
33 92A08-03305 SCREW,SET 2
34 92A08-05306 SCREW,SET 2
35 91609-30010 PIN,SPRING 2
36 99480-03010 PIN,PARALLEL 4
37 91312-04014 BOLT HEX.SOCKET HEAD 2 M4X14
