KHY_FES24-SS_PL - 第3页
1 1 Carrige Feeder Plate 1 Carrige KHY -0804 25 17 30 6 35 25 29 10 9 7 26 3 21 28 12 32 26 21 8 5 25 1 18 4 28 30 35 31 10 23 23 26 21 20 19 1 1 32 25 29 24 36 24 36 14 24 31 26 2 16 15 34 27 27 32 32 34 24 24 24 13 36 …
Contents
1 Carrige Section(12P)
Carrige Feeder Plate 1 .........................................1-1
Carrige Feeder Plate 2 .........................................1-2
Carrige Assy .........................................................1-3
Carrige Reel Holder Assy .....................................1-4
2 Clamp Unit Section(12P)
Clamp Unit ............................................................2-1
3 Carrige Section(16P)
Carrige Feeder Plate 1 .........................................3-1
Carrige Feeder Plate 2 .........................................3-2
Carrige Assy .........................................................3-3
Carrige Reel Holder Assy .....................................3-4
4 Clamp Unit Section(16P)
Clamp Unit 1. ........................................................4-1
Clamp Unit 2. ........................................................4-2
5 One Stop Cover Section
One Stop Cover Assy(12P) ..................................5-1
One Stop Cover Assy(16P) ..................................5-2
1
1
Carrige Feeder Plate 1
Carrige
KHY-0804
25
17
30
6
35
25
29
10
9
7
26
3
21
28
12
32
26
21
8
5
25
1
18
4
28
30
35
31
10
23
23
26
21
20
19
11
32
25
29
24
36
24
3614
24
31
26
2
16
15
34
27
27
32
32
34
24
24
24
13
36
36
21
22
33
37
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHY-M3712-01 MAIN ARM,R 1
2 KHY-M3713-01 MAIN ARM,L 1
3 KHY-M3714-01 LOCATING PIN,A 1
4 KHY-M3715-01 LOCATING PIN,B 1
5 KHY-M3716-00 GUIDE BLOCK,R 1
6 KHY-M3717-00 GUIDE BLOCK,L 1
7 KHY-M3718-00 ADJUSTER BLOCK,A 1
8 KHY-M3718-10 ADJUSTER BLOCK,B 1
9 KHY-M3719-00 ADJUSTER BLOCK,C 1
10 KHY-M371P-00 LOCATING PIN,C 2
11 KHY-M3726-00 COVER,ARM R-1 1
12 KHY-M3727-00 COVER,ARM L-1 1
13 KHY-M372C-00 PLATE,SIDE R 1
14 KHY-M372D-00 PALTE,SIDE L 1
15 KHY-M372F-00 COVER,ARM R-2 1
16 KHY-M372G-00 COVER,ARM L-2 1
17 KHY-M3756-00 ARM COVER 3-L 1
18 KHY-M3757-00 ARM COVER 3-R 1
19 KHY-M66R4-00 HNS,FES.CUNET 1
20 KHY-M66R5-00 HNS,FES.PWR 1
21 KV8-M3718-00 PAD 4
22 KV8-M3719-00 AIR JOINT 2
23 90112-2AJ008 BOLT HEX.SOCKET HEAD 2
24 91312-03008 BOLT HEX.SOCKET HEAD 6 M3X8
25 91312-04008 BOLT HEX.SOCKET HEAD 8 M4X8
26 91312-04010 BOLT HEX.SOCKET HEAD 8 M4X10
27 91312-06008 BOLT HEX.SOCKET HEAD 2 M6X8
28 91312-06014 BOLT HEX.SOCKET HEAD 2 M6X14
29 91312-06018 BOLT HEX.SOCKET HEAD 2 M6X18
30 91312-06030 BOLT HEX.SOCKET HEAD 2 M6X30
31 99480-06014 PIN,PARALLEL 2
32 98702-03006 SCREW FLAT HEAD 10
33 92A08-03305 SCREW,SET 2
34 92A08-05306 SCREW,SET 2
35 91609-30010 PIN,SPRING 2
36 99480-03010 PIN,PARALLEL 4
37 91312-04014 BOLT HEX.SOCKET HEAD 2 M4X14
2
1

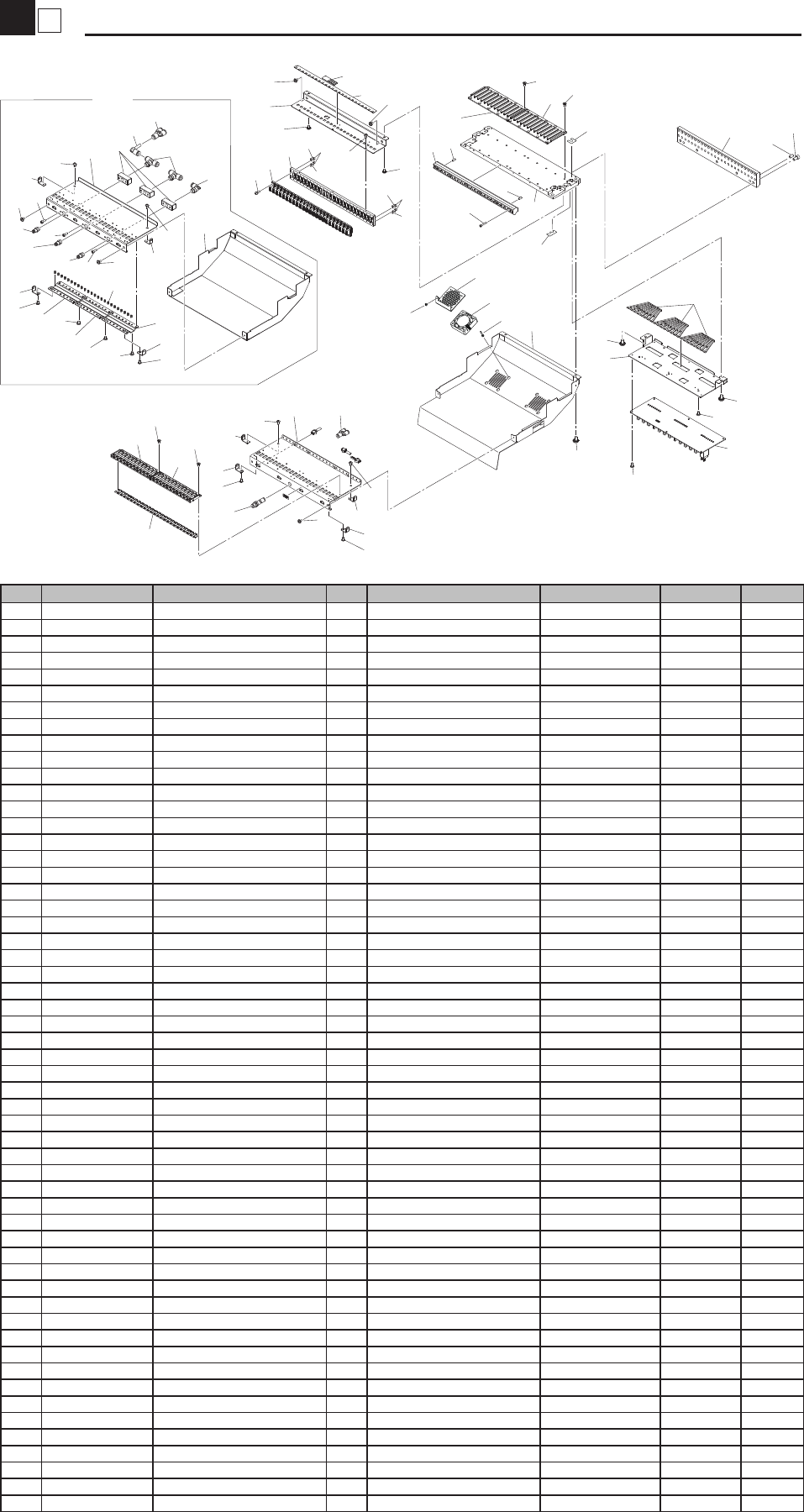

Carrige Feeder Plate 2
Carrige
KHY-1011
35
45
2
20
40
7
7
5
40
38
39
12
11
33
43
43
43
34
43
33
13
21
10
31
11
31
8
47
12
40
9
40
40
3
44
6
42
44
1
31
19
18
40
40
15
14
31
12
31
46
31
40
22
25
24
42
41
41
12
16
11
29
28
27
23
26
31
11
31
8
40
30
32
30
32
30
32
40
17
37
31
37
37
17
17
6
15
OLD
49
48
34
38
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHY-M3711-01 FEEDER PLATE 1
2 KHY-M371A-01 PLATE,FRONT 1
3 KHY-M371B-00 SHAFT GUIDE 1
4
5 KHY-M371K-00 BRACKET,BOARD 1
6 KHY-M371R-00 RAIL GUIDE 12P 2
7 KHY-M3723-00 MAIN COVER 1
7-1 KHY-M3723-01 MAIN COVER 1 (2008/5/29) ME50165 OK
8 KHY-M3724-01 FRONT COVER 1 1
8-1 KHY-M3724-02 FRONT COVER 1 1 (2008/5/29) ME50165 OK
9 KHY-M372A-00 PLATE,IND.1 1
10 KHY-M372B-00 PLATE,CONNECTOR 1
11 KHY-M372E-00 BRKT.,SUPPORT 1 2
12 KHY-M372E-10 BRKT.,SUPPORT 1 2
13 KHY-M372M-00 SCREW,STAD 48
14 KHY-M372P-00 SUPPORT,LEVER 24
15 KHY-M372R-00 GUIDE,FEEDER UNDER 2
16 KHY-M372S-00 SPRING,SUPPORT 24
17 KHY-M372T-00 BRKT.,SUPPORT 2 3
18 KHY-M379J-00 LABEL,FEEDER POSI. 1
19 KHY-M379K-00 LABEL,LED POSI. 1
20 KHY-M37E1-00 LIGHT GUIDE 4
21 KHY-M66TE-00 HNS,F.CTRL - FDR. 24
22 KHY-M4476-01 FDR.CTRL.BOARD ASSY 1
23 KV8-M3725-00 MANIFOLD 3
23-1 Delete (2010/4/7) MG30164
24 KV8-M371S-XX SHIM-1,PLATE SEL. 1
25 KV8-M372S-XX SHIM-2,PLATE SEL. 1
26 $TT6-01 JOINT 2
26-1 Delete (2010/4/7) MG30164
27 $ULA6 JOINT 1
27-1 Delete (2010/4/7) MG30164
28 $UYD6-4 JOINT 1
28-1 Delete (2010/4/7) MG30164
29 $TL6-01 JOINT 1
30 $TSS4-01 JOINT 3
31 90122-03J005 BOLT BUTTON HEAD 7
32 91312-03008 BOLT HEX.SOCKET HEAD 6 M3X8
33 91312-03010 BOLT HEX.SOCKET HEAD 4 M3X10
34 91312-03018 BOLT HEX.SOCKET HEAD 10 M3X18
35 91312-06012 BOLT HEX.SOCKET HEAD 5 M6X12
36
37 98902-03004 SCREW BINDING HEAD 12
38 98902-03005 SCREW BINDING HEAD 5
39 98902-03006 SCREW BINDING HEAD 6
40 90990-12J001 SCREW BIN.HEAD W/W 10
41 98702-03005 SCREW FLAT HEAD 16
42 98702-03006 SCREW FLAT HEAD 20
43 99480-03010 PIN,PARALLEL 4
44 99480-04010 PIN,PARALLEL 2
45 99480-06012 PIN,PARALLEL 2
46 90990-42J047 JOINT 1
47 $UY4 JOINT 1
48 KHY-M6187-00 FAN MOTOR ASSY 2
49 KHY-M372V-00 BRACKET,FAN 2
