Page
SAMSUNG TECHWIN
92
SM471

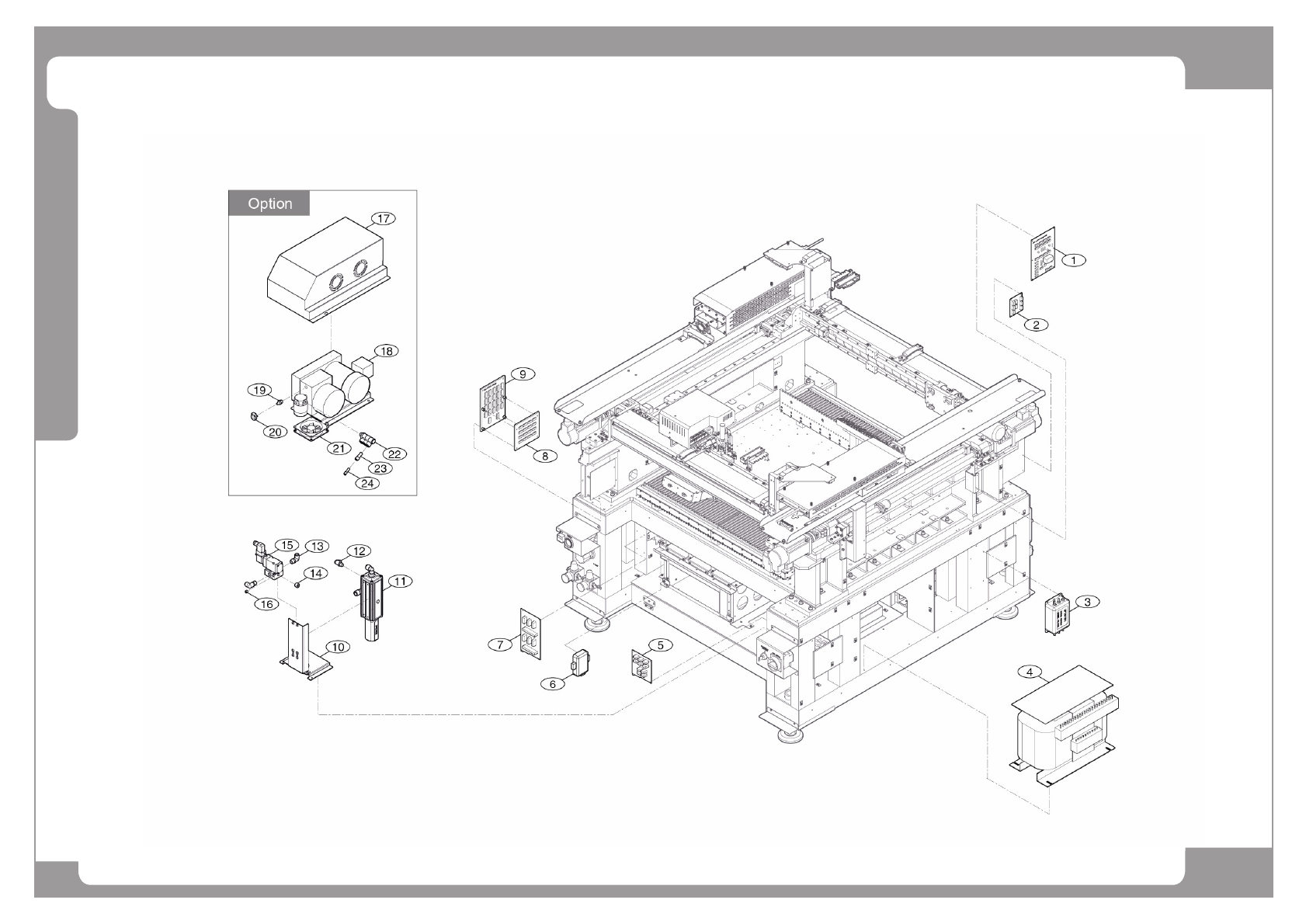

Electric Device Ass’y (2/4)
Page
SAMSUNG TECHWIN
93
SM471
Electric Device Ass’y (2/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-003542A CABLE ASSY INLINE_IN_OUT 1
2 J36031004A MAIN_SW_CANCLE 1
3 J3716070A GV2_AF 1
4 J70521076B POWER_PANEL 1
5 AM03-003573A LAN_PORT 1
6 J7152027A GROUND TERMINAL [J7152027A] 1
7
J52011002A MINI_KEYBOARD 5510UH
2
8
J7452038A MOUSE PAD - OPTICAL[J7452038A]
2
9
CD04-000013 OPTICAL_MOUSE
2
J52021011A
10
J90601023B TEACHING_BOX
1
11
CD06-000004 LCD_MONITOR_15
2 J53011032A
Page
SAMSUNG TECHWIN
94
SM471
Electric Device Ass’y (3/4)
