Page SAMSUNG TECHWIN 7 SM471 F eeder Base Ass’y - DC (1/4) NO. P ART NO. P ART NAME Q'TY Old No. Stock Apply Reference A-1 J9057101 5A FEEDER_BASE_ASS Y_FRONT -DC J90 571015A 1 1 J90 600354B F EEDERBASE_ RIGHT_COVER…
Page
SAMSUNG TECHWIN
6
SM471

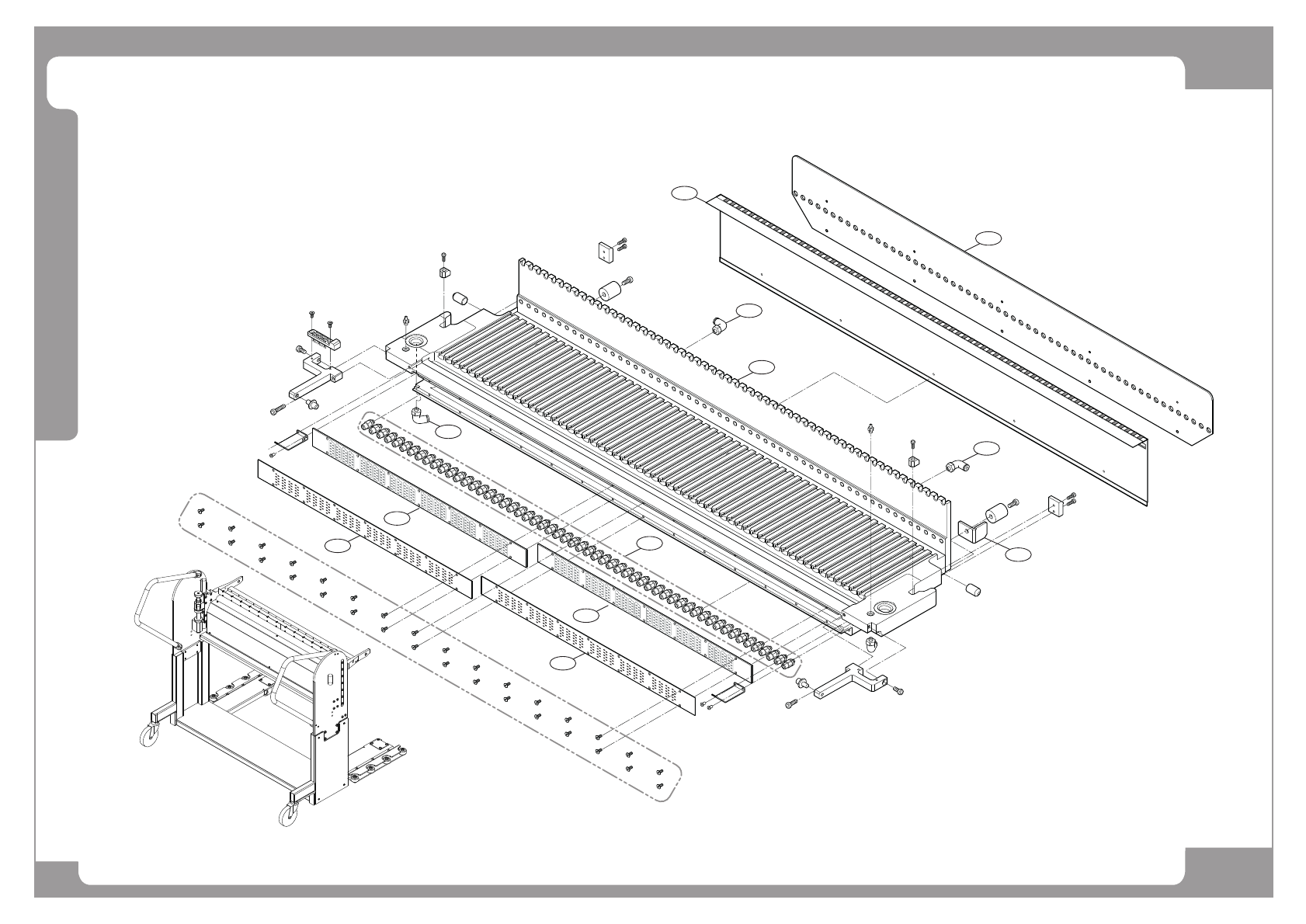

Feeder Base Ass’y - DC (1/4)
4
3
2
1
4
4
5
6
8
9
7
10
Page
SAMSUNG TECHWIN
7
SM471
Feeder Base Ass’y - DC (1/4)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A-1 J90571015A FEEDER_BASE_ASSY_FRONT-DC J90571015A 1
1 J90600354B FEEDERBASE_RIGHT_COVER_PCB_ND 1 J9060354A
2 J90600353B FEEDERBASE_LEFT_COVER_PCB_ND 1 J9060353A
3 J6711256A COUPLER[KD-M5-SA34697KR] 56
4 J1301188 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 4
5 AM03-000696A ASSY,BOARD-FBLD 1 J9060349D
6 AM03-000695A ASSY,BOARD-FBRD 1 J9060350D
7 FC30-001081A TOP PLATE S DCN 1
8 J90571009A DC-FEEDER_BASE_MODULE 1
9 FC09-002060A SME DC BKT 1
10 FC30-001080A TOP PLATE B DCN 1
Page
SAMSUNG TECHWIN
8
SM471
Feeder Base Ass’y - DC (2/4)
4
3
8
7
6
6
6
6
1
2
5
6
9
10
