SM471_TechnicalReference(Eng_Ver1.3) - 第182页
Page SAMSUNG TECHWIN 172 SM471 S afety Control Board Interface (1/4) [1 ] [2 ] [3 ] [4 ] [5 ] [6 ] [7 ]
Page
SAMSUNG TECHWIN
171
SM471
Vision IF Board (2/2)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005547A CABLE ASSY-HD1_FLY_CAM_PW_SYNC 1 SM471-VIS005
2 AM03-005548A CABLE ASSY-FLY_CAM_PWR-SYNC_EXT 1 SM471-VIS006
3 AM03-005550A CABLE ASSY-HEAD1 FLY CAM SIG 1 SM471-VIS008
4 AM03-005551A CABLE ASSY-FLY CAM SIG EXT 1 SM471-VIS009
5 AM03-005549A CABLE ASSY-HEAD2 FLY CAM PWR/SYNC 1 SM471-VIS007
6 AM03-005552A CABLE ASSY-HEAD2 FLY CAM SIG 1 SM471-VIS010
Page
SAMSUNG TECHWIN
172
SM471

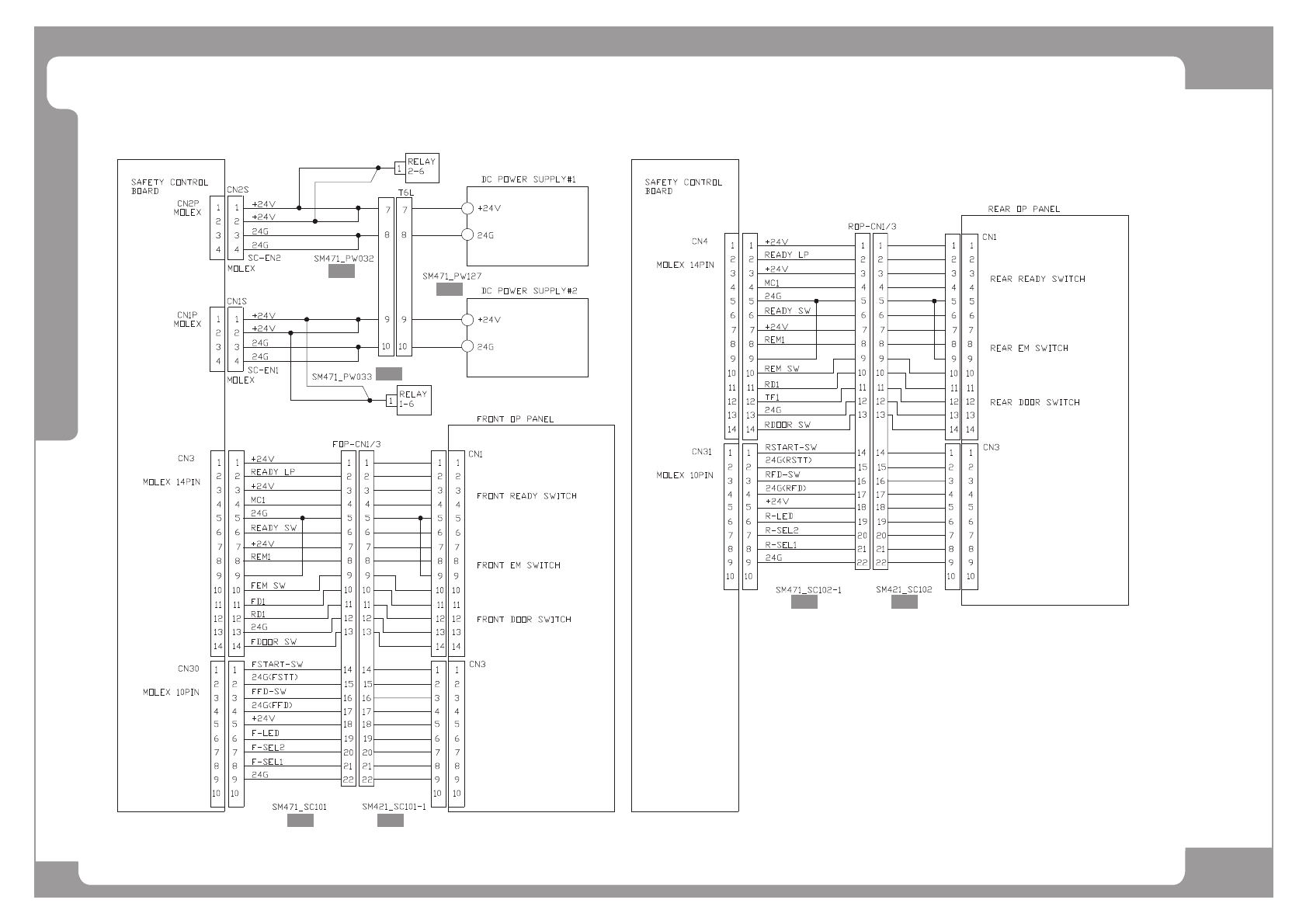

Safety Control Board Interface (1/4)
[1 ]
[2 ]
[3 ]
[4 ] [5 ]
[6 ] [7 ]
Page
SAMSUNG TECHWIN
173
SM471
Safety Control Board Interface (1/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005506A CABLE ASSY-GENERAL_PW_RELAY 1 SM471-PW032
2 AM03-005504A CABLE ASSY-PS1_PS2_SACO_T6L 1 SM471-PW127
3 AM03-005507A CABLE ASSY-FEEDER_PW_RELAY 1 SM471-PW033
4 AM03-005520A CABLE ASSY-F_OP_PANEL_IF 1 SM471-SC101
5 AM03-005521A CABLE ASSY-F_OP_PANEL_IF-EXT 1 SM471-SC101-1
6 AM03-005523A CABLE ASSY-R_OP_PANEL_IF-EXT 1 SM471-SC102-1
7 AM03-005522A CABLE ASSY-R_OP_PANEL_IF 1 SM471-SC102
