MV-9 User Manual
5-112
④ Check at „IC color‟ in IC Bridge inspection, and check at IC color in color inspection.
⑤ Check at pixel ratio in color inspection. For inspection of comparison with average value,
check at IC average ratio inspection+ (%).

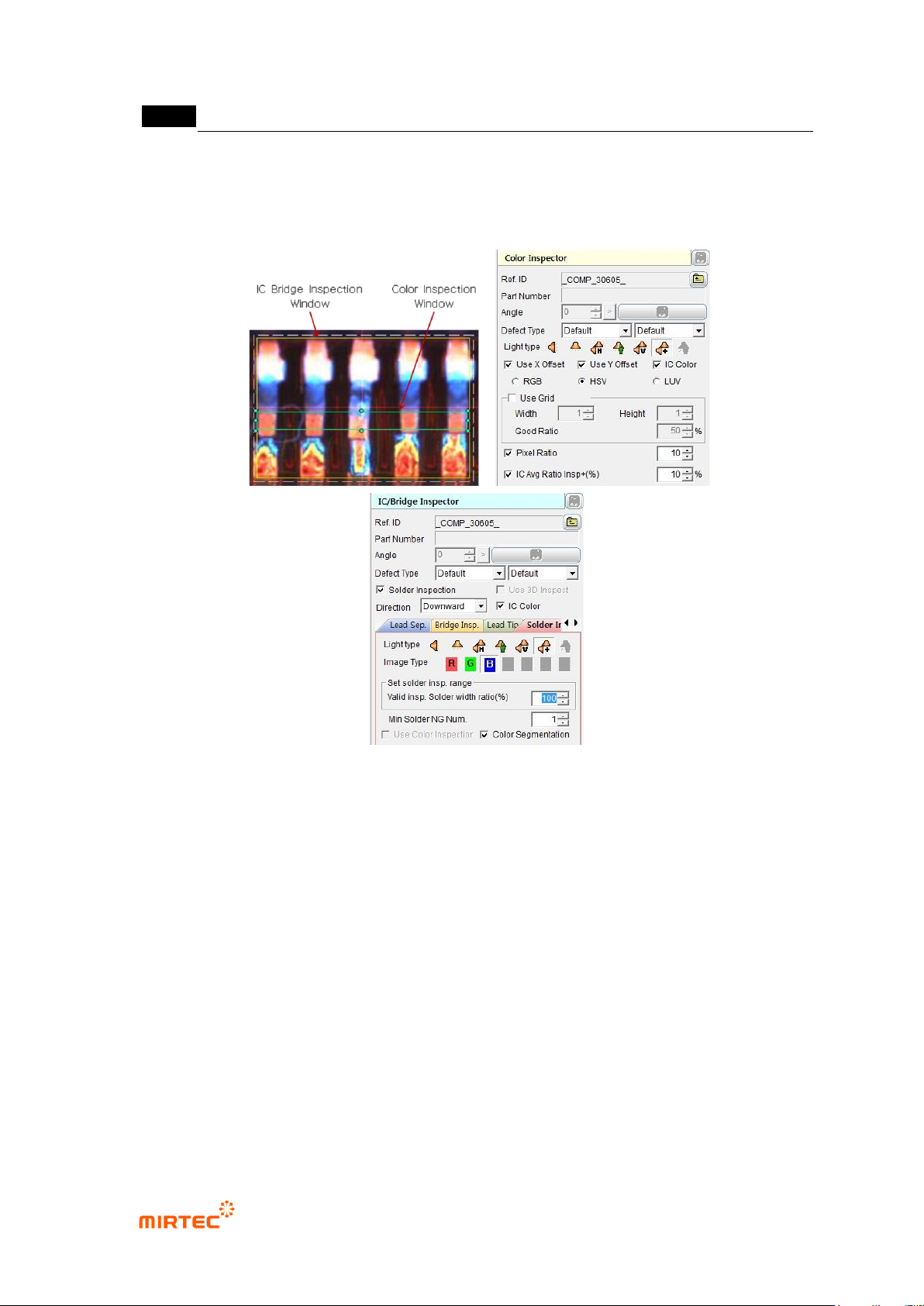

[Figure 5-121 IC color inspection teaching]
7) Example of representative component teaching
Drawing IC Bridge window
Draw window to include all areas in which Bridge can occur.
If the end of window includes package, bridge defect can occur by package area. Hence,
draw from position a little away from package to lead end.
Compensation using compensation window
Inspection position can be out of actual inspection position a little bit due to robot error or
others if real robot is moved during. Hence, add compensation window and group them
into a component for bridge inspection. compensation window finds actual position of
Bridge for compensation of bridge window to increase inspection reliability.
In general, set bridge compensation window at which lead starts at package and use
search range at lead direction for search range in compensation window and use small
错误!使用“开始”选项卡将 제목 2 应用于要在此处显示的文字。错误!使用“开始”选项卡将 제목 2 应用
于要在此处显示的文字。 .
5-113
search range for others. For example, set X-side search range to be large search range
of Y-side search range to be small
For compensation window, use general mounting window. Like bridge, group them into a
component to make compensation window.
Draw small IC component
In case of IC component of which all components get into one frame, draw bridge for
each lead, and set compensation window and group into a component at one edge.
For search range of compensation window, set about 20 of value for both of width and
height.
Draw large IC component
Conduct individual teaching for large IC component by moving frame.
2 4 3 5 A B C
2 4 3 5 A B C

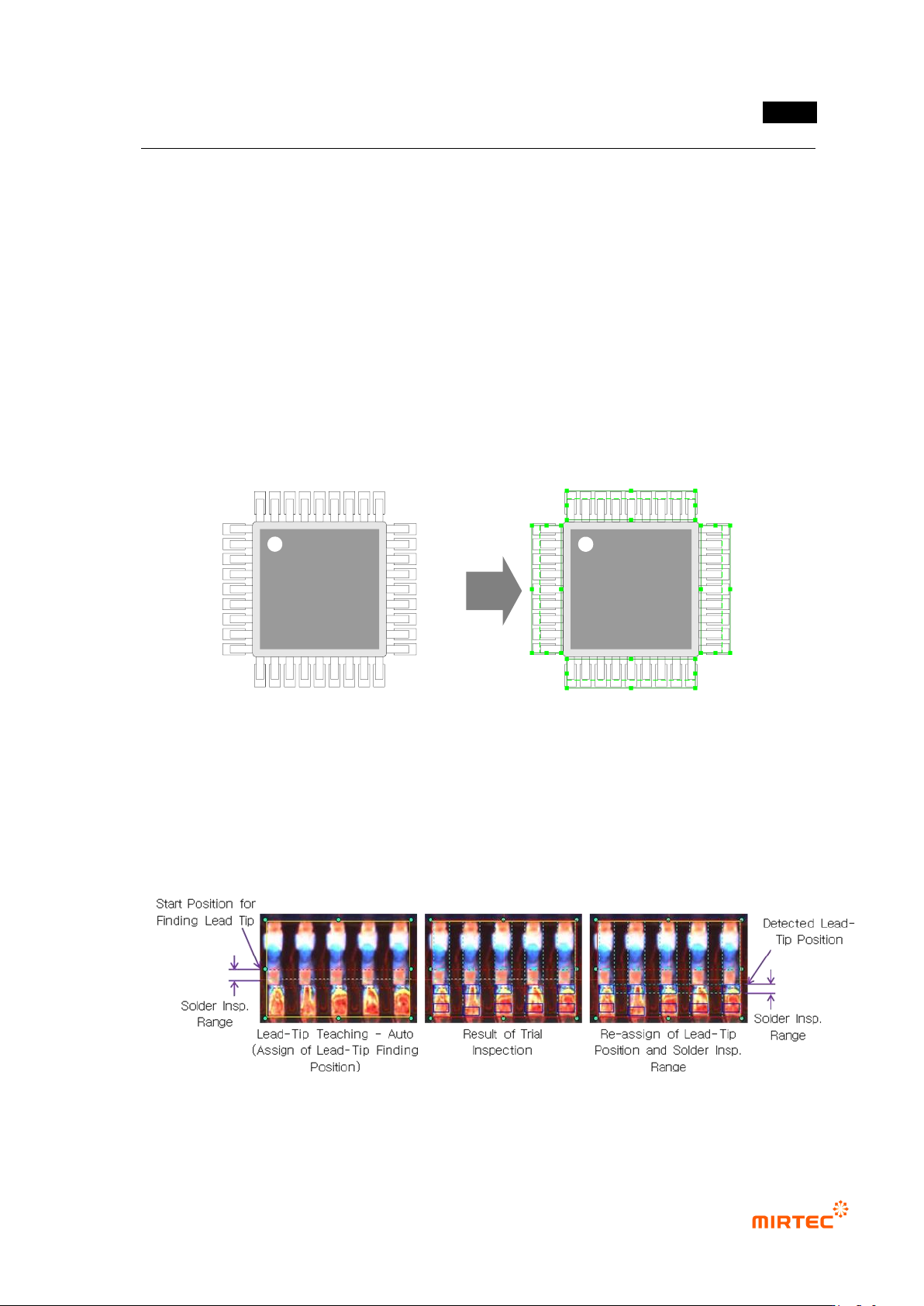

[Figure 5-122 IC component teaching example]
Lead tip display
If lead tip auto search option is set for initial teaching, position of solder inspection width
will be drawn based on lead tip search start position. However, position of solder
inspection width will be displayed based on lead tip position found from manual inspection
more than 1 time.
[Figure 5-123 lead tip auto search]
MV-9 User Manual
5-114

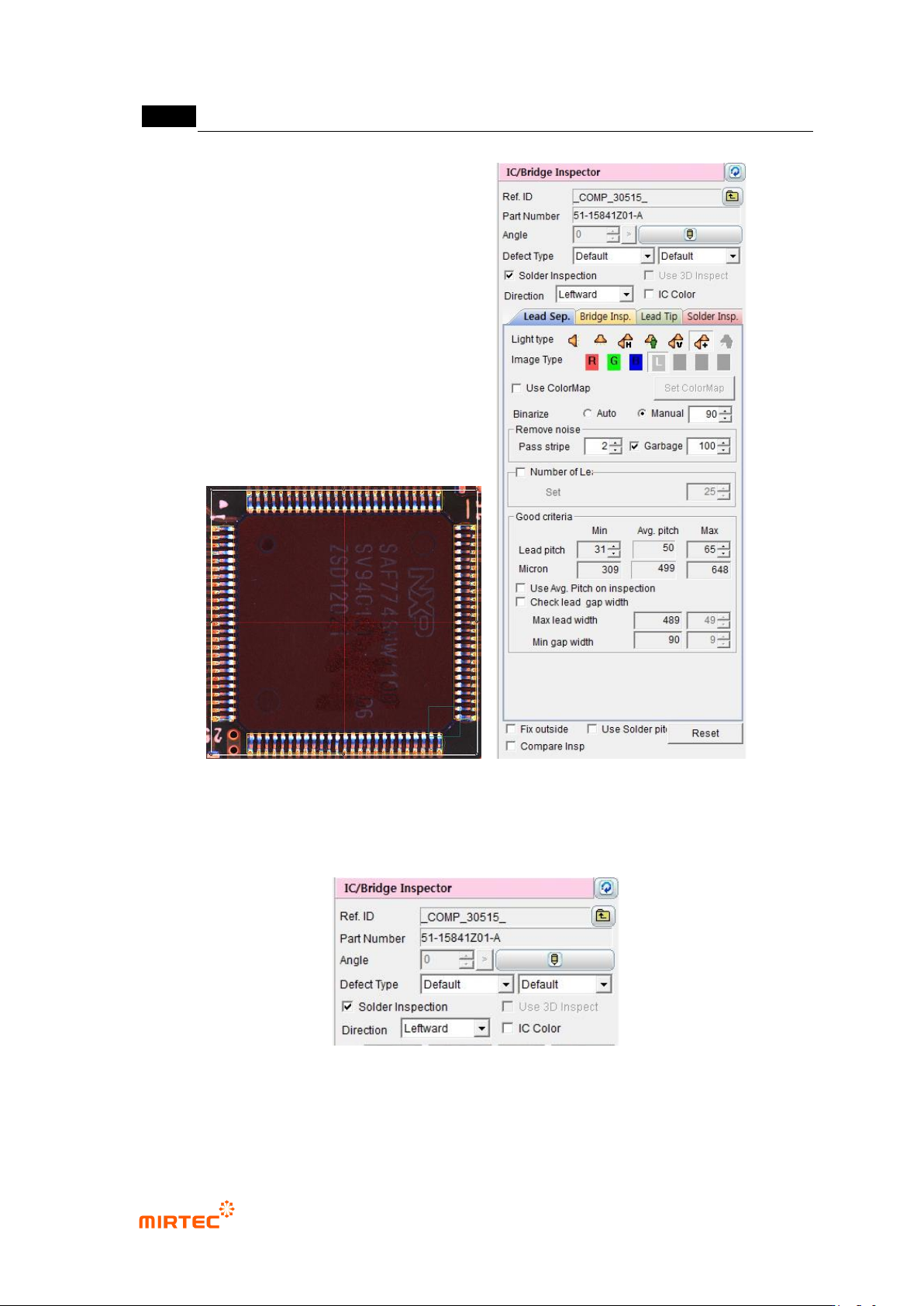

[Figure 5-124 IC inspection window creation screen]
8) Default parameter
[Figure 5-125 IC/Bridge inspection default parameter]
Reference name
Refer to „reference name in „5.3.1Solder amount inspection
