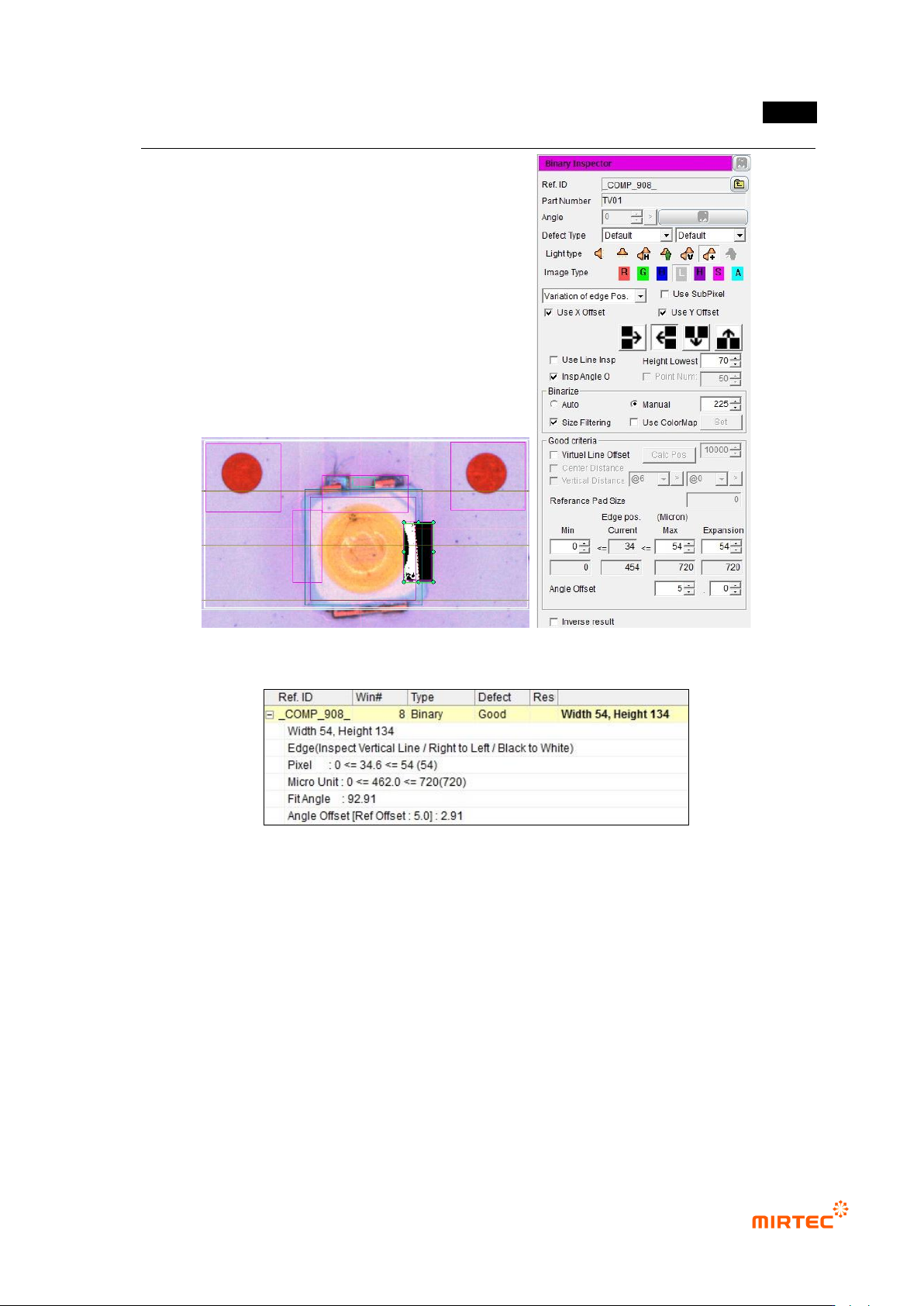

[Figure 5-256 Rotation inspection setting and preview image]
[Figure 5-257 shift inspection result]
5.4.2 Teaching of LED package with no reference point
1) Teaching window
MV-9 User Manual
5-206

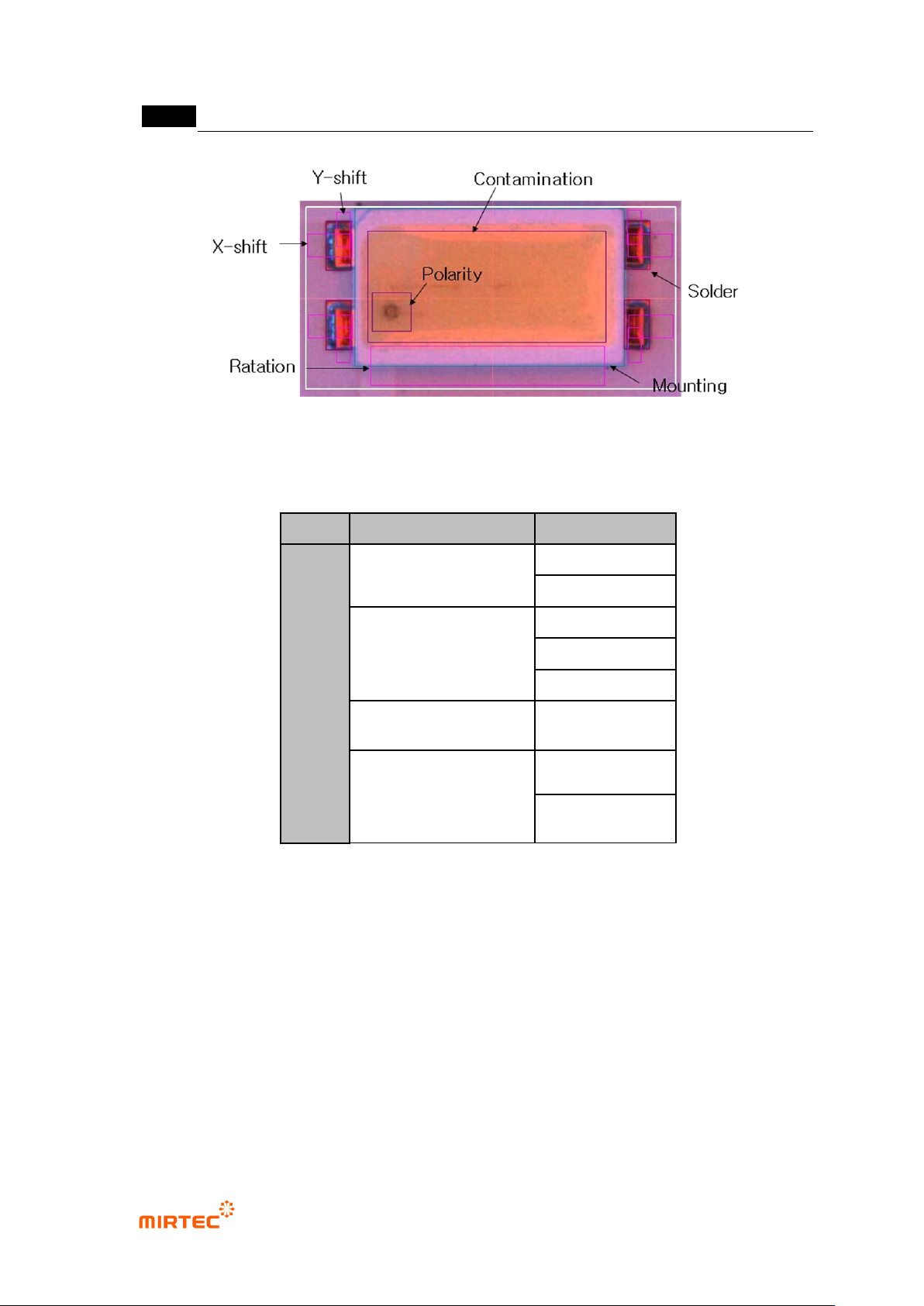

[Figure 5-258 teaching example]
[Table 5-18 Application algorithm for each detection item LED package with no reference
point]
Applied algorithm
Detection item
PKG
mounting inspection
non-mounting
damage
binary inspection-
position move
X shift
Y shift
Rotation
color inspection (solder
inspection)
Polarity
solder inspection
foreign material
Insufficient
solder, no solder
2) Teaching method
① Mounting inspection teaching and setting
- Conduct non-mounting, damage, and turnover inspection through mounting inspection.
- Select color light, and select the clearest image type for image type when R, G, B, L is
changed. Since LED has polarity, check at „polarity‟.
错误!使用“开始”选项卡将 제목 2 应用于要在此处显示的文字。错误!使用“开始”选项卡将 제목 2 应用
于要在此处显示的文字。 .
5-207

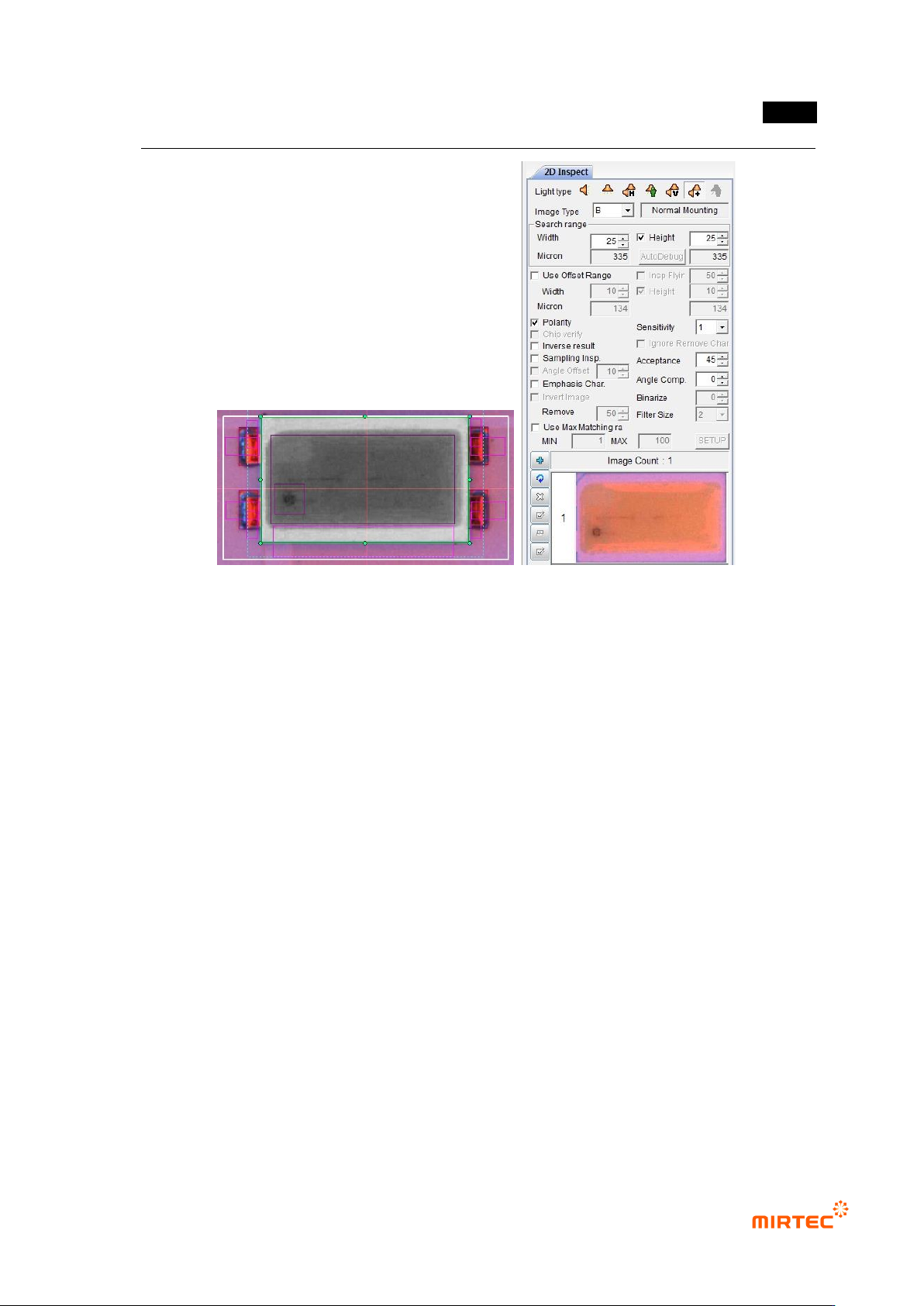

[Figure 5-259 mounting inspection setting and preview image]
② Teaching and setting foreign material inspection (solder inspection)
- Foreign material inspection is to inspect foreign material on the surface of fluorescent
substance. For this purpose, we use solder inspection window.
