68 If “Reset” button is clicked, the Bar No. increases automatically and the LED Position is
initialized.
69 Create 3D BLU Window (part) for all the bars by repeating processes ③ through ⑤.
70 “Auto Frame Generation”
- Select “Auto Frame Generation” by clicking the right mouse button on the full image
window.
- The created 3D BLU Window (part) is automatically taught to all LED‟s while displayed.
MV-9 User Manual
5-282

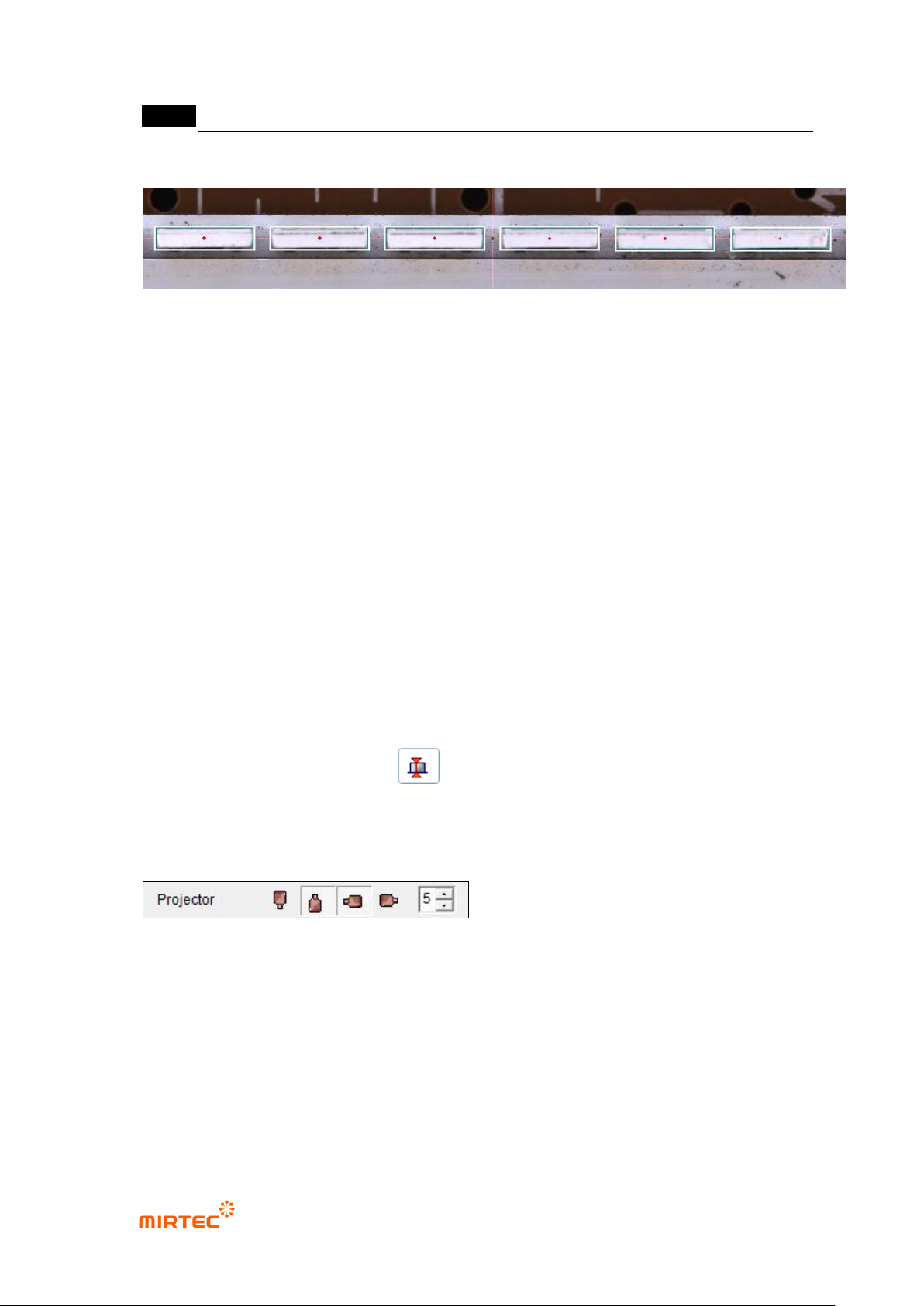

71 Setting of Reference Center Point for LED PKG during Automatic Teaching.
- The Reference Center Point of LED PKG is set during the automatic teaching.
- In case of not using the Marker, use the reference center point generated during the
automatic teaching.
- The reference center point generated during the automatic teaching is marked by a red
circle. (Do not mark in case of using the Marker.).
- In case of not using the Marker, no compensation is made for Bar Bending, which may
cause pseudo poor quality.
5.10 Height Checker
The objective is to inspect the height difference from the reference position.
5.10.1 Selection of Window for Height Inspection
With window button, select the height inspection window and add the window to the inspection
position and the reference position.( ).
5.10.2 Projector Selection
Select the projector to be used in the inspection.
- It is possible to select the east, west, south or north projector. Select the east and
south projector by default.
错误!使用“开始”选项卡将 제목 2 应用于要在此处显示的文字。错误!使用“开始”选项卡将 제목 2 应用
于要在此处显示的文字。 .
5-283

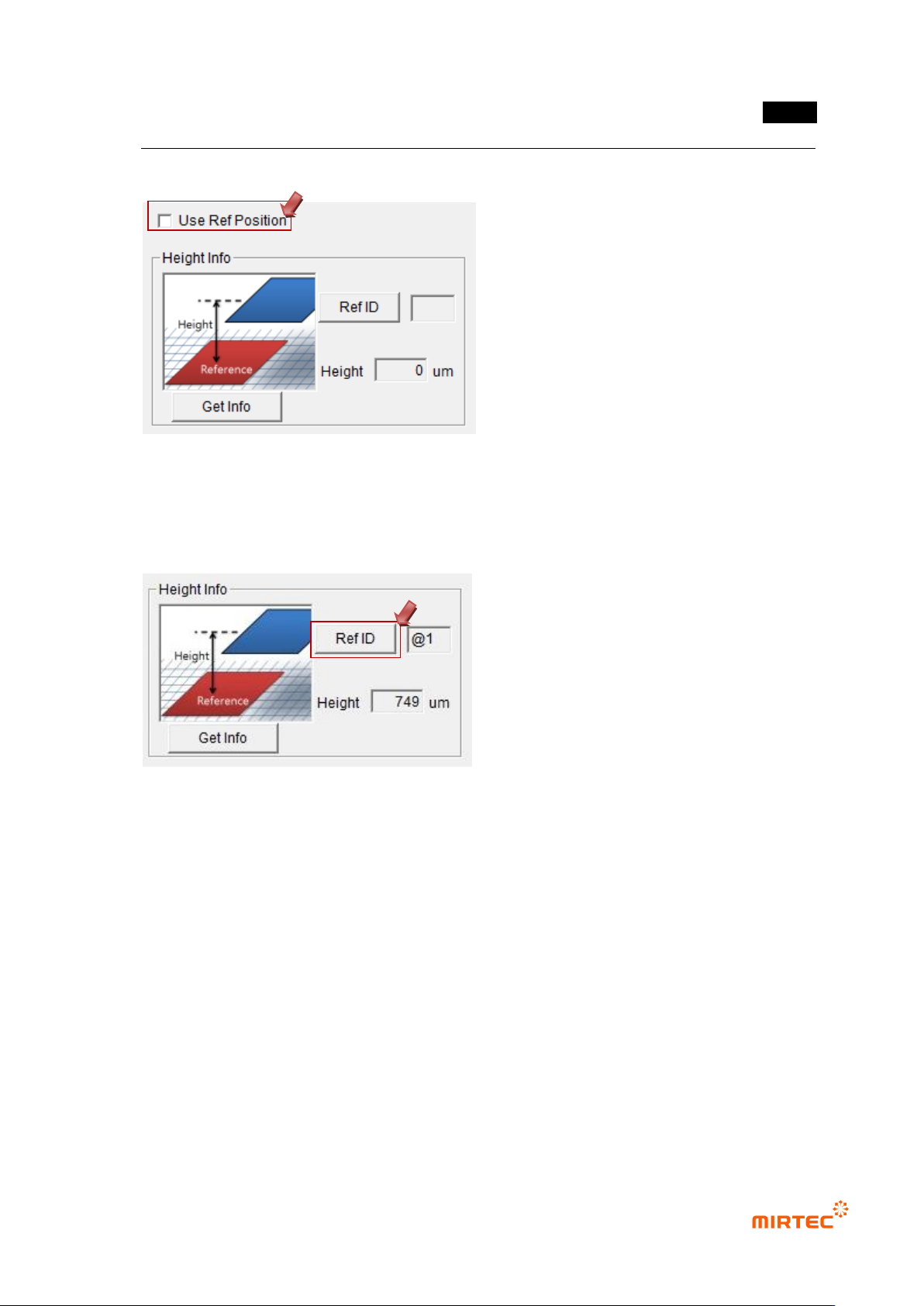

5.10.3 Selection of Reference Position
Select the reference position window and select “Reference Position” on the parameter
window..
5.10.4 Designation of Reference Position
① Select the height inspection window and the reference position window, and tie them
into one part.
② Select the tied part and enter „Edit‟ mode.
③ Select the height inspection window and click “Reference ID” on the parameter
window.
④ Click the reference position window and designate the reference position. .
⑤ The ID of the window designated next to “Reference ID” is displayed.
Example) The window selected in the figure below is the height inspection window and the
