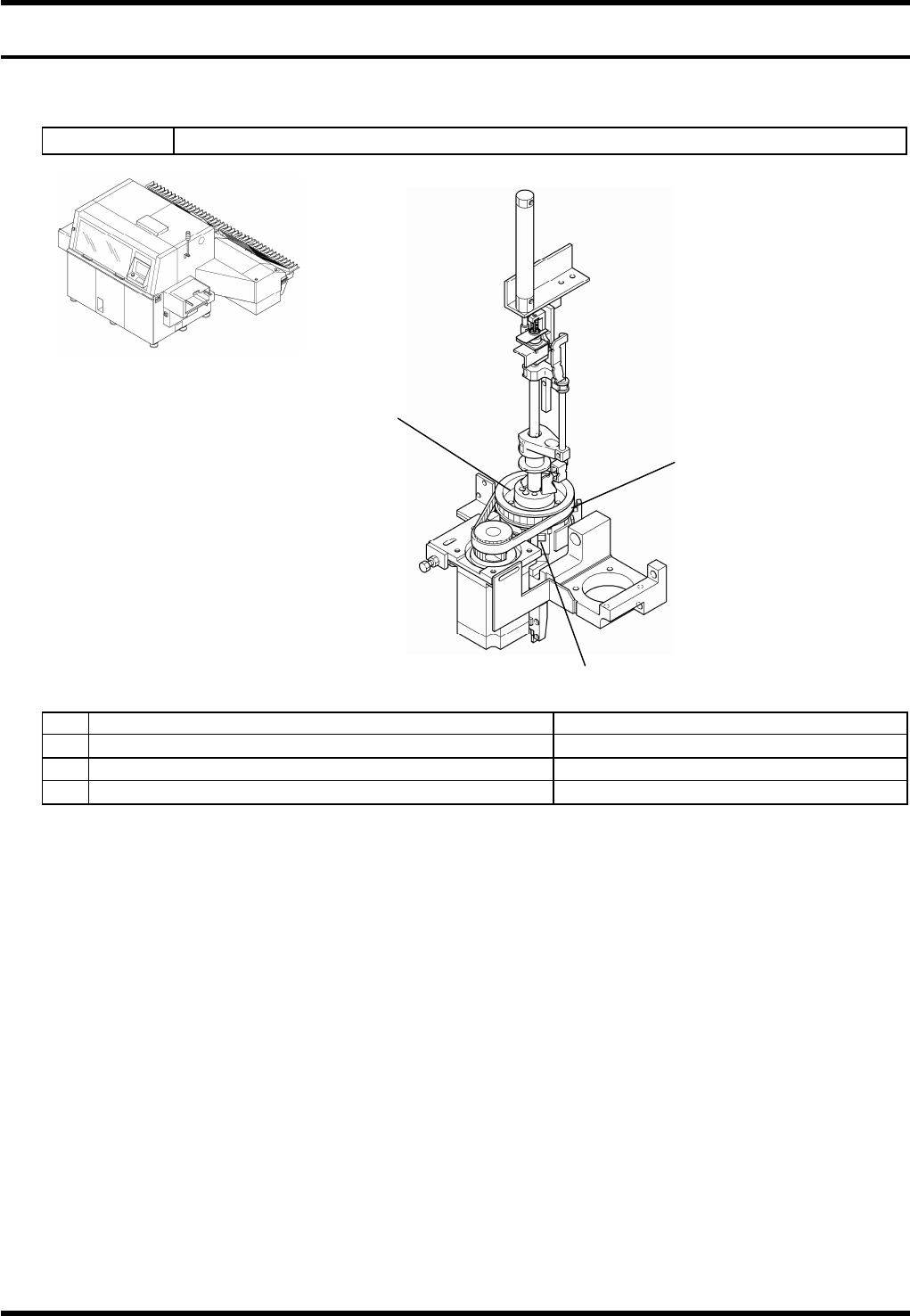

5.1. Insertion Head
DA8MEC-Y1-M00-A0
5.1.1 Insertion Head (qH Axis)
Unit No. N610067465AA
No.
Name Type
1.
qH axis origin detection
EE-SX672A
2.
qH axis (+) safety limit
EE-SX672A
3.
qH axis (-) safety limit
EE-SX672A
3.
2.
1.
RL131
MAINTENANCE MANUAL
5.1 Insertion Head
DA8MEC-Y1-M00-A0
5.1-2
RL131
MAINTENANCE MANUAL
5.2 Transfer Rail
DA8MEC-Y3-000-A0
5.2-1

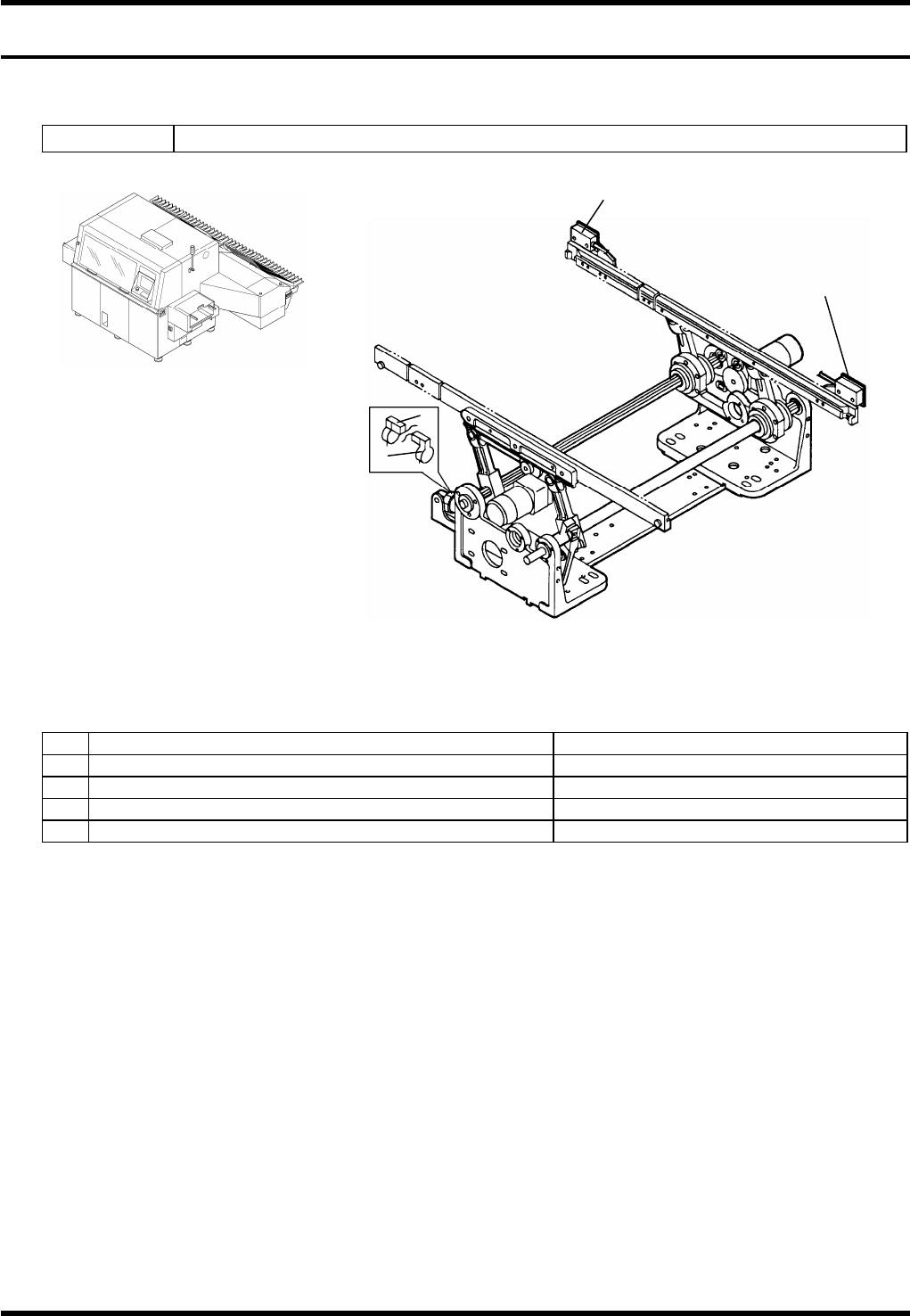

5.2. Transfer Rail
DA8MEC-Y3-000-A0
5.2.1 Transfer Rail
Unit No. N610061299AA
No.
Name Type
1.
PCB presence detection P919T
2.
PCB presence detection P919T
3.
Rail up/down cylinder return detection D-C73
4.
Rail up/down cylinder traverse detection D-C73
1.
2.
3.
4.
