RL1 31 MAINTENANCE MANUAL 5.7 Par t Suppl y Unit DA8ME C-Y5- 000-A0 5.7- 1 5.7. Part Suppl y Unit DA8ME C-Y5-000-A0 5.7. 1 Part Supply Unit (Feeder Carriage) 6., 7 . 9. 3., 4 ., 5. 3., 4 ., 5. 8. 1. 2. 10.
RL131
MAINTENANCE MANUAL
5.6 Anvil Unit
DA8MEC-Y4-400-A0
5.6-2
RL131
MAINTENANCE MANUAL
5.7 Part Supply Unit
DA8MEC-Y5-000-A0
5.7-1
5.7. Part Supply Unit
DA8MEC-Y5-000-A0

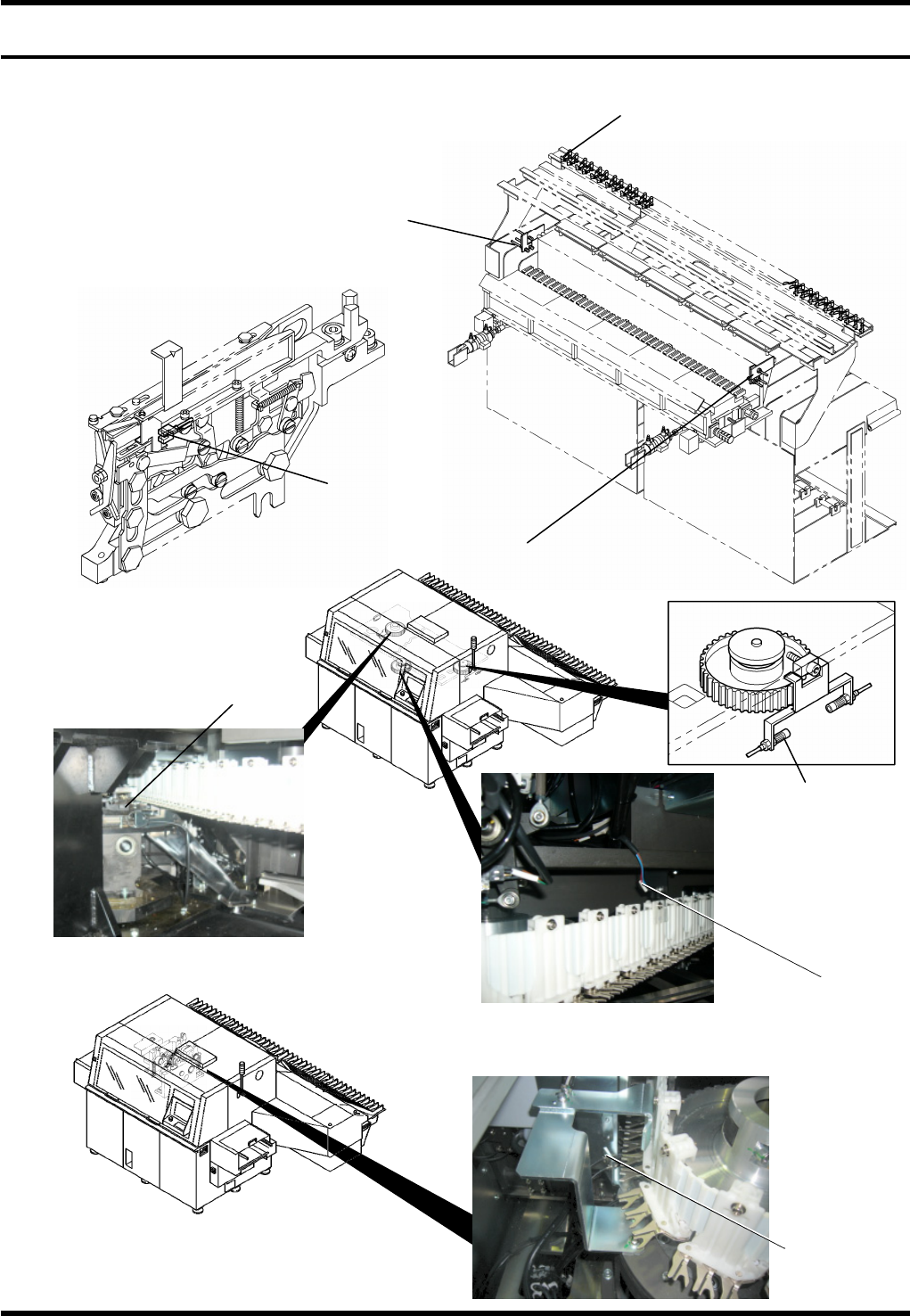

5.7.1 Part Supply Unit (Feeder Carriage)
6., 7.
9.
3., 4., 5.
3., 4., 5.
8.
1.
2.
10.
RL131
MAINTENANCE MANUAL
5.7 Part Supply Unit
DA8MEC-Y5-000-A0
5.7-2
No.
Name Type
1.
Z axis origin detection EE-SX671A
2.
Pallet part presence detection E3X-NT11
3.
Feeder feed check 1 E3X-NT11
4.
Feeder feed check 2 E3X-NT11
5.
Feed mounting position check E3X-NT11
6.
Pallet part position check 1 E3X-NT11
7.
Pallet part position check 2 E3X-NT11
8.
Part presence detection PM-R24
9.
End detection PM-R24
10.
V cut remain check E3X-NT11
