RL131
MAINTENANCE MANUAL
6.1 Lubrication Oil
DA8MEC-87-010-A0
6.1-1
6.1. Lubrication Oil
DA8MEC-87-010-A0
6.1.1 Recommended Lubricants
Machine Oil
Sliding unit
Shell: Tonna oil S68
Mobil: VACTRA No. 2
Esso: FEBIS K68
=HINT=
Use ISOVG or equivalent for machine oil.
Grease
Sliding unit, ball screws, etc.
Panasonic: MP Grease
This grease is available as maintenance part.
1kg-can: Product code N990PANA-023
100g-tube: Product code N990PANA-022
89g-belows × 5: Product code N990PANA-027
Shell: Alvania S2
Mobil: MOBILUX 2
Esso: LITHTAN 2
Kyodo: Multemp LRL No. 3
Antirust Lubricant
Name: Touch Lube
Product code: N990PANA-028
Order: Panasonic Factory Solutions Co., Ltd.
Oil for Reduction Gears
NOK KLUBER: SYNTHESO HT320, or Klubersynth GH6-320
=REMARKS=
Never mix oils.
Mobil: SHC632
=REMARKS=
Perform flushing with kerosene before charging the oil.
Turbine Oil
Lubricator
Shell: Turbine Oil 32
Nisseki: Turbine Oil 32
Esso: TERESSO 32
=HINT=
Use class 1 ISO VG 32 or equivalent for turbine oil.
== Refer to ‘11.1 Material Safety Data Sheet’ for the precautions on lubrication oils.
RL131
MAINTENANCE MANUAL
6.1 Lubrication Oil
DA8MEC-87-010-A0
6.1-2
6.1.2 Grease Gun Unit

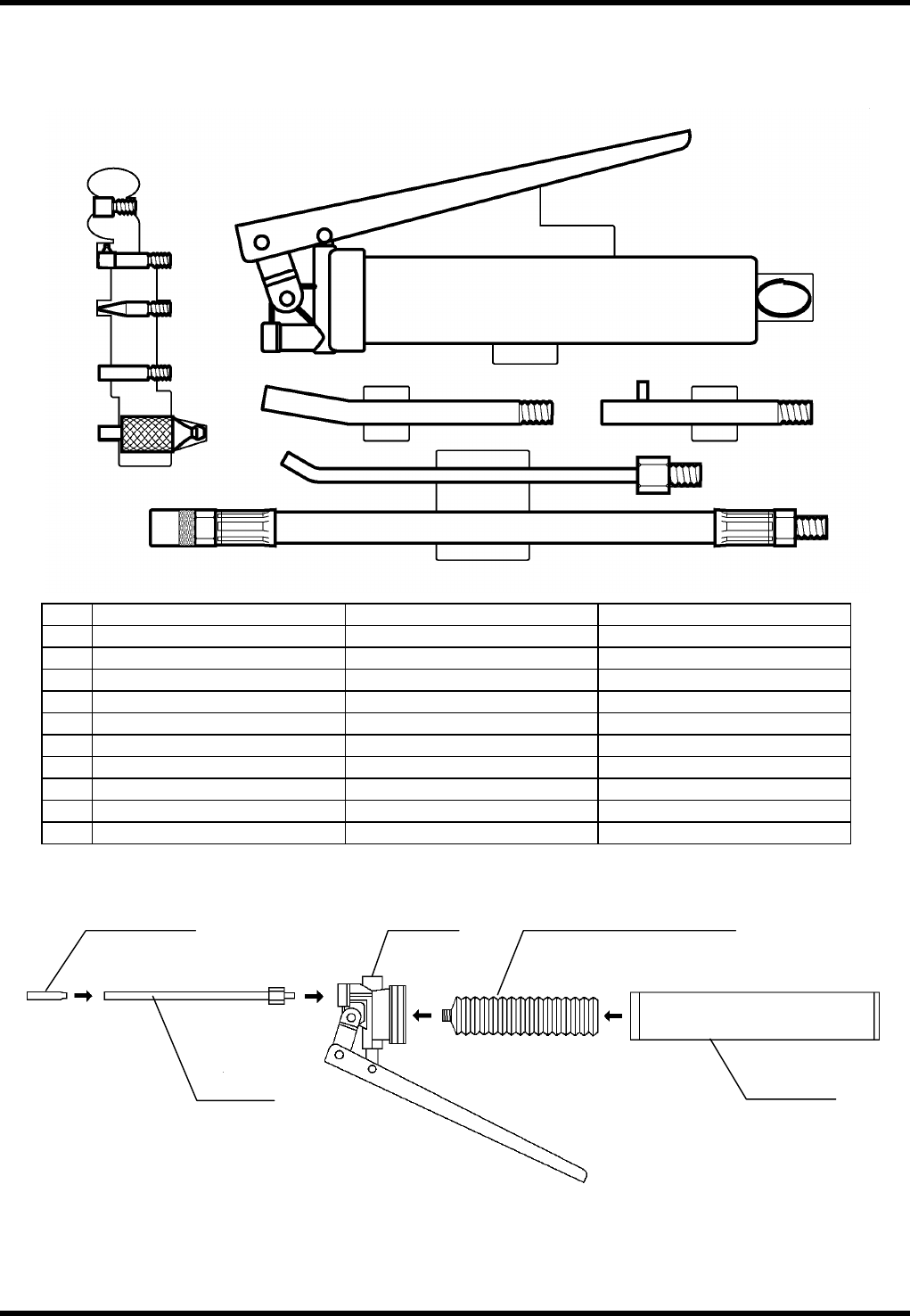

The drawing below shows the configuration of grease gun unit. (1046601000)
This unit enables you to inject grease approx. 0.5 cm
3
per shot.
No.
Name Part No. Model
1
Attachment N2 type N938YYYY-009 Nozzle N2
2
Attachment L type N938YYYY-007 Nozzle L
3
Attachment P type N938YYYY-006 Nozzle P
4
Attachment N1 type N938YYYY-008 Nozzle N1
5
Attachment J type N938YYYY-010 Nipple J
6
Grease pump type N938CH100A CH-100A
7
Attachment H type N938YYYY-004 Nozzle H
8
Attachment NL type N938YYYY-011 Nipple NL
9
Attachment U type N938YYYY-015 Nozzle U (remodeled)
10
Flexible hose N938YYYY-012 SPK-3C, L=280
Grease Gun Assembly Direction
1
2
3
4
5
6
7
8
9
10
Grease (N990PANA-027) Attachment Body
Cover
Nozzle
