RL131
MAINTENANCE MANUAL
7.4 Insertion Head
DA8MEC-Z1-M00-A0
7.4-6
12. Turn the plug of the reduction gear clockwise to retighten.
13. Retighten the screw of the head front cover and reattach the cover.
14. Put in the handwheel to the shaft and tighten the screw to lock it in place.
Plug
Handwheel Head front cover Handwheel Lock screw
RL131
MAINTENANCE MANUAL
7.4 Insertion Head
DA8MEC-Z1-M00-A0
7.4-7

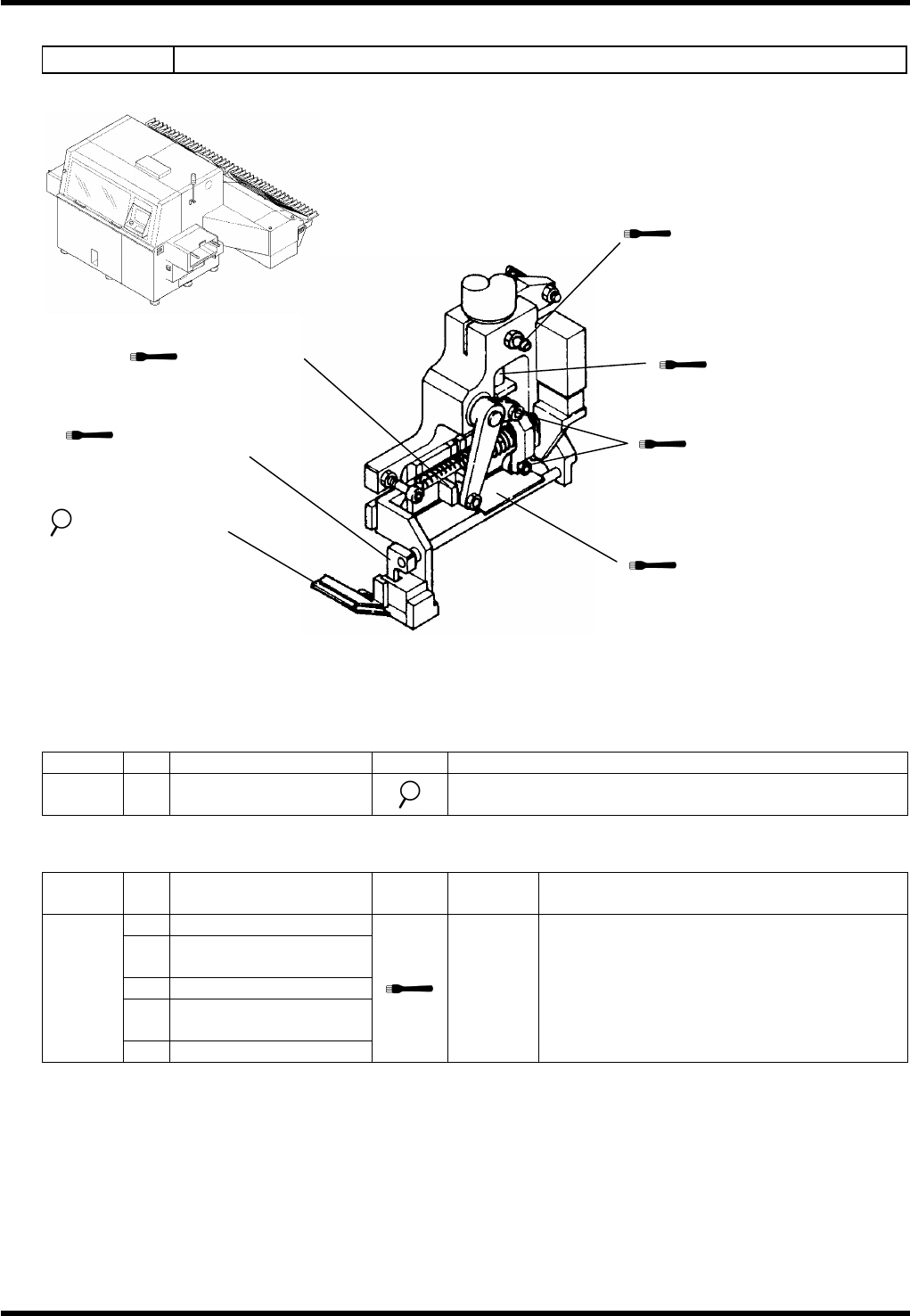

7.4.4 Transfer Chuck
Unit No. X02P55000AA
Inspection
Period
No.
Item Task Description
Daily a.
Transfer chuck
Make sure that the transfer chuck opens/closes
smoothly.
Oiling
Period
No.
Item Task
Oiling
volume
Description
1.
Cam follower
2.
Opening/closing
claw
3.
Plate
4.
Opening/closing
cam
Weekly
5.
Grease nipple
0.5 cm
3
Remove all dirt adhering on the surface
completely and apply a thin coat of grease.
3. Plate
a. Transfer chuck
1. Cam follower
1. Cam follower
4. Opening/closing
cam
5. Grease nipple
2. Opening/closing
claw
RL131
MAINTENANCE MANUAL
7.4 Insertion Head
DA8MEC-Z1-M00-A0
7.4-8

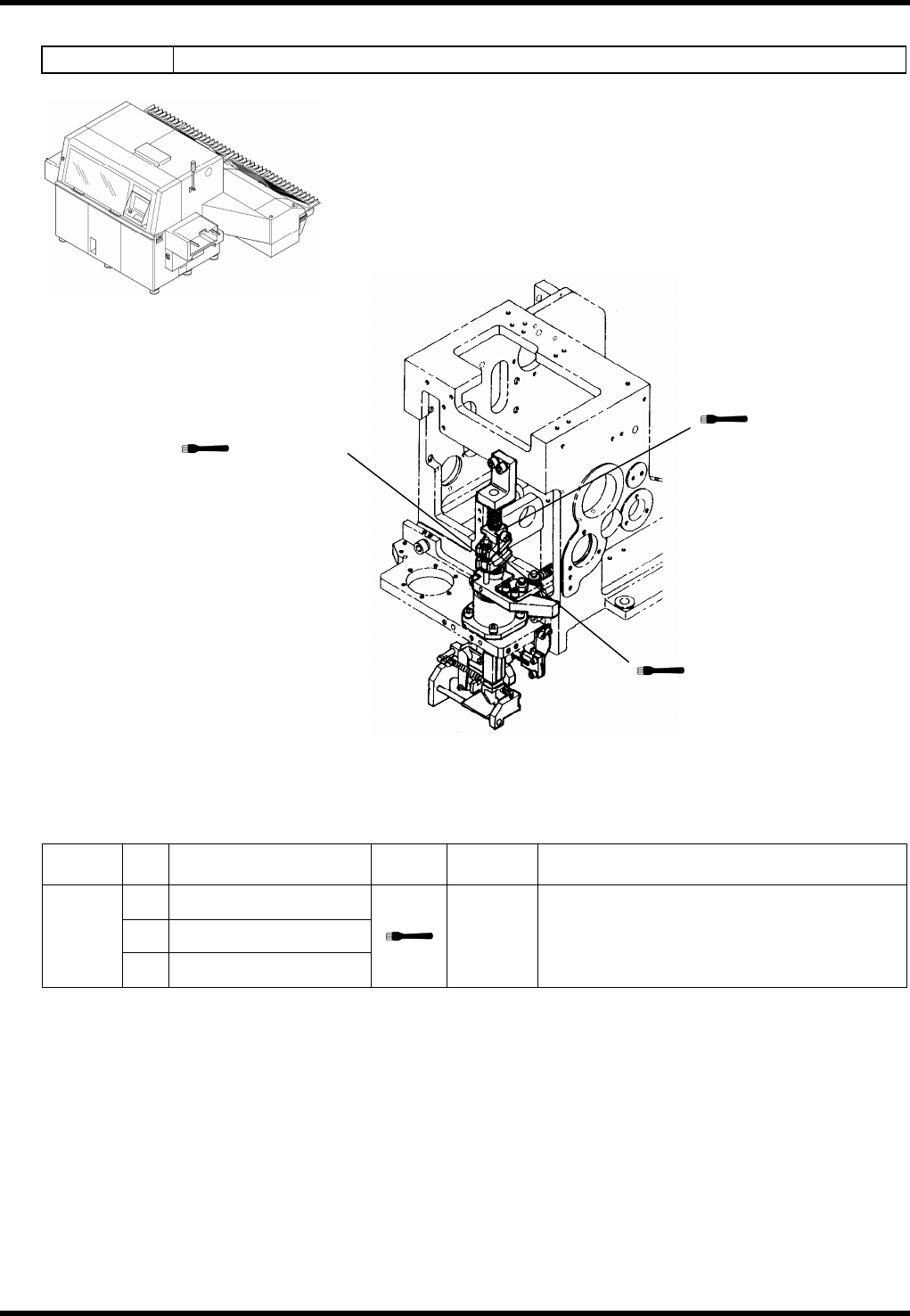

7.4.5 Transfer Head
Unit No. N610067465AA
Oiling
Period
No.
Item Task
Oiling
volume
Description
1.
Holder A
2.
Holder B
Weekly
3.
Outer shaft
0.5 cm
3
Remove all dirt adhering on the surface
completely and apply a thin coat of grease.
=REMARKS=
Keep the sensors, insertion chuck rubber and insertion pusher rubber free from oil or grease.
3. Outer shaft
2. Holder B
1. Holder A
