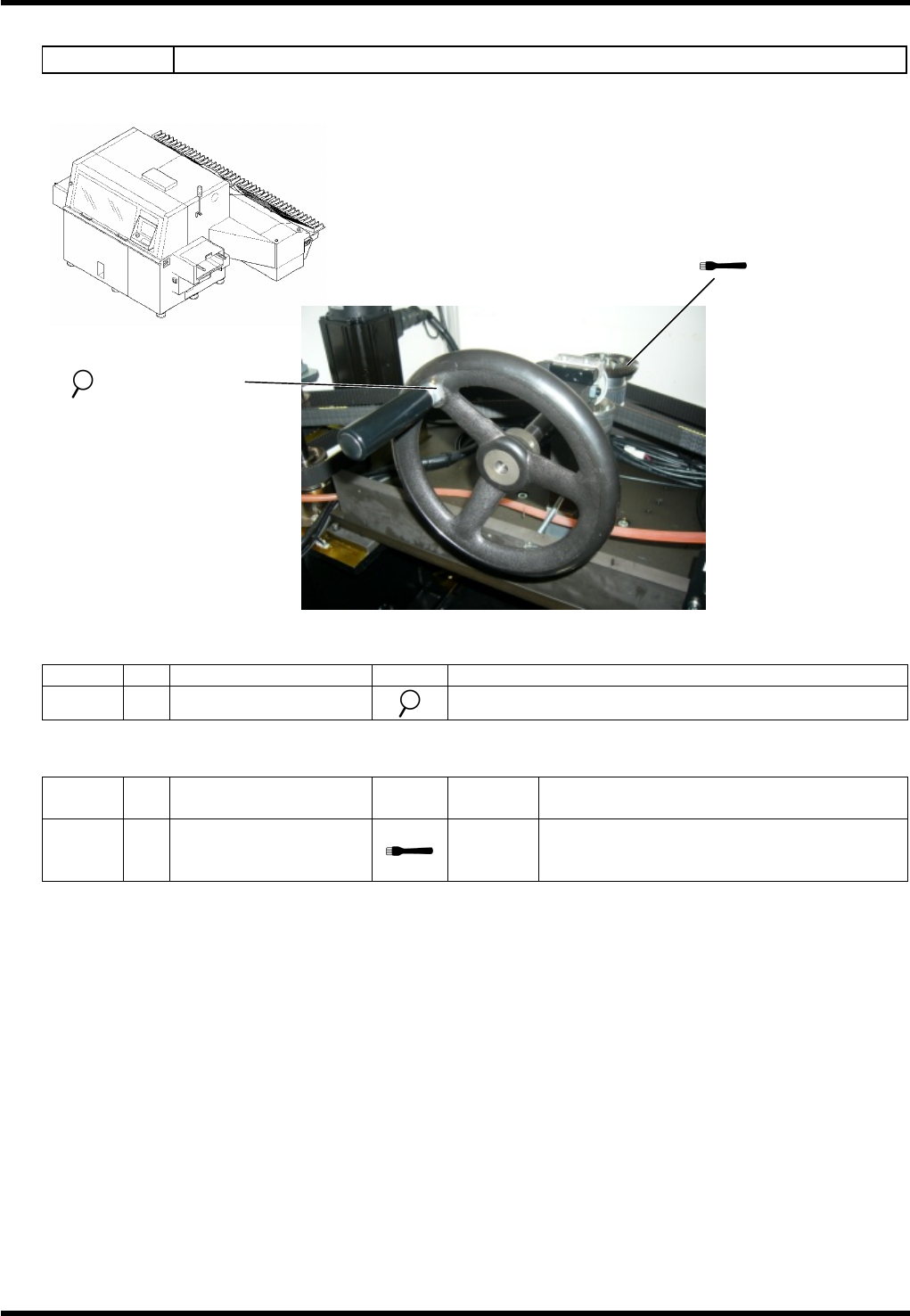

7.4.6 Main Drive Unit
Unit No. N610069946AA
Inspection
Period
No.
Item Task Description
Weekly
a.
Handwheel
Make sure that the gear rotates smoothly.
Oiling
Period
No.
Item Task
Oiling
volume
Description
3
months
1.
Gear surface
0.5 cm
3
Remove all dirt adhering on the surface
completely and apply a thin coat of grease
to the engagement portion of the gear.
1. Gear surface
a. Hand wheel
RL131
MAINTENANCE MANUAL
7.4 Insertion Head
DA8MEC-Z1-M00-A0
7.4-10
RL131
MAINTENANCE MANUAL
7.5 Feeder
DA8MEC-00-001-A0
7.5-1
7.5. Feeder
DA8MEC-00-001-A0
7.5.1 Feeder
Unit No.
N610071917AA、N610071918AA、N610071919AA、N610071920AA
Oiling
Period
No.
Item Task
Oiling
volume
Description
1.
Cam
2.
Lever
3.
Slider
4.
Lever (2)
5.
Lever (3)
6.
Spring hook
Monthly
7.
Tape cutter
0.5 cm
3
Remove all dirt adhering on the surface
completely and apply a thin coat of grease.
Apply 1 or 2 drops of the machine oil to the
shafts of the rollers.
=REMARKS=
Keep the sensors and belts free from oil or grease.
7. Tape cutter
5. Lever (3) 6. Spring hook 3. Slider
2. Lever 1. Cam 4. Lever (2)
