RL131
MAINTENANCE MANUAL
7.6 Part Processing Units
DA8MEC-Z1-M02-A0
7.6-2

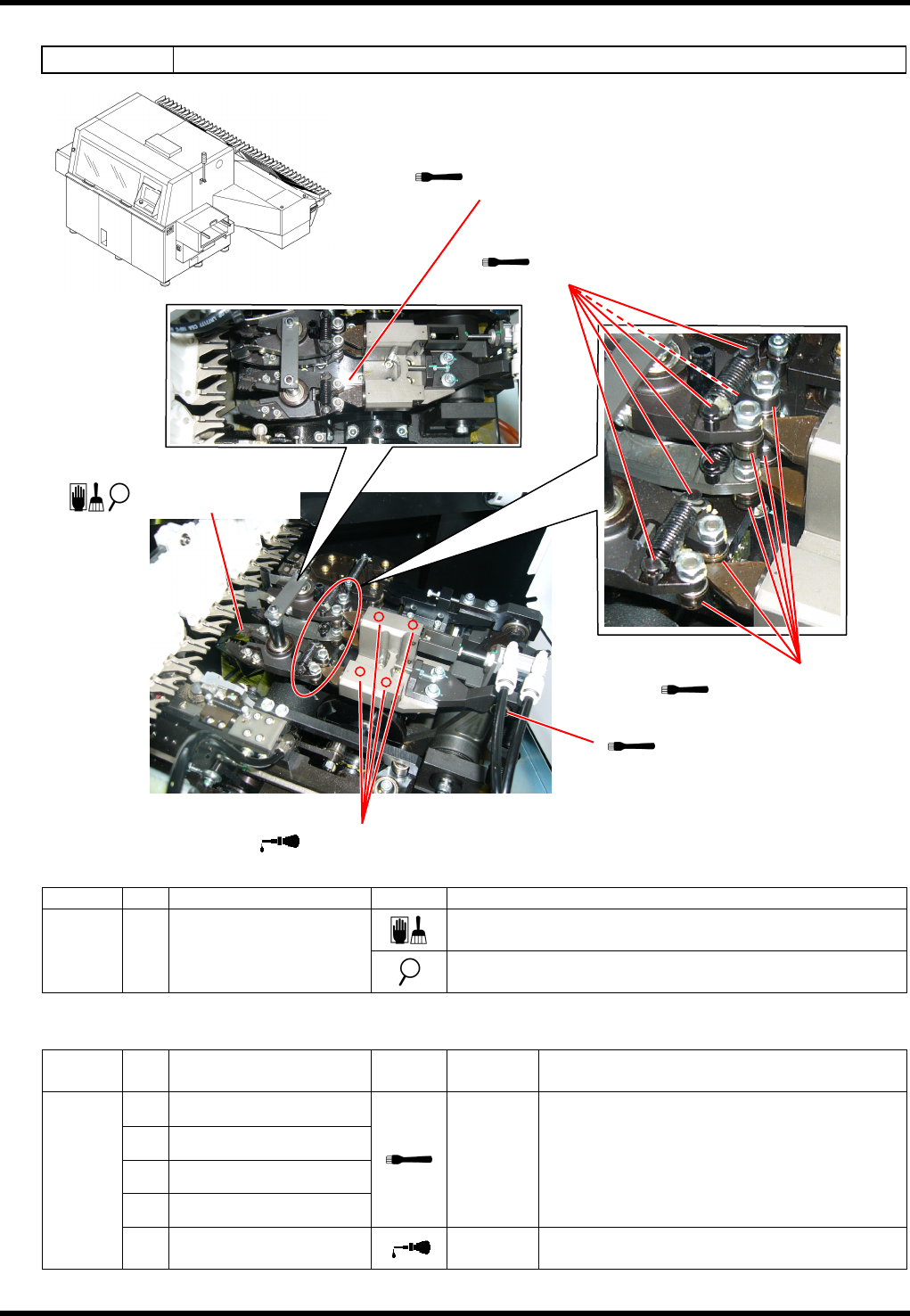

7.6.2 Lead Correction Unit
Unit No. N610074318AA
Inspection
Period No. Item Task Description
Clean the edge of the lead guide with a brush and
remove any cut wastes.
Daily a. Lead guide
Make sure that lubricant or dust is not adhering to the
lead cutter.
Oiling
Period No. Item Task
Oiling
volume
Description
1. LM guide
2. Cam follower
3. Open/close pin
4. Hook
0.5 cm
3
Remove all dirt adhering on the surface
completely and apply a thin coat of grease.
Weekly
5. Oil port
1 to 2
drops
Apply 1 or 2 drops of the machine oil to the
oil port.
1. LM guide
4. Hook
2. Cam follower
3. Open/close pin
5. Oil port (±4)
a. Lead guide
RL131
MAINTENANCE MANUAL
7.6 Part Processing Units
DA8MEC-Z1-M02-A0
7.6-3
5. Hook
1. LM guide
4. Pusher cam
2. Grease nipple
a. Lead cutter
b. Lead cutter lever
3. Grease nipple
c. Sensor
7.6.3 V-cut Unit
Unit No. N610074158AA
Inspection
Period
No.
Item Task Description
Clean the edge of the lead cutter with a brush and
remove any cut waste.
Make sure that lubricant or dust is not adhering to the
lead cutter.
a.
Lead cutter
Make sure that the lead cutter is not worn or damaged.
b.
Lead cutter lever
Make sure that the lead cuter lever opens/closes
smoothly.
Daily
c.
Sensor
Wipe off any dust or dirt at the edge of the sensor.
Oiling
Period
No.
Item Task
Oiling
volume
Description
1.
LM guide
Remove all dirt adhering on the surface
completely and apply a thin coat of grease.
2.
Grease nipple Apply 1 shot of grease with a grease gun.
3.
Grease nipple
Apply 1 shot of grease with a grease gun.
(Nipple type NL)
4.
Pusher cam
Weekly
5.
Hook
0.5 cm
3
Remove all dirt adhering on the surface
completely and apply a thin coat of grease.
=REMARKS=
Keep the sensors free from oil or grease.
RL131
MAINTENANCE MANUAL
7.6 Part Processing Units
DA8MEC-Z1-M02-A0
7.6-4
7.6.4 Part Processing Drive Unit
Unit No. N610073289AA
Inspection
Period
No.
Item Task Description
Daily a.
Worm reduction gear
Make sure that oil is not leaking from the reduction
gear.
Oiling
Period
No.
Item Task
Oiling
volume
Description
1.
Cam
Weekly
2.
Cam follower
0.5cm
3
Remove all dirt adhering on the surface
completely and apply a thin coat of grease.
Every
5,000
hrs
3.
Worm reduction gear
0.18 L
(Inside
the
reduction
gear)
Replace the lubricant inside the reduction
gear.
Drain oil: Open the lock valve at the bottom
of the worm reduction gear to
drain old oil.
Feed oil: After draining oil, pour new oil
from the oil port at the top of the
worm reduction gear. (up to the
middle of the check window)
2. Cam follower
a / 3. Worm reduction
gear
1. Cam
