RL131
MAINTENANCE MANUAL
7.6 Part Processing Units
DA8MEC-Z1-M02-A0
7.6-7

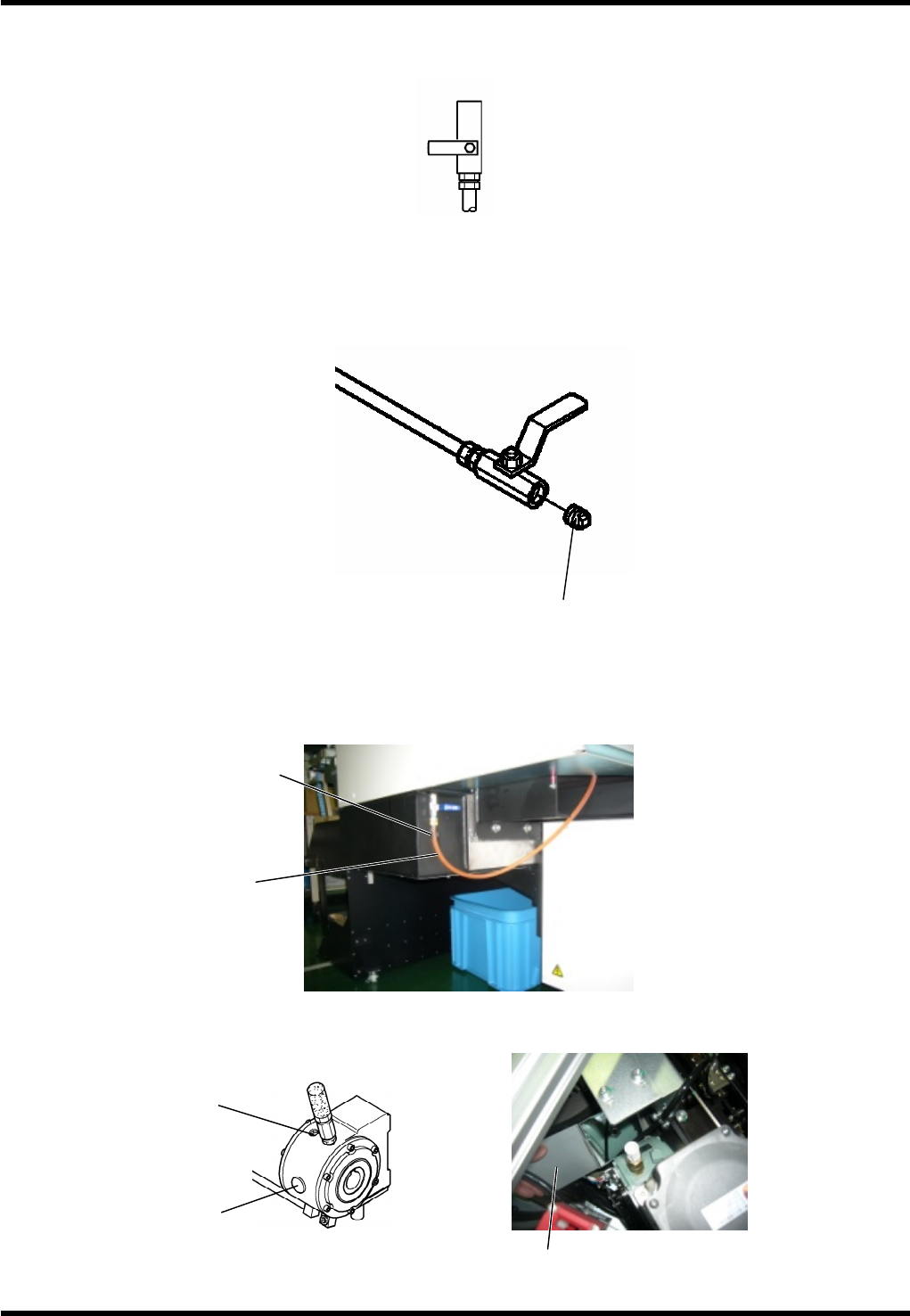

7. If oil nearly comes out, stop oiling once and turn the drain cock lever 90° as shown below. (This closes the
drain plug.)
8. Reattach the drain plug to the drain cock by turning it clockwise.
(Be sure to secure the plug in place. This prevents oil from spilling over even if the drain cock is opened
inadvertently.)
9. Press the hose against the hose clip to reattach.
10. Restart oiling.
Add oil from the oil port until oil level is above the center of the oil gauge while observing the oil gauge
using a mirror as shown in Photo 1.
Hose clip
Hose
Oil port
Oil gauge
Drain plug
Mirror
Photo 1
RL131
MAINTENANCE MANUAL
7.6 Part Processing Units
DA8MEC-Z1-M02-A0
7.6-8

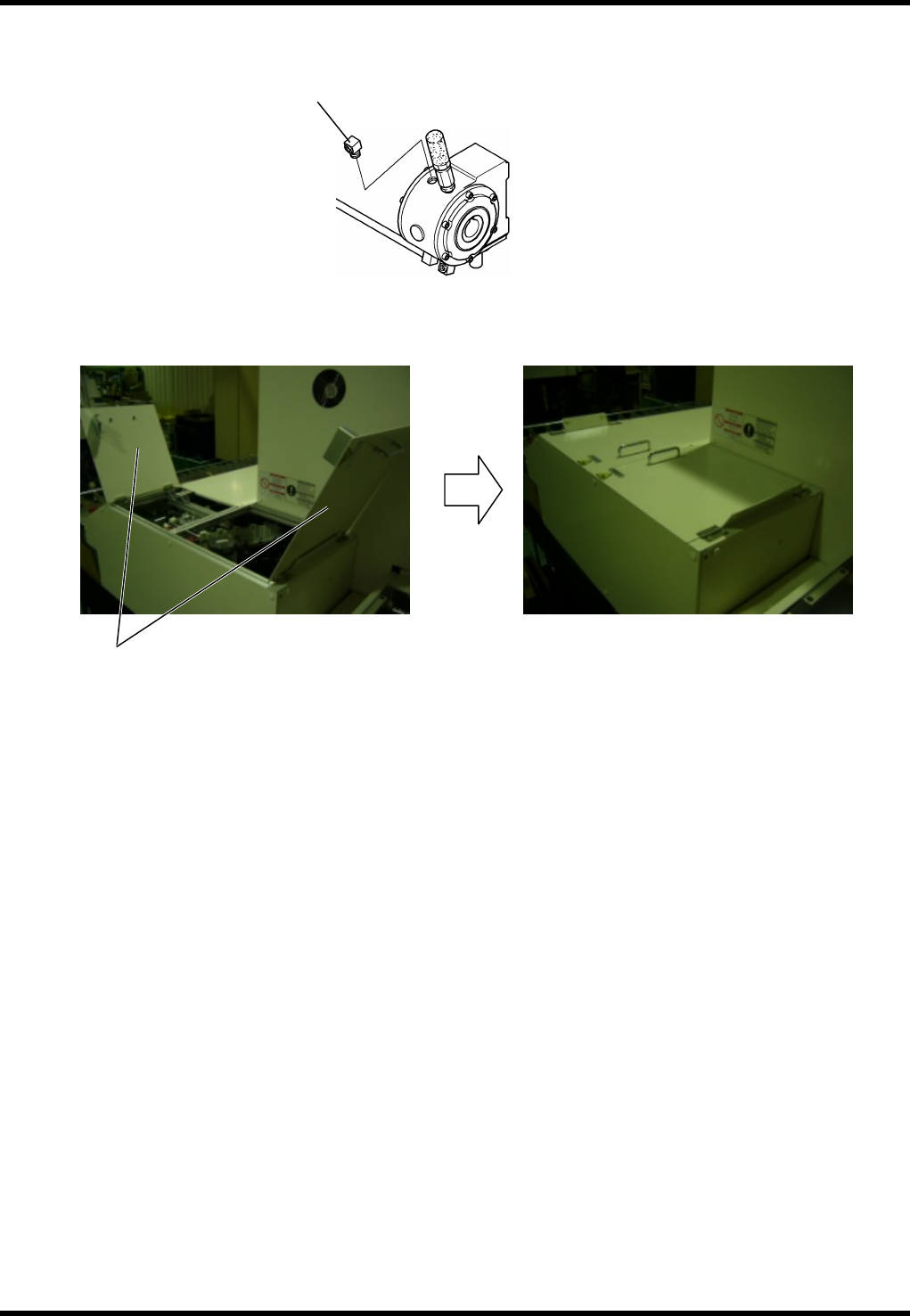

11. Turn the plug of the reduction gear clockwise to retighten.
12. Open the top cover of the part processing unit.
Plug
Top cover of part processing units
RL131
MAINTENANCE MANUAL
7.7 Anvil Unit
DA8MEC-Z4-400-A0
7.7-1

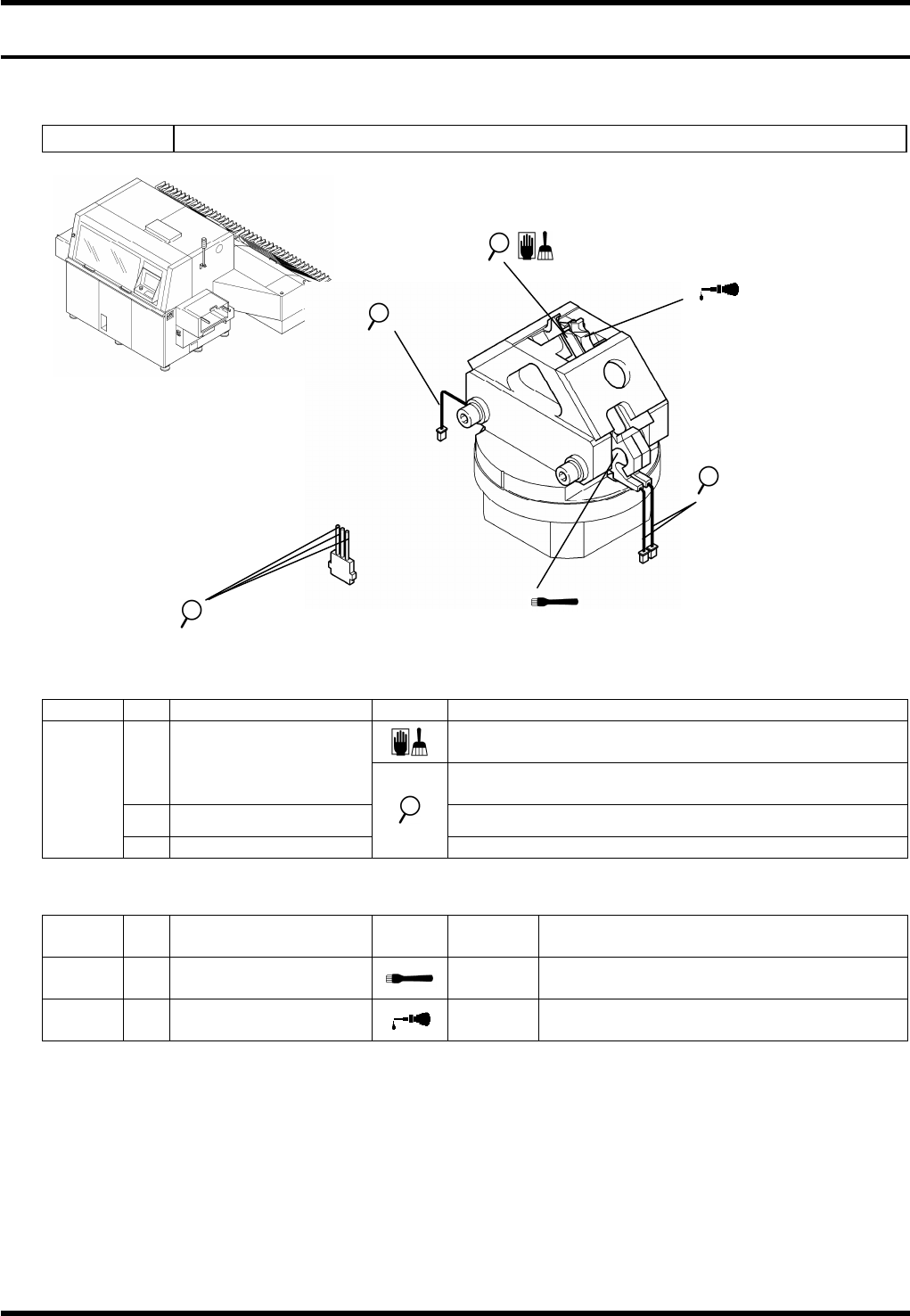

7.7. Anvil Unit
DA8MEC-Z4-400-A0
7.7.1 Upper Anvil
Unit No. N610069729AA
Inspection
Period
No.
Item Task Description
Clean the edge of the movable/fixed blades with a
brush and remove any cut waste.
a.
Movable/fixed blades
Make sure that the movable/fixed blade is not worn or
damaged.
b.
Cord Make sure that the cord is not damaged.
Daily
c.
Backup pin
Make sure that the backup pin is not worn or damaged.
Oiling
Period
No.
Item Task
Oiling
volume
Description
Weekly
2.
Lever sliding surface
0.1 cm
3
Remove all dirt adhering on the surface
completely and apply a thin coat of grease.
Monthly
1.
Movable blade sliding
surface
1 to 2
drops
Apply 1 or 2 drops of the machine oil on the
Movable blade sliding surface.
=REMARKS=
Keep the edges of fixed and movable blades free from oil or grease.
1. Movable blade
sliding surface
2. Lever sliding
surface
a. Movable/fixed blades
b. Cord
b. Cord
c. Backup pin
