RL131 MAINTENANCE MANUAL 8.2 Transf er Chuck DA8MEC-W 4-400-A0 8.2-8
RL131
MAINTENANCE MANUAL
8.2 Transfer Chuck
DA8MEC-W4-400-A0
8.2-7
8.2.6 Adjusting Pallet
Unit No. N610074162AA
8.2.5 Adjusting Handling Accuracy of
Electronic Components (Transfer
Chuck from Pallet)
8.2.6 Adjusting Pallet
Adjusting pallet
8.
1. Rotate the handwheel to set the cycle timer to 0°.
2. Set an electronic component jig to the pallet.
3. Turn OFF [Trans head back] under IO Control on the
“Machine adjustment menu” screen.
4. Rotate the handwheel to set the cycle timer to 195°.
5. Visually check that the center of the electronic
component jig of the pallet and that of the transfer chuck
are properly aligned.
If misaligned, proceed as follows.
6. Input the visually checked misalignment to the Machine offset Z on
the left side of eh screen.
7. Supply component again via [Part soppy check] in the [Machine
adjustment] menu and check if the component on the pallet can be
smoothly gripped by the transfer chuck. If gripped successfully,
adjustment is completed.
=REMARKS=
If gripping fails, repeat the steps 1 to 7 again.
Handwheel
Pallet
Transfer chuck
- +
Setting machine offset
RL131
MAINTENANCE MANUAL
8.2 Transfer Chuck
DA8MEC-W4-400-A0
8.2-8
RL131
MAINTENANCE MANUAL
8.3 Insertion Head Unit
DA8MEC-W4-400-A0
8.3-1
8.3. Insertion Head Unit
DA8MEC-W4-400-A0

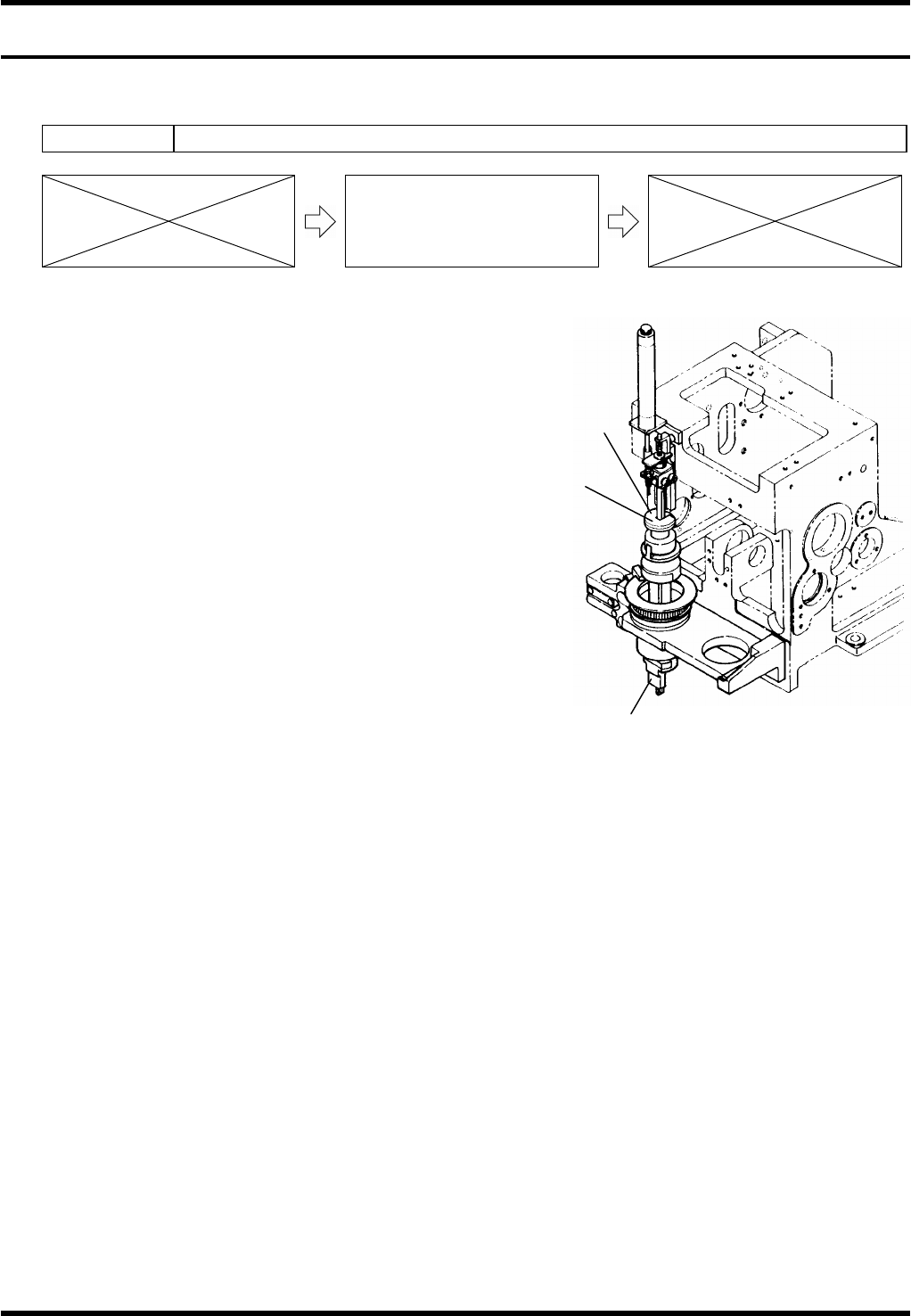

8.3.1 Adjusting Parallelism of the Insertion Head Pusher
Unit No. N610074520AA
8.3.1 Adjusting Parallelism of the
Insertion Head Pusher
Adjusting Parallelism of the Insertion Head Pusher
1.
1. Loosen the disc bolt (M4 2) of the insertion
head.
2. Set the dial gauge to the pusher (B). Adjust the
parallelism by turning the disc.
3. When the parallelism has fallen within the
standard range, tighten the bolt (M4 2) to
secure.
Disc
Adjusting the parallelism of the pusher
Pusher (B)
Bolt (M42)
