8.4.3 Adjusting the Height of Backup Pins
Unit No. N610074515AA
8.4.2 Adjusting Anvil Clinch Stroke
8.4.3 Adjusting the Height of
Backup Pins
Adjusting the Height of Backup Pins
5.
1. Turn the handwheel to set the cycle timer at 150°.
2. Measure the heights of anvil PCB receiver and
backup pin and check if the difference is between
0 and -0.1 mm.
Proceed to the next step if the difference is not
within the above range.
3. Loosen the retaining bolt (B) of the anvil lower part
and raise the backup pin to adjust the height
difference with the anvil PCB receiver to between
0 and 0.1 m.
4. Retighten the retaining bolt (A) of the anvil lower
part to secure in place.
5. Turn the handwheel 360° and measure, again, the
heights of the anvil PCB receiver and the backup
pin.
Adjustment is completed if the difference in height
is 0 to –0.1 mm.
=REMARKS=
If the difference in height is not 0 to –0.1 mm,
repeat the steps from 1 to 5 again.
Replacing the Backup Pins
6.
1. Remove the cap which secures the backup pins.
2. Pull out the pins from the shaft.
3. Place new backup pins, then tighten the cap to
secure them.

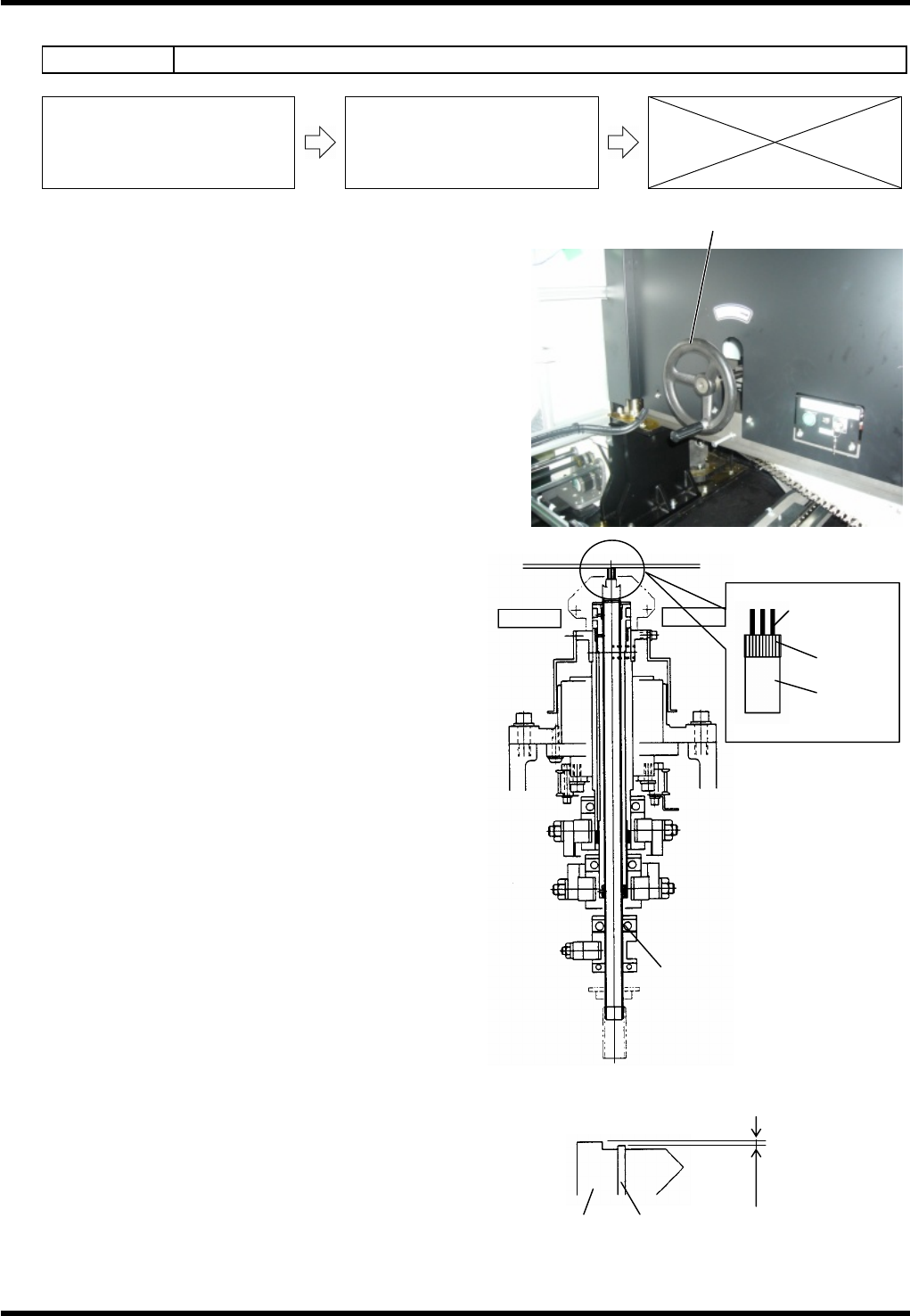

Adjusting the height of backup pins
0 to 01 mm
Fixed blade Backup pin
Handwheel
Bolt (B)
Anvil lower part
Backup pin
Cap
Shaft
RL131
MAINTENANCE MANUAL
8.4 Anvil Unit
DA8MEC-W4-400-A0
8.4-4
RL131
MAINTENANCE MANUAL
8.5 Feeder Unit
DA8MEC-W4-400-A0
8.5-1
8.5. Feeder Unit
DA8MEC-W4-400-A0
8.5.1 Replacing Feeders
Unit No. N610071917AA, N610071918AA, N610071919AA, N610071920AA,
8.5.1 Replacing Feeders
Replacing Feeders
1.
1. Turn OFF the power switch of the machine. (Be sure to do this before replacing feeders.)
The part supply unit moves backward.
2. Detach the connector and bolts (x2) then, detach the component feeder.
Mounting Feeders
2.
1. Mount the feeder so that the pin at the front side of
the feeder carriage may fit in the hole of the part
supply unit.
=REMARKS=
Make sure that the holder of the component feeder
engages with the roller of the cylinder underneath.
Improper engagement could cause damage to the
component feeder.
2. Secure the bolt (M6x2) and bolt (M6x40).
3. Connect the connector.
4. Turn ON the power switch of the machine. This completes the procedure.
=REMAKRS=
Make sure the power switch is OFF when replacing the feeder. Working with the power ON could
cause damage to the I/O board fuse.

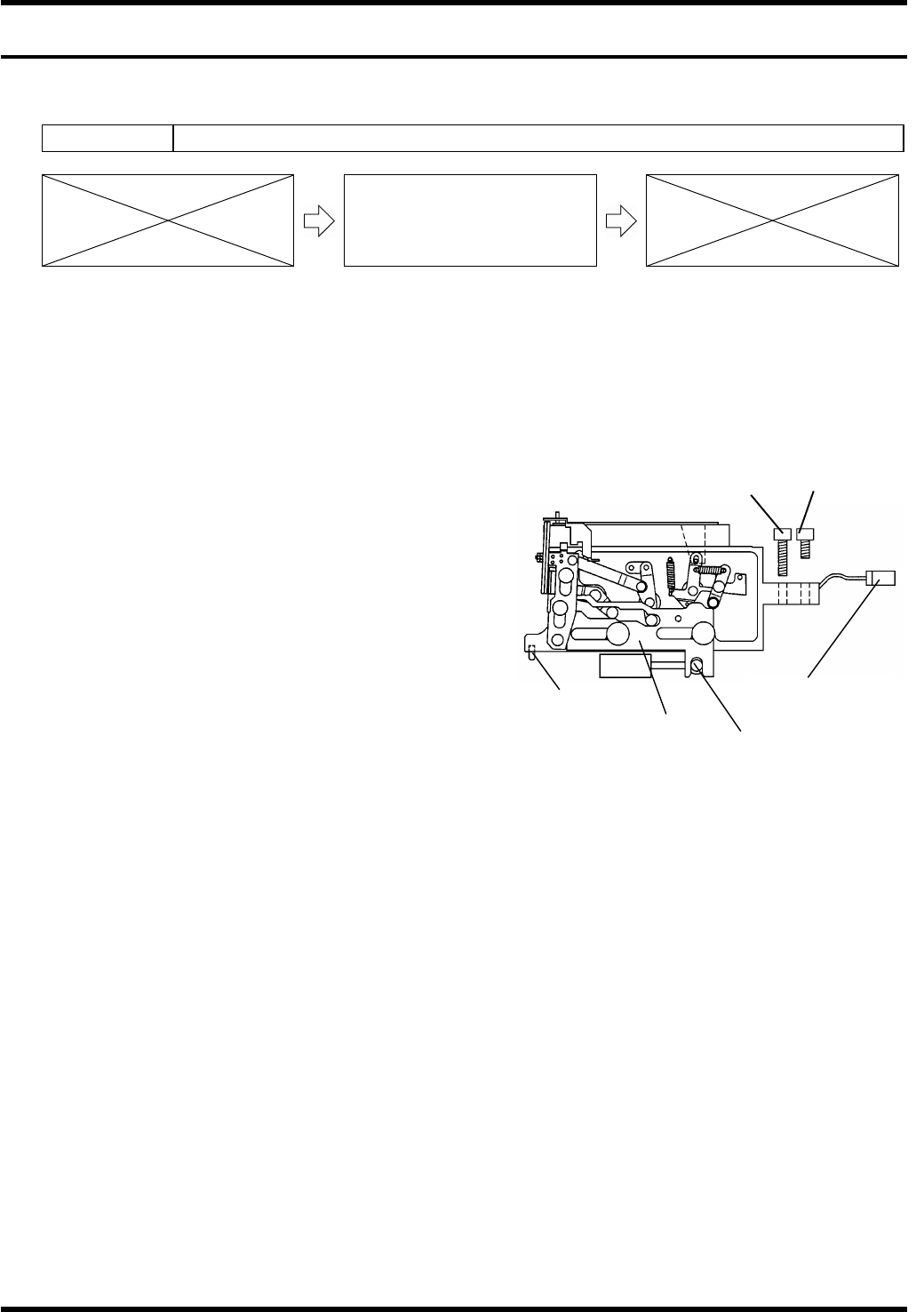

Feeder
Cylinder roller
Bolt (M6
´
40) Bolt (M6
´
20)
Connector
Pin
