RL131 MAINTENANCE MANUAL 8.6 Recognition and Light ing Unit DA8MEC-W 0-400-A0 8.6-1 8.6. Recognition and Ligh ting Unit DA8MEC- W 0-400-A0 8.6.1 Cleaning the Camera / Fl oodlight Unit No. N610052084AA 8.6.1 Cleaning the …
RL131
MAINTENANCE MANUAL
8.5 Feeder Unit
DA8MEC-W4-400-A0
8.5-2

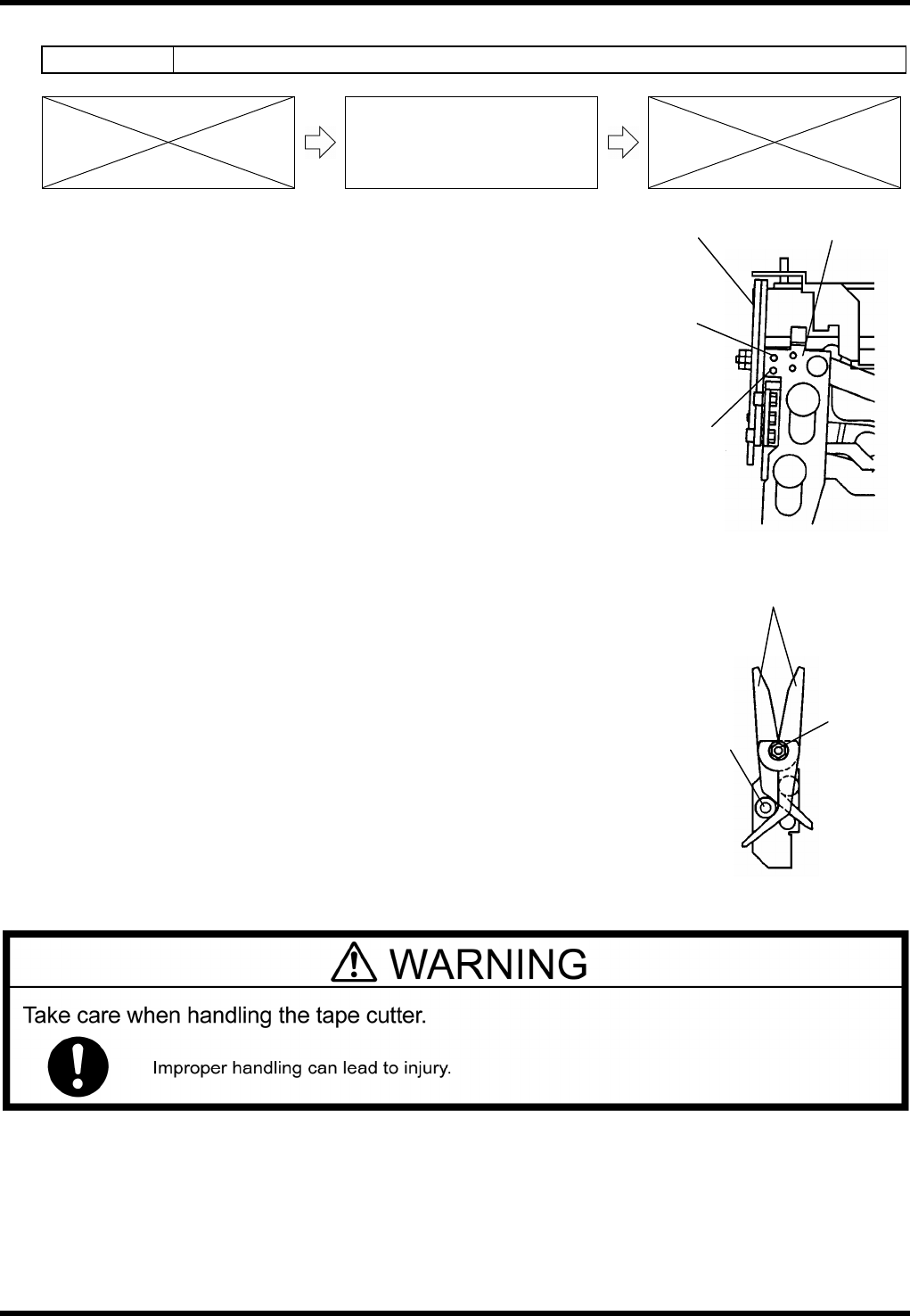

8.5.2 Replacing Tape Cutter
Unit No. N610071917AA, N610071918AA, N610071919AA, N610071920AA,
8.5.2 Replacing Tape Cutter
Replacing Tape Cutter
3.
1. Turn OFF the power switch of the machine. (Be sure to
do this before replacing feeder.)
Detach the feeder from the machine.
== Refer to ‘8.5.1 Replacing Feeders’.
2. Loosen the bolt to remove the tape cutter.
3. Mount a new tape cutter to match the positioning pin.
=REMARKS=
Make sure the positioning pin fits in the block
correctly when installing the tape cutter.
Make sure the cutter blades are set in the lower
roller as shown below.
Do not touch the nut securing the cutter blade
unnecessarily. Removing the nut changes the
performance of the tape cutter.
Positioning pin
Replacing the tape cutter
Tape cutter
Bolt
Block
Nut
Cutter blade
Lower roller
Installing the cutter blade
RL131
MAINTENANCE MANUAL
8.6 Recognition and Lighting Unit
DA8MEC-W0-400-A0
8.6-1
8.6. Recognition and Lighting Unit
DA8MEC-W0-400-A0

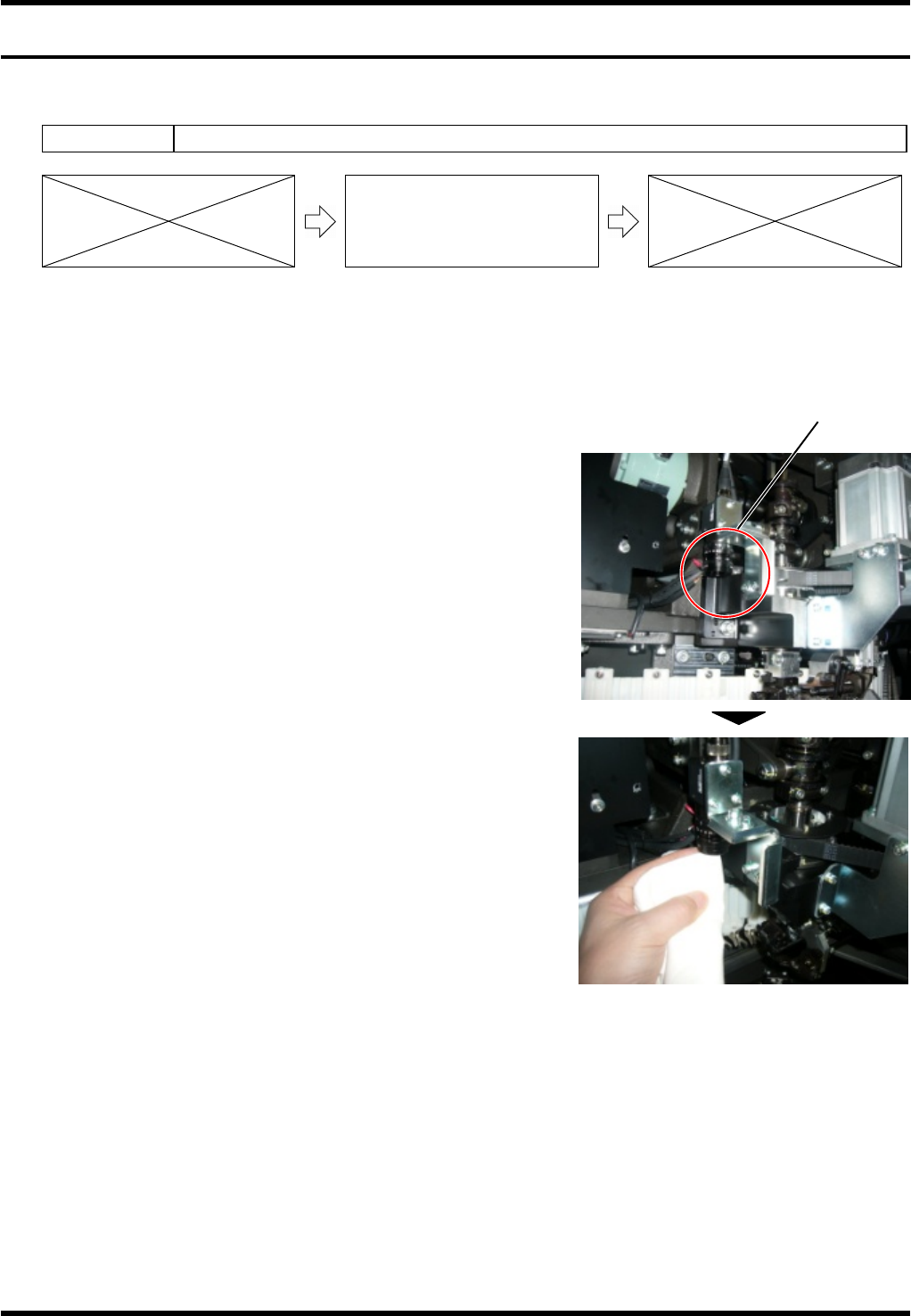

8.6.1 Cleaning the Camera / Floodlight
Unit No. N610052084AA
8.6.1 Cleaning the Camera /
Floodlight
When “HOLE RECOG HOLE NOT IN SEARCH AREA” occurs during the PCB hole recognition, it is likely
that the lens of the recognition camera is dirty. Procedure for cleaning the lens is shown below.
Procedure for Cleaning the Camera
1.
1. Prepare tools for cleaning.
Dry, soft cloth
2. Return the machine to the origin, and then turn the <SERVO>
switch or power supply OFF.
3. Open the machine front cover.
4. Detach the front cover.
5. The camera is located to the left of the insertion head. As
shown in the right photo, access the camera from beneath
and wipe the lens with the soft cloth prepared in step 1.
6. Execute the PCB hole recognition again to check that “HOLE
RECOG HOLE NOT IN SEARCH AREA” does not occur.
=REMARKS=
Avoid the grease adherence on the lens.
Recognition camera
Insertion head
RL131
MAINTENANCE MANUAL
8.6 Recognition and Lighting Unit
DA8MEC-W0-400-A0
8.6-2

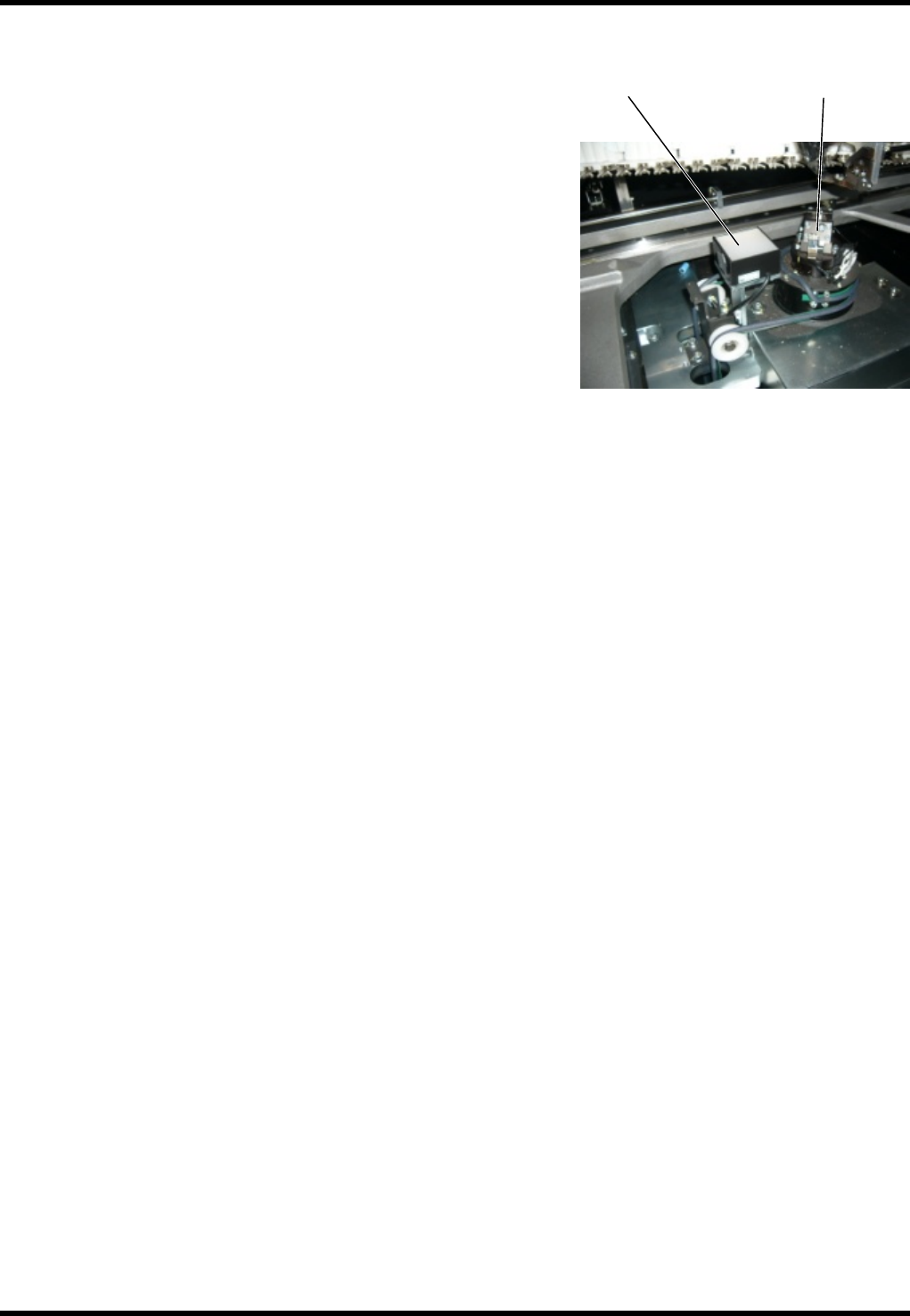

Procedure for Cleaning the Floodlight
=PREPARATION=
1. Tools for cleaning
2. Dry, soft cloth
2.
1. Return the machine to the origin, and then turn the <SERVO>
switch or power supply OFF.
2. Open the machine front cover.
3. The floodlight is located to the right of the anvil unit as seen
from the machine front side. Wipe off any dirt or dust at the
top of the floodlight.
4. Execute the PCB hole recognition again to check that “HOLE
RECOG HOLE NOT IN SEARCH AREA” does not occur.
Anvil unit
Floodlight
