RL131 MAINTENANCE MANUAL 9.1 Movem ent Check DA8MEC-71-010- A0 9.1-1 9.1. Mo v ement Check DA8MEC-71-010-A0 This func tion allows you to c heck eac h axis for proper m ovement under manual c ontrol. NC axis jog ( 9.1…
RL131
MAINTENANCE MANUAL
9. SYSTEM CHECK FUNCTIONS
DA8MEC-71-000-A0
9-2
DA8MEC-71-000-A0
9. SYSTEM CHECK FUNCTIONS
This chapter describes the functions for maintenance operations under the system management menu.
RL131
MAINTENANCE MANUAL
9.1 Movement Check
DA8MEC-71-010-A0
9.1-1
9.1. Movement Check
DA8MEC-71-010-A0
This function allows you to check each axis for proper movement under manual control.
NC axis jog ( 9.1.2)
NC axis move ( 9.1.3)
Width adjust axis jog ( 9.1.4)
Width adjust axis move ( 9.1.5)
Before making checks, perform origin re-turn. ( 9.1.1)
RL131
MAINTENANCE MANUAL
9.1 Movement Check
DA8MEC-71-010-A0
9.1-2
9.1.1 Origin Return
Be sure to return all axes to their origins before moving axes.

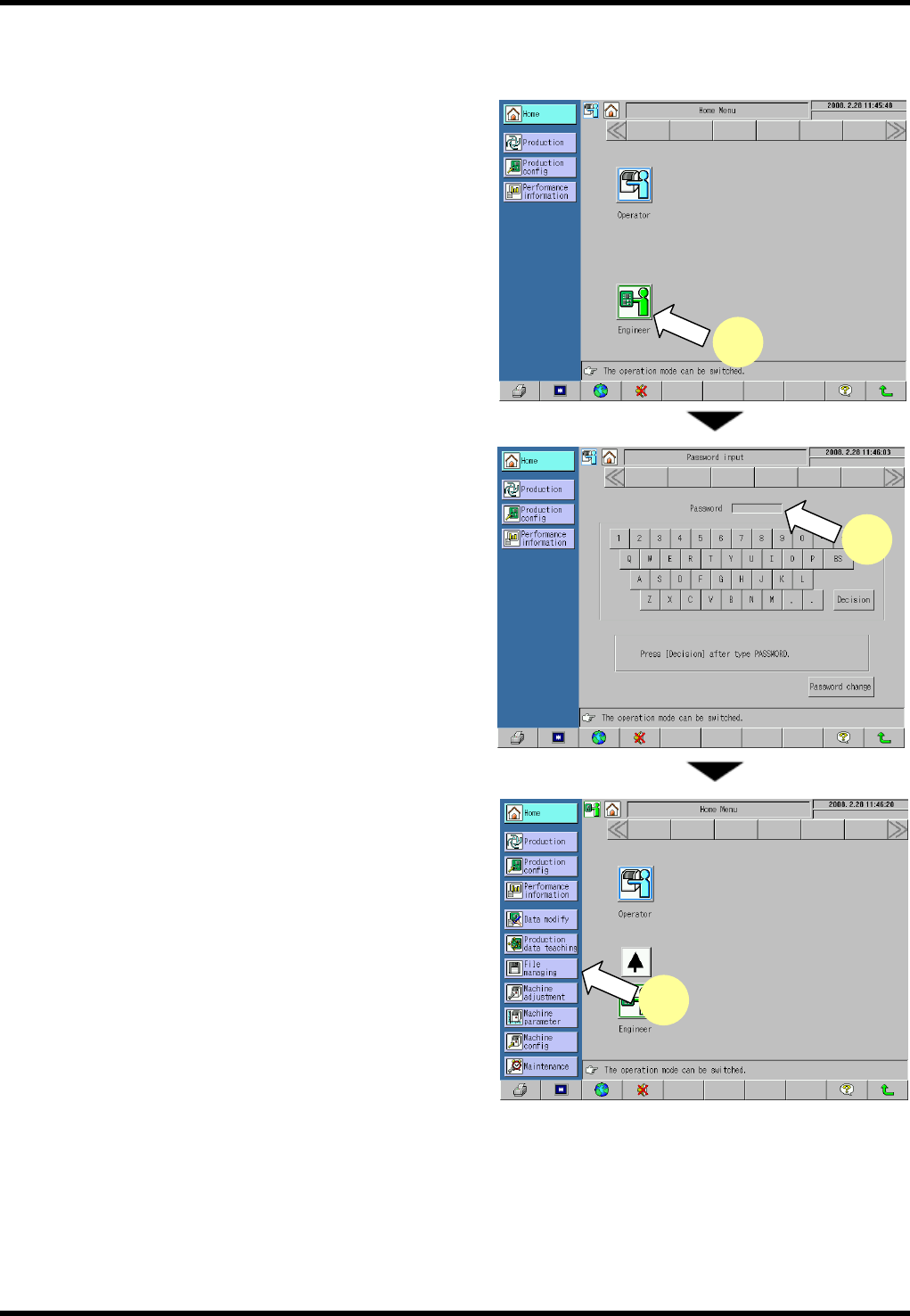

Operating procedure
1.
1. Press [Engineer] on the “Home Menu” screen in the
operator mode.
The mode changes to the engineer.
2. Enter the password on the “Password input” screen
to change the mode to the engineer.
3. Press [Machine Adjustment] from the main menu.
The “Machine adjustment menu” screen appears.
3
1
2
