RL131

MAINTENANCE MANUAL

2.3 Maintenance Function

DA8MEC-10-030-A0

2.3-5

2.3.4 Operational Restrictions

 Inhibited Operations (Cannot be Stopped Unless Operating Intentionally)

 Origin return of all axes

 Axis positioning from the Machine adjust - NC MOVE screen

 XY axis positioning from the Auto Camera Scale Measurement screen

 XY axis positioning from the Board 2 Holes Teaching screen

 Z axis positioning by pressing “MOVE WAITING POSITION” on the feeder carriage control panel

 Origin return of the rail axis

 Positioning of the rail axis from the Machine adjust - Width MOVE screen

 Automatic width adjustment from the PCB Data Select screen

 Automatic width adjustment from the PCB Data Edit screen

 Rail width adjustment from the PCB Data Teaching screen

 Any axis operation during production

 Permissible Operations (Can be Stopped If Quitting Operation)

 Release of safety stop by pressing <START>

 Teaching of each axis from the Machine adjust - NC JOG screen (low speed)

 Teaching of the XY axis from the Binary Level Setting screen (low speed)

 Teaching of the XY axis from the Manual Camera Scale Measurement screen (low speed)

 Teaching of the XY axis from the Auto Camera Scale Measurement screen (low speed)

 Teaching of the XY axis from the Board 2 Holes screen (low speed)

 Teaching of the rail axis from the Machine adjust - Width JOG screen (low speed)

 Teaching of the rail axis from the Board Data Teaching screen (low speed)

RL131

MAINTENANCE MANUAL

2.3 Maintenance Function

DA8MEC-10-030-A0

2.3-6

2.3.5 Error Messages

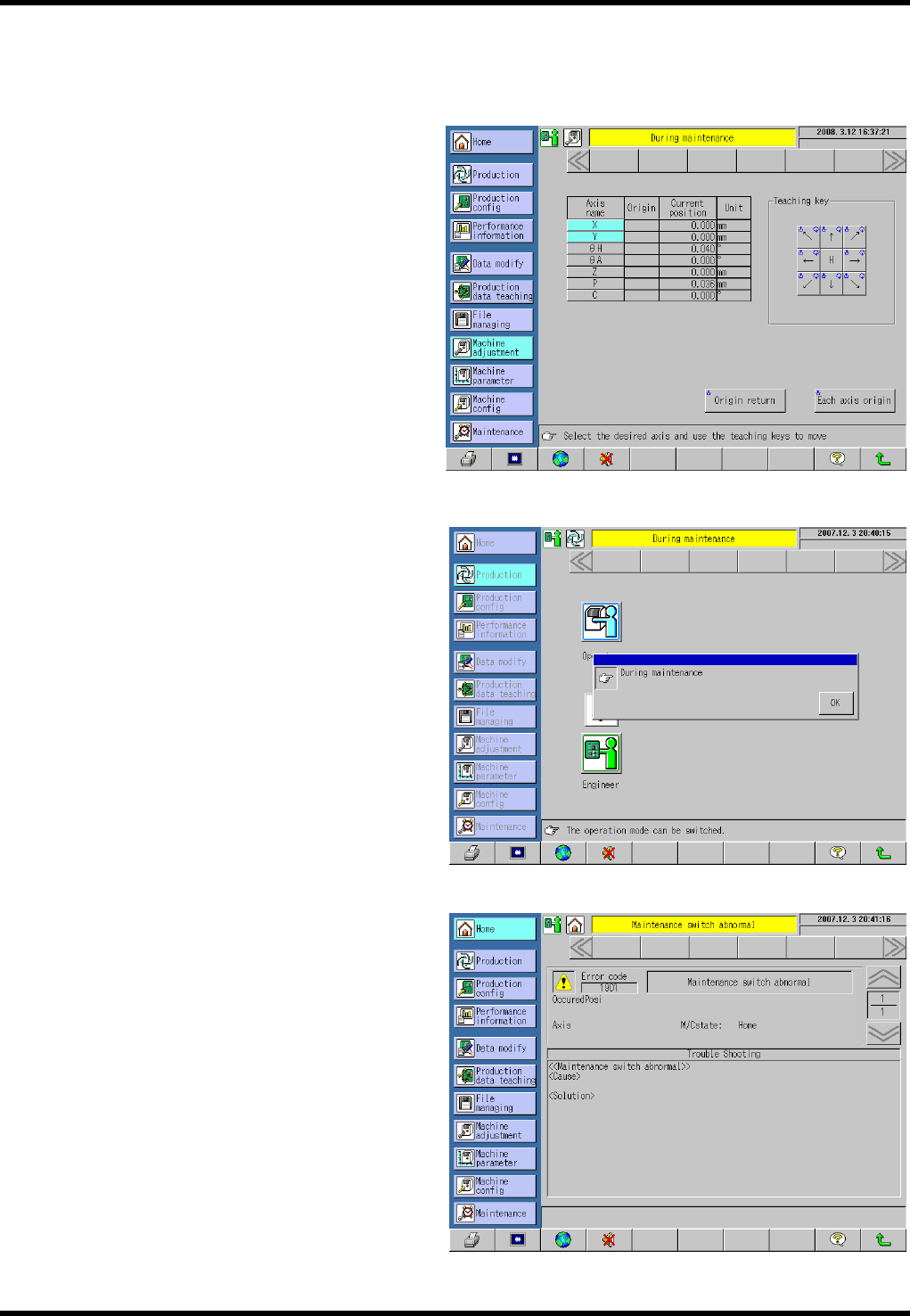

1. When the maintenance switch is turned ON to engage the maintenance mode:

 The background of the main menus turns

yellow and the message “During

maintenance” appears to notify the

operator that the maintenance switch is

turned ON and the maintenance mode is

engaged.

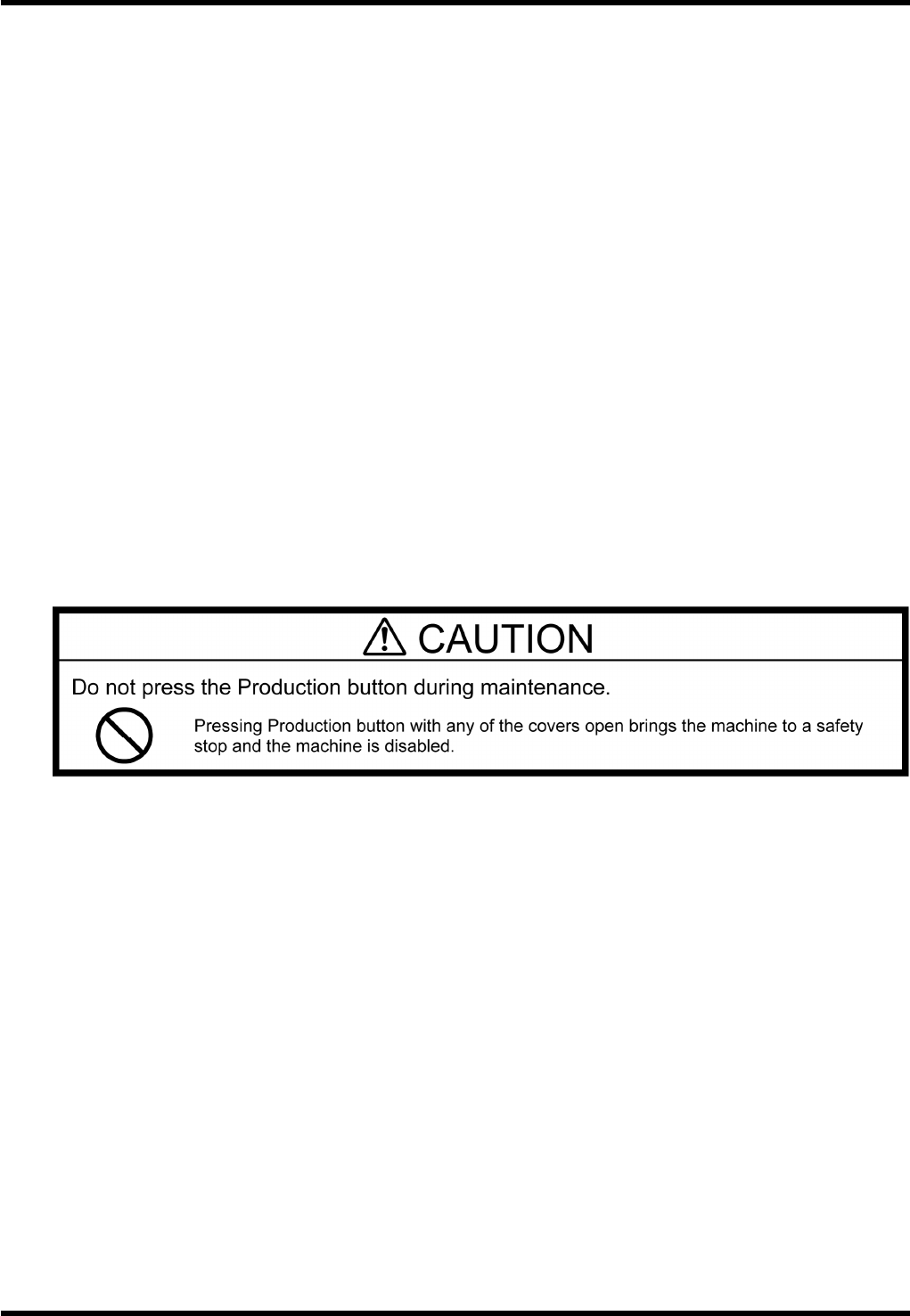

2. When [Production] is pressed in the

maintenance mode:

 A pop-up window indicating “During

maintenance” appears. Pressing [OK]

returns the display forcibly to the screen

immediately before [Production] is

pressed.

3. Other

 The following error occurs if the

maintenance switch is turned ON after

closing the safety covers, clearing a safety

stop error and closing all covers (all safety

interlock switches are ON and safety stop

error has been cleared (e.g., when the

maintenance switch has been broken)).

Error code: 1901

Error name: Maintenance switch

abnormal

Check the maintenance switch for

detection status.

RL131

MAINTENANCE MANUAL

2.4 Safety Standards

DA8MEC-10-040-A0

2.4-1

2.4. Safety Standards

DA8MEC-10-040-A0

2.4.1 Applied Standards

This machine is a CE-marked product, which complies with the following standards.

However, for the machines to be delivered to countries where CE marking is not required, modification may

be made according to the custom specification.

Note that, in such a case, the machine may not satisfy the requirements for CE marking any more.

 Machinery Directive: 98/37/EC

EN ISO 12100-1 (2003): Safety of machinery - Basic concepts, general principles for design

Part 1: Basic terminology, methodology

EN ISO 12100-2 (2003): Safety of machinery - Basic concepts, general principles for design

Part 2: Technical principles and specifications

EN 60204-1 (1997): Safety of machinery - Electrical equipment of machines

Part 1: General requirements

 EMC Directive: 89/336/EEC as amended by 92/31/EEC and 93/68/EEC

EN 55011 (1998) A1: 1999, A2: 2002

Limits and methods of measurement of radio disturbance characteristics of

industrial, scientific and medical (ISM) radio-frequency equipment

EN 61000-6-2 (2001): Electromagnetic compatibility. Generic immunity standard.

Part 2: Industrial environment

 Low Voltage Directive: 73/23/EEC as amended by 93/68/EEC
