RL131
MAINTENANCE MANUAL
3.2 Connecting the Power Supply
DA8MEC-11-020-A0
3.2-2
3.2.2 Connecting Factory Power Supply with Main Power Switch
Preparations
Check that the power voltage of the factory falls within the voltage range shown on the label of the
step-down transformer.
Use of captyre cable (Oil-resistant) is recommended for the power cable.
In order to fix the cable securely with the cable gland, prepare a cable with outer size of 18.5 to 20.5
mm.
It is recommended to use a yellow-and-green spiral stripe coating wire for the ground cable.
The conductor size should be equivalent to the supply power cable.
Use an H sleeve to avoid trouble caused by raveled core.
Recommended terminal Conductor size
H6/20 Weidmuller make AWG10 (6 mm
2
)

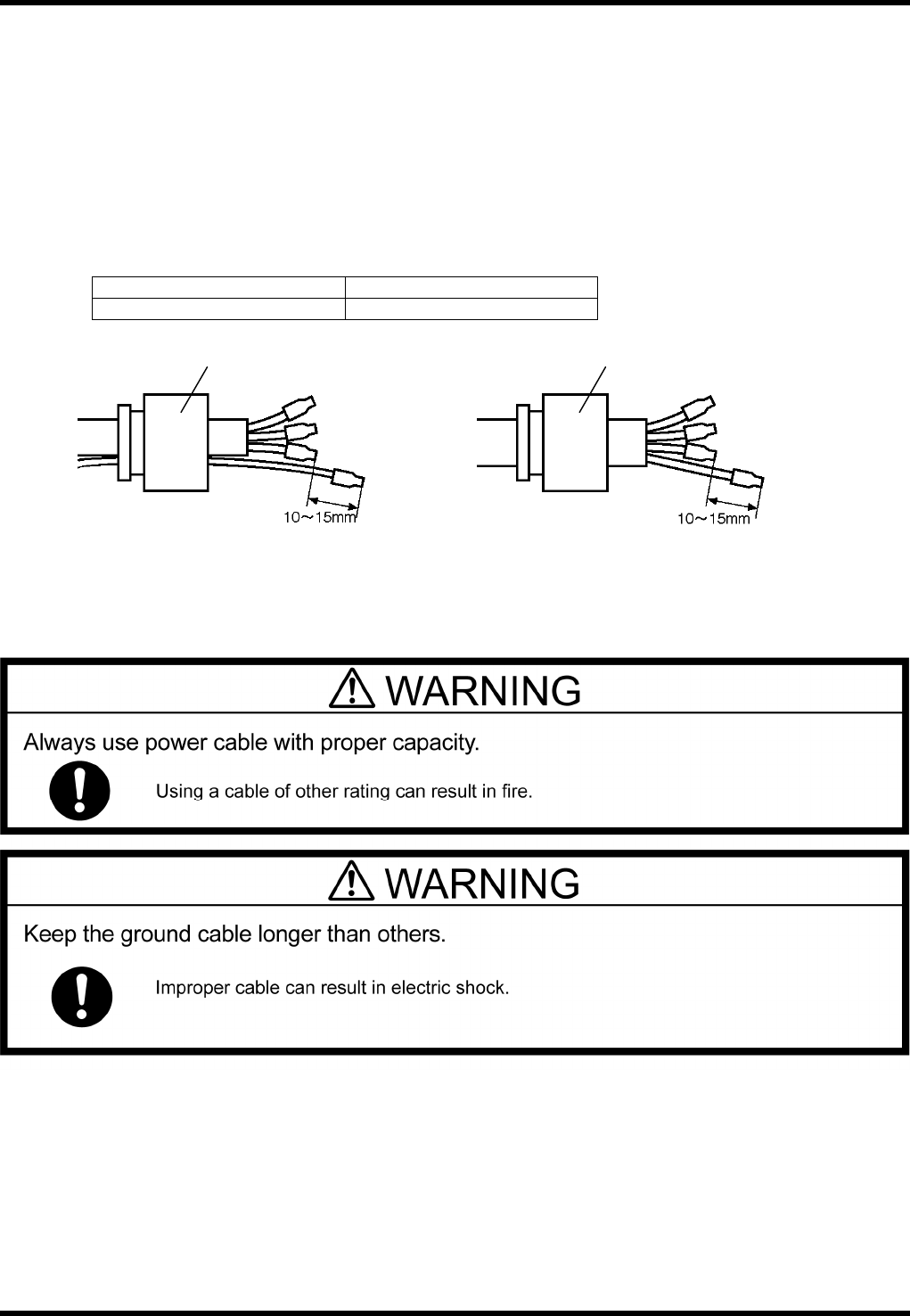

Cable gland
3-core cable and
1-core ground cable
L1
L2
L3
PE
Cable gland
4-core cable
L1
L2
L3
PE
RL131
MAINTENANCE MANUAL
3.2 Connecting the Power Supply
DA8MEC-11-020-A0
3.2-3

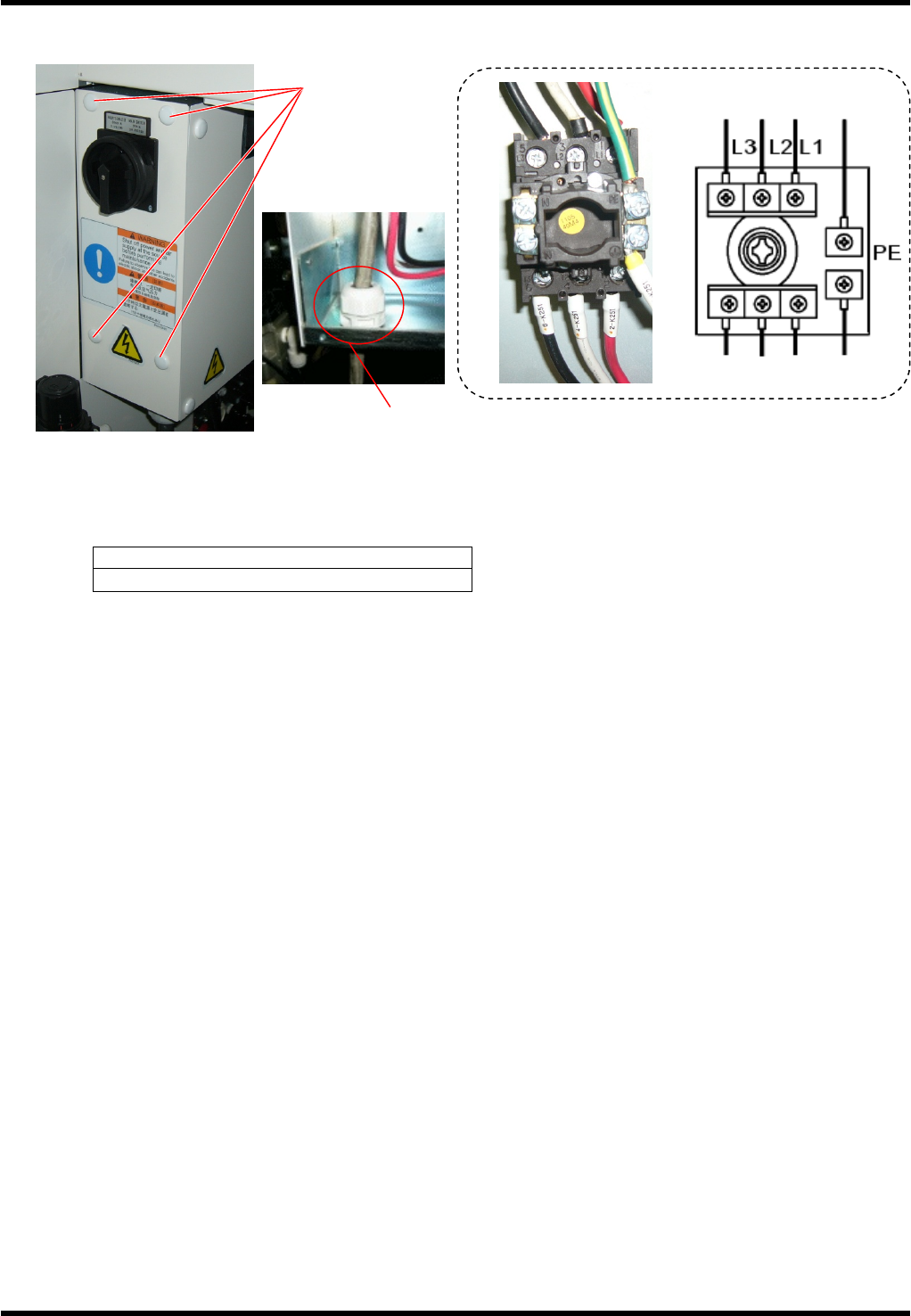

Connecting Cables
Turn OFF the power switch of the distribution panel.
Connect the distribution panel to the input terminals of the main switch by 3-core cable and one core
protective ground cable or 4-core cable (one for protective earth). The protective earth (PE) must be
connected.
Screw tightening torque
1.6 N×m
Fix the power cable securely with the cable gland (SC lock).
Check that the cable is not loosened under a tension of 100 N.
Inside of the machine
Factory power
Screw cramp x 4
Cable gland (SC lock)
RL131
MAINTENANCE MANUAL
3.2 Connecting the Power Supply
DA8MEC-11-020-A0
3.2-4

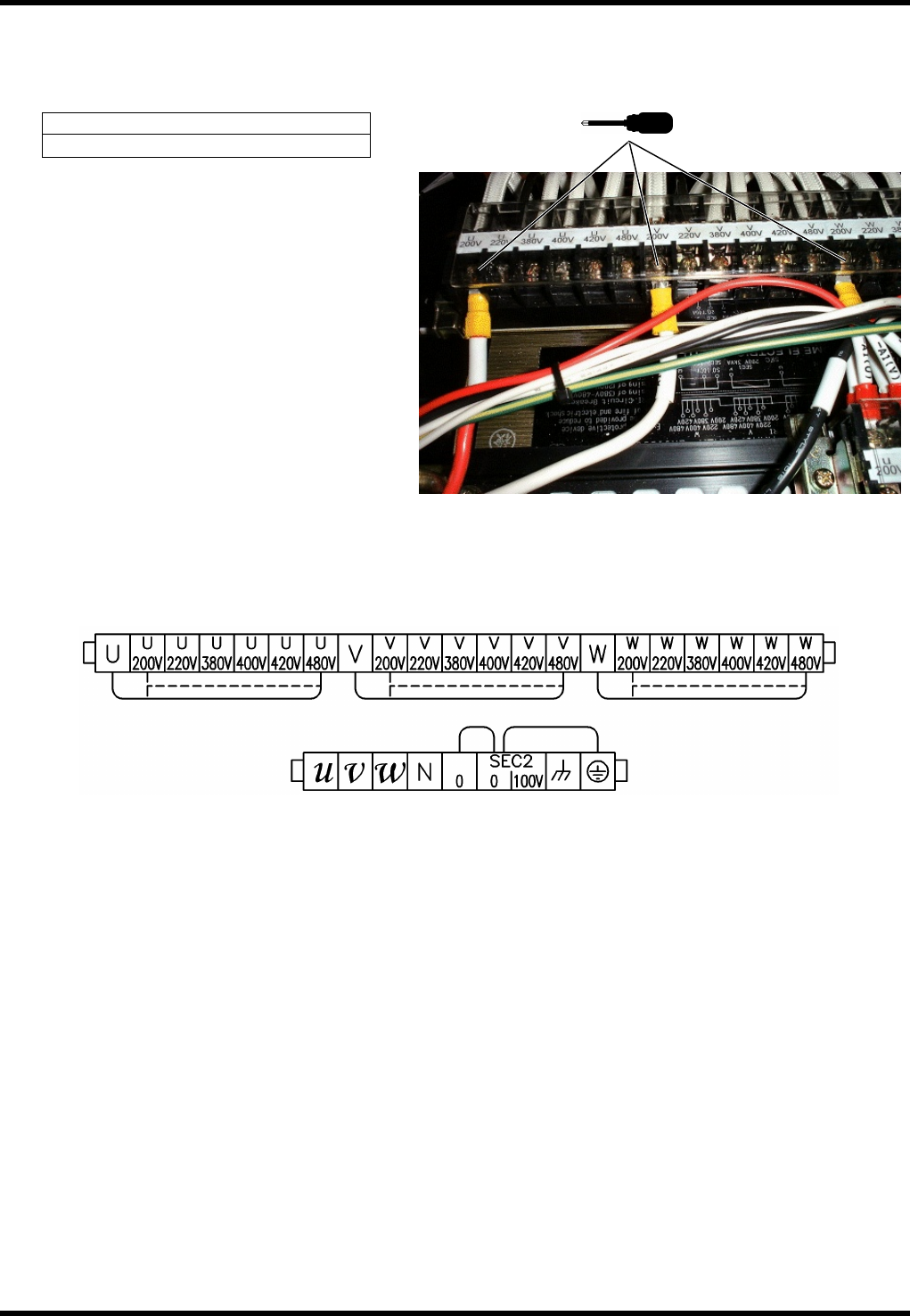

3.2.3 Setting Step-down Transformer
Turn OFF the power switch of the distribution panel.
Connect U, V and W to an appropriate terminal of the voltage respectively.
Screw tightening torque
2.5 N×m
Terminal layout
Output terminal
U, V, W: 3f200V
0, 100V: 1f100V
Input terminal
Select from 200 / 220 / 380
/ 400 / 420 / 480
