1.7 GEM Compliance Statement
GEM COMPLIANCE STATEMENT
FUNDAMENTAL GEM REQUIREMENTS IMPLEMENTED
COMPLIANT
State Models
✓Yes ✓ Yes
Equipment Processing States
✓ Yes ✓ Yes
S1,F13/F14 Scenario
✓ Yes ✓ Yes
Event Notification
✓ Yes ✓ Yes
On-line Identification
✓ Yes ✓ Yes
Error Messages
✓ Yes ✓ Yes
Control (Operator Initiated)
✓ Yes ✓ Yes
Documentation
✓ Yes ✓ Yes
ADDITIONAL CAPABILITIES IMPLEMENTED COMPLIANT
Establish Communications
✓ Yes ✓ Yes
Dynamic Event Report Configuration
✓ Yes ✓ Yes
Variable Data Collection
✓ Yes ✓ Yes
Trace Data Collection
✓ Yes ✓ Yes
Status Data Collection
✓ Yes ✓ Yes
Alarm Management
✓ Yes ✓ Yes
Remote Control (1)
✓ Yes
¨ No
Equipment Constants
✓ Yes ✓ Yes
Process Program Management (2) ¨ No ¨ No
Material Movement
✓ Yes ✓ Yes
Equipment Terminal Services
✓ Yes ✓ Yes
Clock
✓ Yes ✓ Yes
Limits Monitoring
✓ Yes ✓ Yes
Spooling
✓ Yes ✓ Yes
Control (Host Initiated)
✓ Yes ✓ Yes
(1) : Remote commands, only Start and Stop are available in this stage.
(2) : Process Program Management is not implemented until a later stage.
1.8 Terminology
The following terms are used throughout the document to refer to the various entities
interfacing with the SIPLACE:
SIPLACE GEM SW Version GEM 505.01 HOST Interface Manual
Page 14 of 236 ©Siemens AG, all rights reserved
Equipment The SIPLACE with GEM/SECS II-Interface
Operator The person who physically has access to the equipment’s material port(s)
and control panel. This is the person who is operating the SIPLACE.
Host The computer which is connected to the equipment via the SECSII-interface
1.9 Machine Areas
1.9.1 Machine Areas of a SIPLACE HF Machine

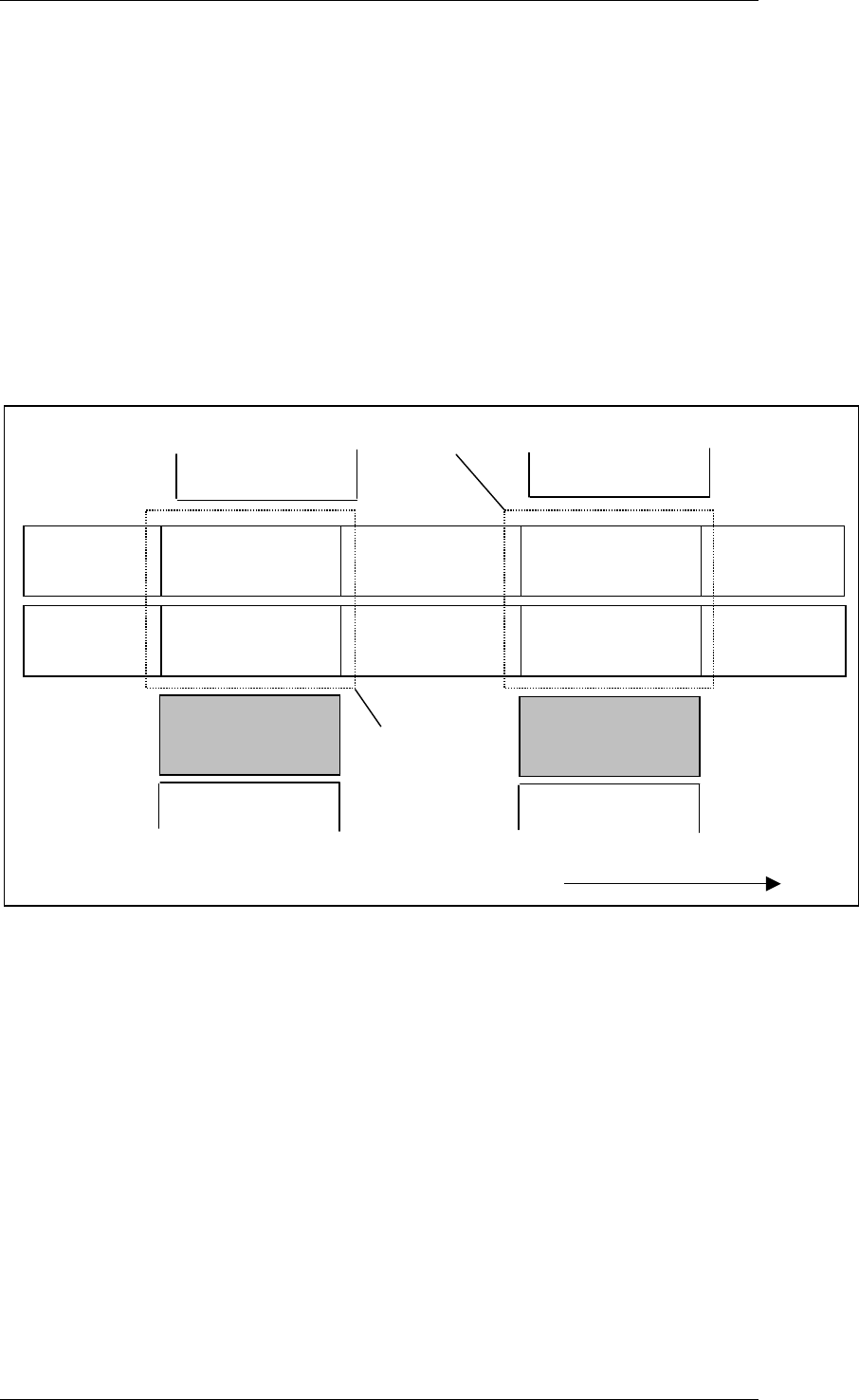

The figure below provides a diagrammatic overview of the individual areas of a
SIPLACE HF placement station.
TWIN-Input
conveyor
TWIN-First
Processing
conveyor
TWIN-Output
conveyor
Input
conveyor
First Processing
conveyor
Output
conveyor
Direction of transport
Conveyor 2
(left)
Conveyor 1
(right)
Gantry 3
Head 3
Location
3
Location
2
TWIN-Inter-
mediate conveyor
TWIN-Second
Processing
conveyor
Intermediate
conveyor
Second Processing
conveyor
Location
4
Gantry 1
Head 1
Location
1
Processing 1
Area
Processing 2
Area
SIPLACE GEM SW Version GEM 505.01
HOST Interface Manual
©Siemens AG, all rights reserved page 15 of 236
1.9.2 Machine Areas of a SIPLACE HF/3 Machine
The figure below provides a diagrammatic overview of the individual areas of a
SIPLACE HF/3 placement station.
TWIN-Input
conveyor
TWIN-First
Processing
conveyor
TWIN-Output
conveyor
Input
conveyor
First Processing
conveyor
Output
conveyor
Direction of transport
Conveyor 2
(left)
Conveyor 1
(right)
Location
3
Location
2
TWIN-Inter-
mediate conveyor
TWIN-Second
Processing
conveyor
Intermediate
conveyor
Second Processing
conveyor
Gantry 4
Head 4
Location
4
Gantry 1
Head 1
Location
1
Processing 1
Area
Processing 2
Area
Gantry 3
Head 3
