SIPLACE GEM SW Version GEM 505.01 HOST Interface Manual Page 16 of 236 ©Siemens AG, all rights reserved 1.9.3 Machine Areas of a SIPLACE HS50 Machine The figure below provides a diagrammatic overview of the individual ar…

100%1 / 236
SIPLACE GEM SW Version GEM 505.01
HOST Interface Manual
©Siemens AG, all rights reserved page 15 of 236
1.9.2 Machine Areas of a SIPLACE HF/3 Machine

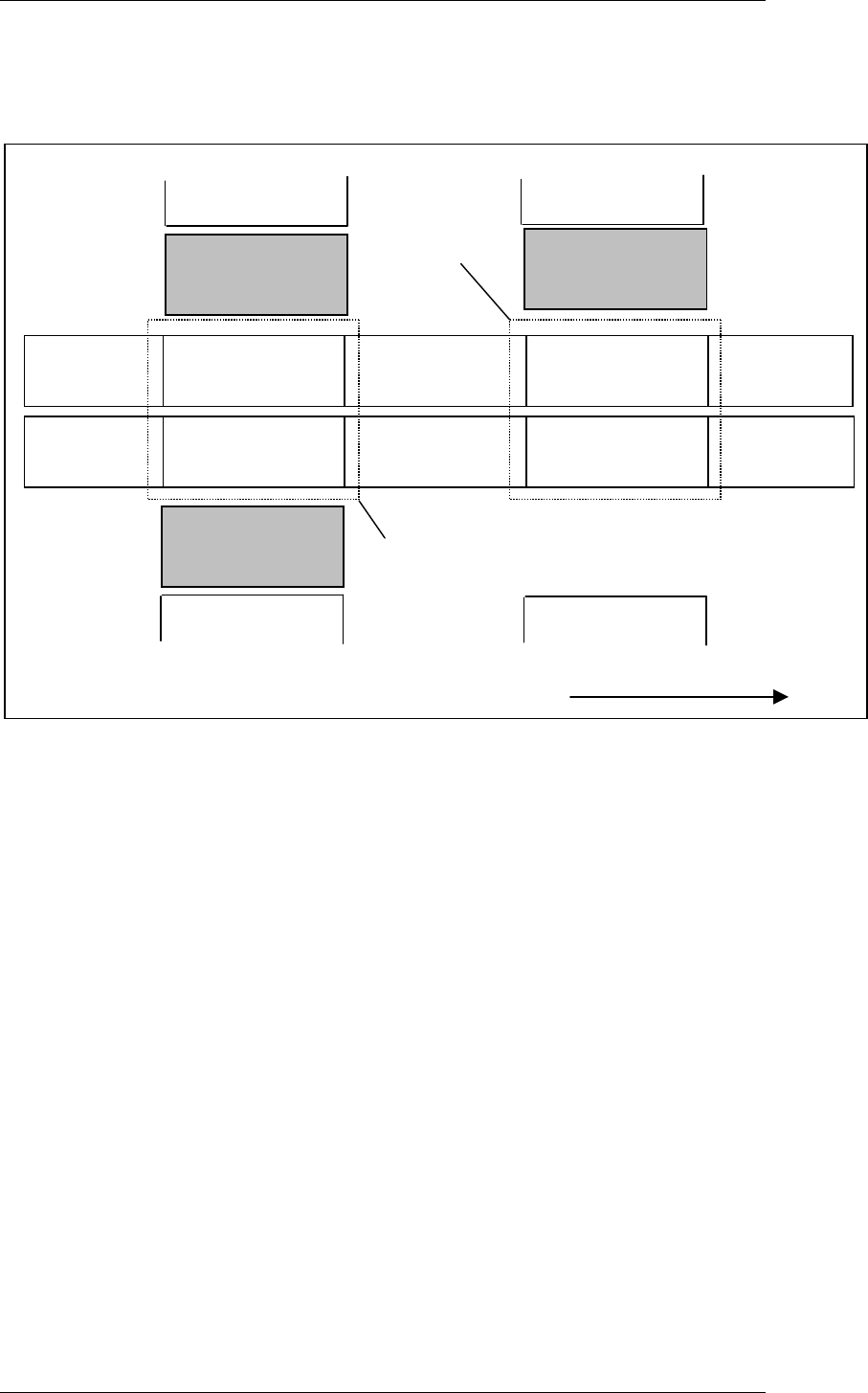

The figure below provides a diagrammatic overview of the individual areas of a
SIPLACE HF/3 placement station.
TWIN-Input
conveyor
TWIN-First
Processing
conveyor
TWIN-Output
conveyor
Input
conveyor
First Processing
conveyor
Output
conveyor
Direction of transport
Conveyor 2
(left)
Conveyor 1
(right)
Location
3
Location
2
TWIN-Inter-
mediate conveyor
TWIN-Second
Processing
conveyor
Intermediate
conveyor
Second Processing
conveyor
Gantry 4
Head 4
Location
4
Gantry 1
Head 1
Location
1
Processing 1
Area
Processing 2
Area
Gantry 3
Head 3
SIPLACE GEM SW Version GEM 505.01 HOST Interface Manual
Page 16 of 236 ©Siemens AG, all rights reserved
1.9.3 Machine Areas of a SIPLACE HS50 Machine

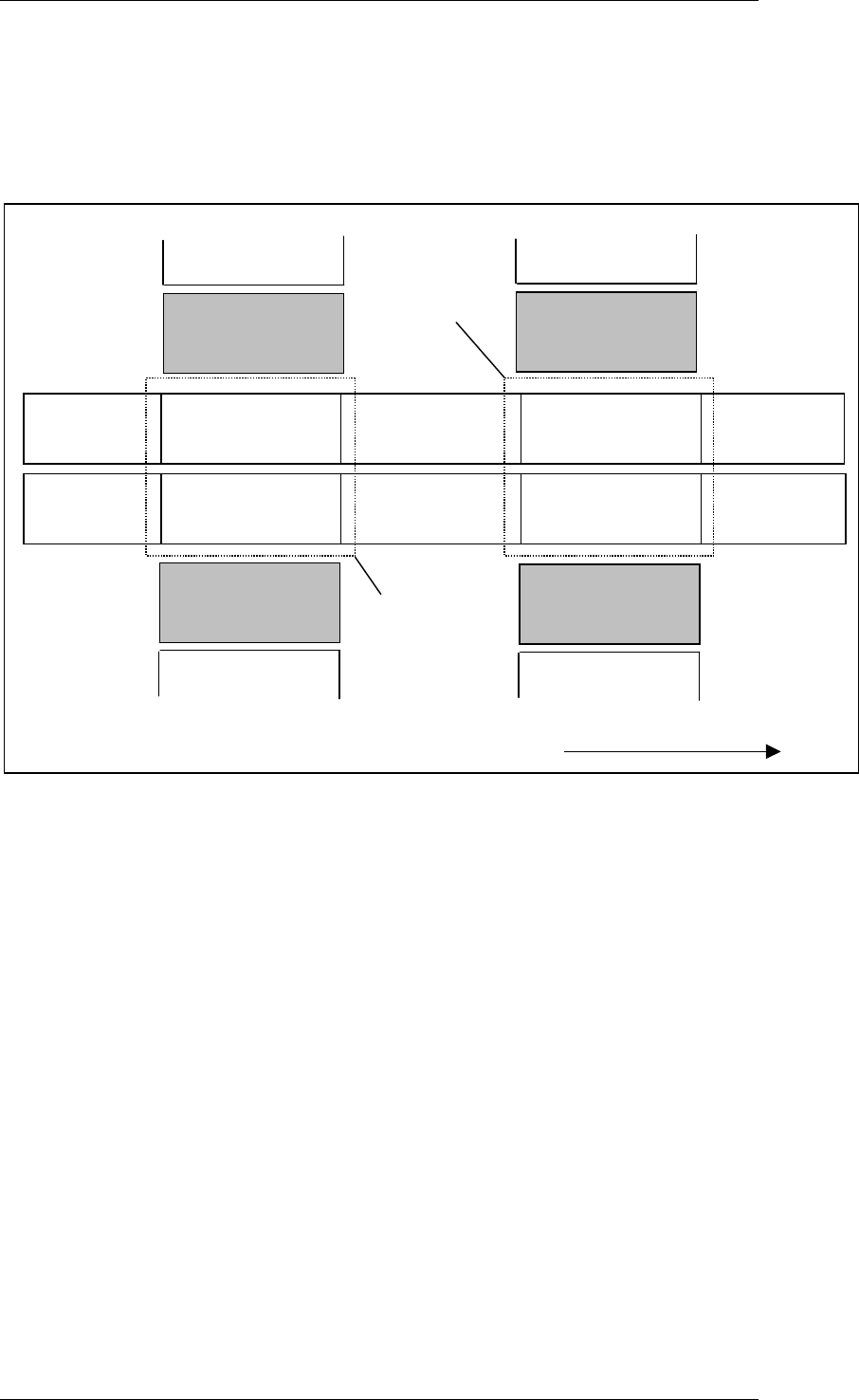

The figure below provides a diagrammatic overview of the individual areas of a
SIPLACE HS-50 placement station.
TWIN-Input
conveyor
TWIN-First
Processing
conveyor
TWIN-Output
conveyor
Input
conveyor
First Processing
conveyor
Output
conveyor
Direction of transport
Conveyor 2
(left)
Conveyor 1
(right)
Gantry 3
Head 3
Gantry 2
Head 2
Location
3
Location
2
TWIN-Inter-
mediate conveyor
TWIN-Second
Processing
conveyor
Intermediate
conveyor
Second Processing
conveyor
Gantry 4
Head 4
Location
4
Gantry 1
Head 1
Location
1
Processing 1
Area
Processing 2
Area
SIPLACE GEM SW Version GEM 505.01
HOST Interface Manual
©Siemens AG, all rights reserved page 17 of 236
1.9.4 Machine Areas of a SIPLACE S25 Machine
The layout of the feeder locations of the S25 machine depends on the configuration of
the individual machine. If there is an MTC on one side of the machine, the locations are
divided. Otherwise they are grouped into one location. The following figures illustrate the
individual variants.

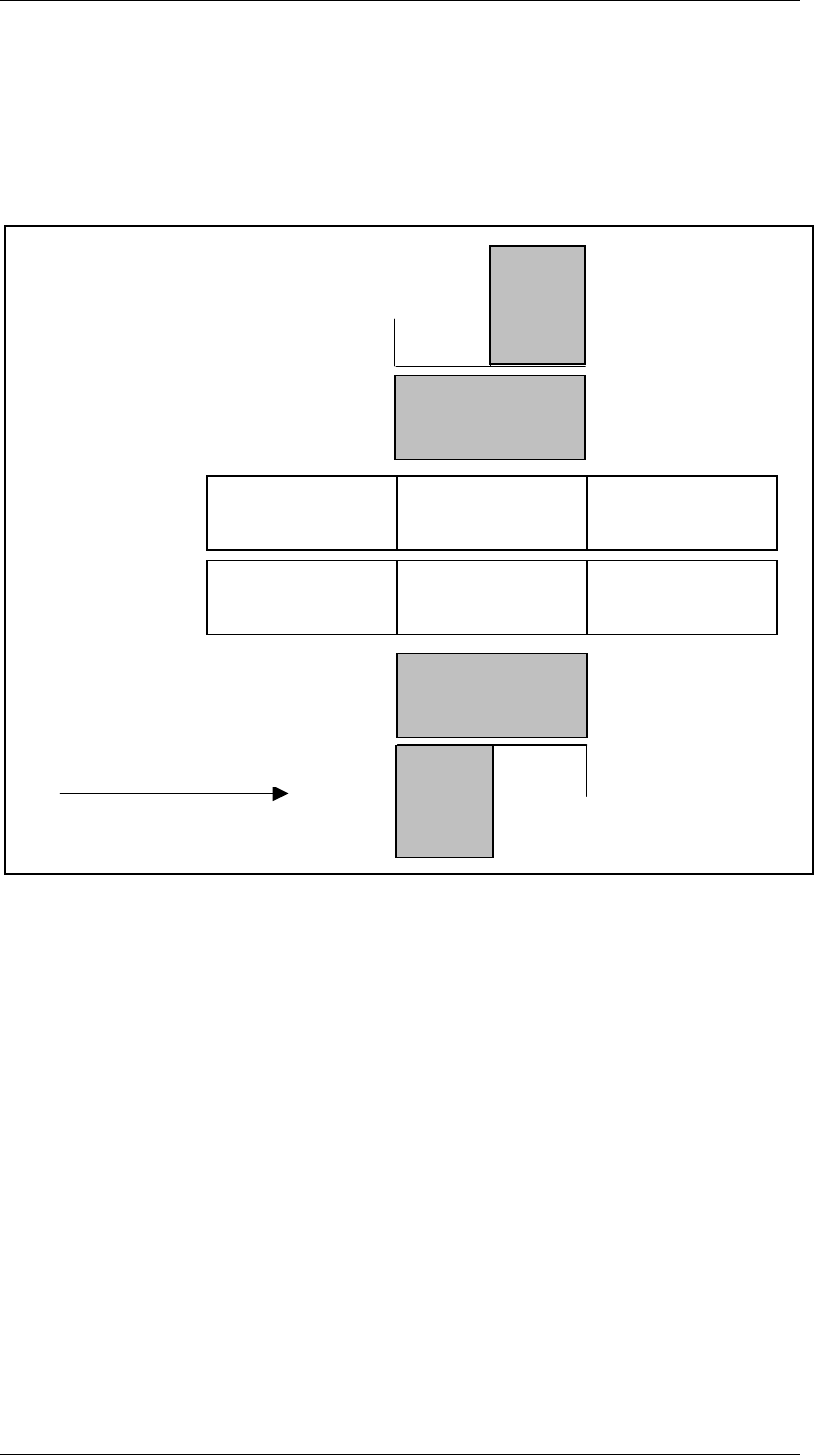

The figures shows the machine areas of an S25 with dual conveyor and 2 MTCs.
The conveyor belts are divided into 3 areas. There are 4 feeder locations.
TWIN-Input
conveyor
TWIN-First
Processing
conveyor
TWIN-Output
conveyor
Input
conveyor
First Processing
conveyor
Output
conveyor
Direction of transport
Conveyor 2 (left)
Conveyor 1
(i ht)
Gantry 1
Revolverhead 1
Gantry 2
Revolverhead 2
Location
3
MTC
Location
4
Location
2
Location
1
MTC
