P-0273-004 - 第128页

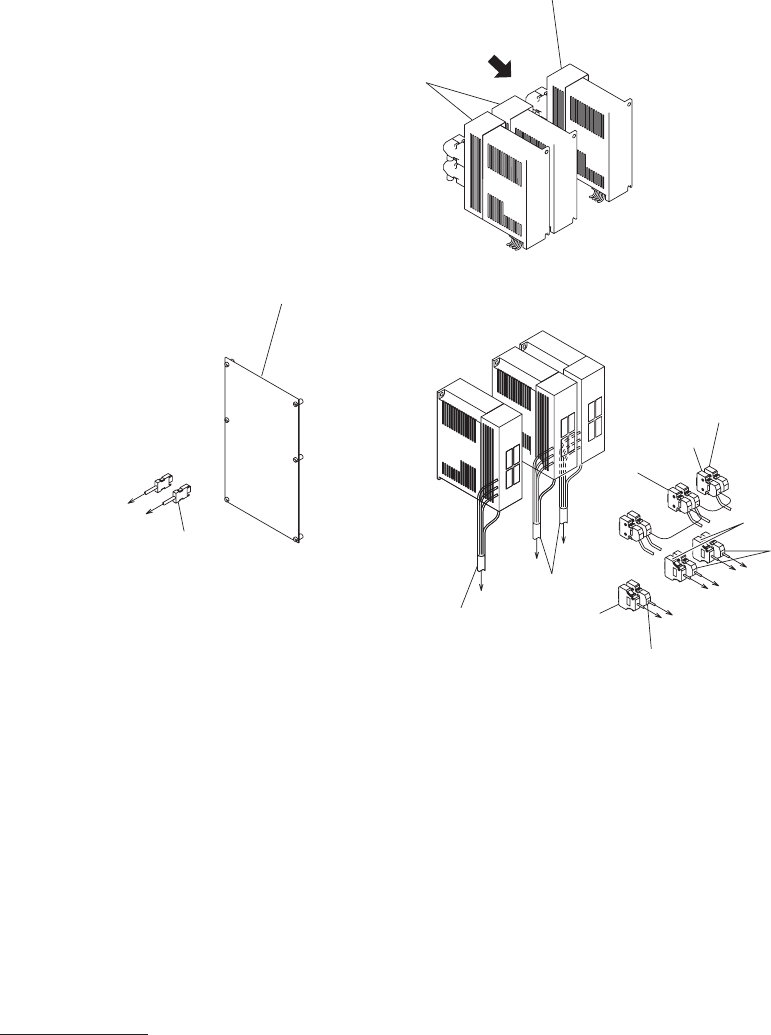

MODEL GXH-3PH 0712-002 架台下 A UNDERFRAME A Fig. BA-6 ケーブル２ Cable 2 -U05 A VIEW “A” See Fig.BA-1 Key No.66 See Fig.BA-1 Key No.70 See Fig.BA-4 Key No.381 551 -A63 -A63 -A53 577 580 581 582 578 579 559 560 561 X0502 X0501 X…
MODEL GXH-3PH
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
451 6301235417 CONNECTOR 1 845BA-100-061 4J100865
456 6301577425 CORD(SSCNET-X-Y1) 2 845BA-100-956 4W204177
457 6301577432 CORD(SSCNET-Y1-Y2) 2 845BA-100-957 4W204178
458 6301611525 CORD 1 845BA-100-958 4W204354
461 6301577548 CORD(M21) 2 845BA-100-961 4W204187
462 6301577555 CORD(M22) 2 845BA-100-962 4W204188
463 6301577562 CORD(M23) 2 845BA-100-963 4W204189
464 6301540306 CORD(A21-ENCODER) 2 845BA-100-964 4W204051
465 6301577494 CORD(A22-U24(ENCODER)) 2 845BA-100-965 4W204182
466 6301540313 CORD(U24(Y1)-ENCODER) 2 845BA-100-966 4W204052
467 6301577500 CORD(A23-U24(ENCODER)) 2 845BA-100-967 4W204183
468 6301540320 CORD(U24(Y2)-ENCODER) 2 845BA-100-968 4W204053
469 6301577517 CORD(A22-I/O) 2 845BA-100-969 4W204184
470 6301577524 CORD(A23-I/O) 2 845BA-100-970 4W204185
471 6301611501 CORD 2 845BA-100-971 4W204352
472 6301611532 CORD 1 845BA-100-972 4W204355
473 6301540337 CORD(X2408-B2201) 1 845BA-100-973 4W204054
474 6301540344 CORD(X2408-B2203) 1 845BA-100-974 4W204055
475 6301540351 CORD(X2410-X12103(B,D)) 1 845BA-100-975 4W204056
476 6301540368 CORD(X2410-X12103(A,C)) 1 845BA-100-976 4W204057
BA-5
BA-5 list-1
MODEL GXH-3PH
0712-002
架台下
A UNDERFRAME A
Fig. BA-6
ケーブル２
Cable 2
-U05
A
VIEW “A”
See Fig.BA-1
Key No.66
See Fig.BA-1
Key No.70
See Fig.BA-4
Key No.381
551
-A63
-A63
-A53
577
580
581
582
578
579
559
560
561
X0502
X0501
X531A
X531B
X5302
M53P
X15303
M63P
X16303
M63P
X16303
M53
M63
M63
X5303
X631A
X631A
X631B
X631B
X0704
X8501
BA-6 illust-1
MODEL GXH-3PH
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
551 6301505473 CORD(HLS-LINK) 1 845BA-100-951 4W203714
559 6301533063 CORD(X531B-X631A) 1 845BA-100-959 4W203895
560 6301577463 CORD(SSCNET-A63A-A63B) 1 845BA-100-960 4W204180
561 6301235417 CONNECTOR 1 845BA-100-061 4J100865
577 6301508511 CORD(M63) 2 845BA-100-977 4W203746
578 6301611440 CORD 2 845BA-100-978 4W204348
579 6301610726 CORD(CORD(A63-I/O)) 2 845BA-100-979 4W204346
580 6301531892 CORD(M53) 1 845BA-100-980 4W203879
581 6301611457 CORD 1 845BA-100-981 4W204349
582 6301611488 CORD 1 845BA-100-982 4W204351
BA-6
BA-6 list-1
