P-0273-004 - 第136页

MODEL GXH-3PH 0712-002 架台下 C UNDERFRAME C Fig. BC-3 200V 電源１ 200V Power Supply 1 267 . 269 272 . 269 263 . 264 267 . 269 263 . 264 266 262 274 274 262 274 274 262 274 271 274 274 270 278 270 274 277 261 274 275 . 276 286…

100%1 / 200
MODEL GXH-3PH
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
151 6301555317 PANEL 1 845BC-100-351 211C1334
152 6301329802 HINGE 2 845BC-100-352 226F0157
153 6301564302 HINGE 2 845BC-100-353 226F0173
161 6301611419 PANEL 1 845BC-100-451 211C1389
162 6301555362 BRACKET 2 845BC-100-452 211FC165
163 6301589039 BRACKET 2 845BC-100-453 211FC685
166 6301611426 PANEL 1 845BC-100-551 211C1390
173 6300007756 BOLT,HEX-SCT 14 M5X12 845BC-100-863 221A0030
175 6300010220 WASHER 14 BW5 845BC-100-865 221H0005
176 4111416705 WASHER SPR 5 14 845BC-100-866 221H0287
178 4111132803 SCR PAN 5X8 2 845BC-100-868 221E0518
179 4110881702 WASHER V 5X10X1 2 845BC-100-869 221H0317
180 4110082109 WASHER SPR 5 2 845BC-100-870 221H0286
181 4110024505 SCR FLT 5X8 16 845BC-100-871 221D0234
BC-2
BC-2 list-1
MODEL GXH-3PH
0712-002
架台下
C UNDERFRAME C

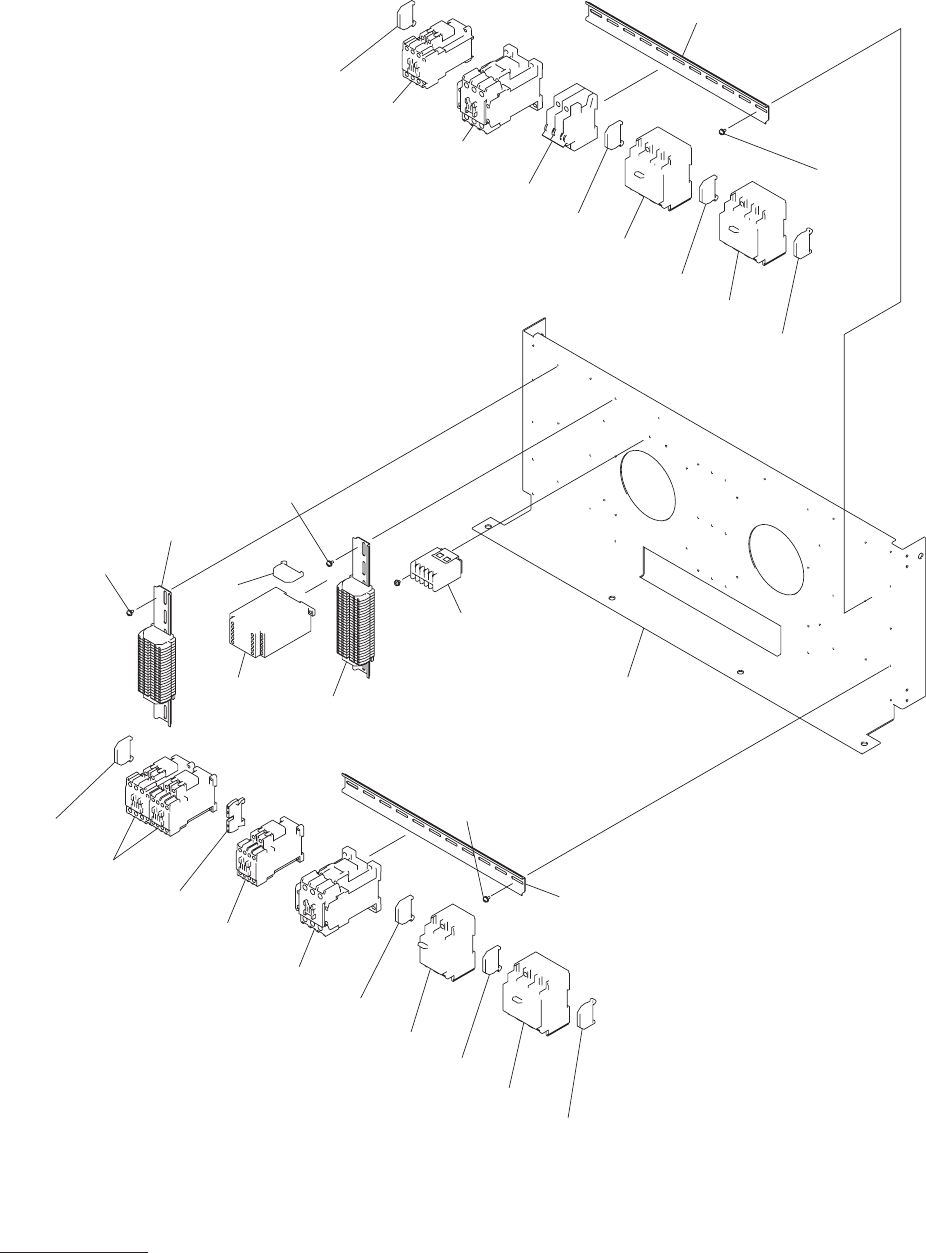

Fig. BC-3
200V
電源１
200V Power Supply 1
267
.
269
272
.
269
263
.
264
267
.
269
263
.
264
266
262
274
274
262
274
274
262
274
271
274
274
270
278
270
274
277
261
274
275
.
276
286
.
288
.
289
286
.
288
.
289
286
.
288
.
289
286
.
288
.
289
See Fig.BC-2
Key No.151
279
BC-3 illust-1
261 6300952704 RELAY 1 K3 845BC-100-361 4S200121
262 6301340012 BREAKER 3 Q201,Q203 845BC-100-362 4S230093
263 6301340029 EM-CONTACTOR 2 K33 845BC-100-363 4S210117
264 6301241586 COMP,CR 2 845BC-100-364 4F400025
266 6301340142 CIRCUIT PROTECTOR 1 Q204 845BC-100-366 4S250324
267 6300492194 EM-CONTACTOR 3 K28,K40,K50
845BC-100-367 4S210045
269 6300769166 COMP,CR 4 845BC-100-369 4F400008
270 6301612751 RAIL,WIRING 2 845BC-100-370 23N00105
271 6301340159 BREAKER 1 Q206 845BC-100-371 4S230094
272 6301340166 EM-CONTACTOR 1 K29 845BC-100-372 4S210118
274 6300911749 BRACKET,WIRING 9 845BC-100-374 23N10027
275 6300697278 RELAY 1 K1 845BC-100-375 4S200100
276 6300492422 BRACKET,WIRING 1 845BC-100-376 23N10019
277 6301542577 TERMINAL(TB-BC4) 1 845BC-100-377 4J320258
278 6301542591 TERMINAL(TB-BC2) 1 845BC-100-378 4J320260
279 6301400747 TERMINAL 1 845BC-100-379 4J320241
286 4110435004 SCR PAN 4X8 8 845BC-100-856 221E0510
288 4111414008 WASHER V 4X9X0.8 8 845BC-100-858 221H0315
289 4110081706 WASHER SPR 4 8 845BC-100-859 221H0283
MODEL GXH-3PH
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
BC-3
BC-3 list-1
