MODEL GXH-3PH 0712-002 架台下 C UNDERFRAME C Fig. BC-5 ケーブル１ Cable 1 -A21 -A22 -A23 -A23 -U24 -U24 -A22 -A21 464 470 465 469 467 471 456 457 451 463 462 461 472 473 476 468 466 466 468 475 474 464 461 462 463 471 469 465 46…
361 6301231303 FUSE,SPECIAL 2 F031,F032 845BC-100-461 4S300006
362 6301231310 FUSE HOLDER 2 845BC-100-462 4J200032
363 6301246338 CABLE JOINT,SLEEVE 8 845BC-100-463 4J310012
364 6301705309 CIRCUIT PROTECTOR 2 Q221 845BC-100-464 4S250388
365 6301340074 ACCESSORY,WIRING 2 845BC-100-465 23N30652
366 6301340081 ACCESSORY,WIRING 2 845BC-100-466 23N30653
367 6301240824 RAIL,WIRING 2 845BC-100-467 23N00098
368 6301705316 CIRCUIT PROTECTOR 4 Q222,Q223 845BC-100-468 4S250389
369 6301340067 ACCESSORY,WIRING 6 845BC-100-469 23N30651
370 6300911749 BRACKET,WIRING 4 845BC-100-470 23N10027
371 6301340036 CIRCUIT PROTECTOR 1 Q205 845BC-100-471 4S250321
376 6301542607 TERMINAL(TB-BA1,TB-BC1) 1 845BC-100-476 4J320261
381 6301254289 PROGRAM ROM 1 845BC-100-561 24000122
382 6301563251 P.C.B,MOUNT(UB63R) 1 U27 845BC-100-562 4B111583
383 6301493442 P.C.B,MOUNT 1 U05 845BC-100-563 4B111568
384 6301563268 TERMINAL(TB-BC3) 1 845BC-100-564 4J320265
388 4230228104 FUSE 250V 2A 1 F004 845BC-100-568 4S300025
389 4230228302 FUSE 250V 5A 2 F001,F041 845BC-100-569 4S300024
390 4230252109 FUSE 250V 6.3A 2 F002,F003 845BC-100-570 4S300023
391 6300137606 ACCESSORY,P.C.B 6 845BC-100-581 23L10024
392 6300137637 ACCESSORY,P.C.B 6 845BC-100-582 23L10025
395 4111130700 SCR PAN 3X16 6 845BC-100-852 221E0491
396 4110435004 SCR PAN 4X8 7 845BC-100-856 221E0510
397 4111132209 SCR PAN 4X16 6 845BC-100-857 221E0503
398 4111414008 WASHER V 4X9X0.8 7 845BC-100-858 221H0315
399 4110081706 WASHER SPR 4 7 845BC-100-859 221H0283
MODEL GXH-3PH
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
BC-4
BC-4 list-1

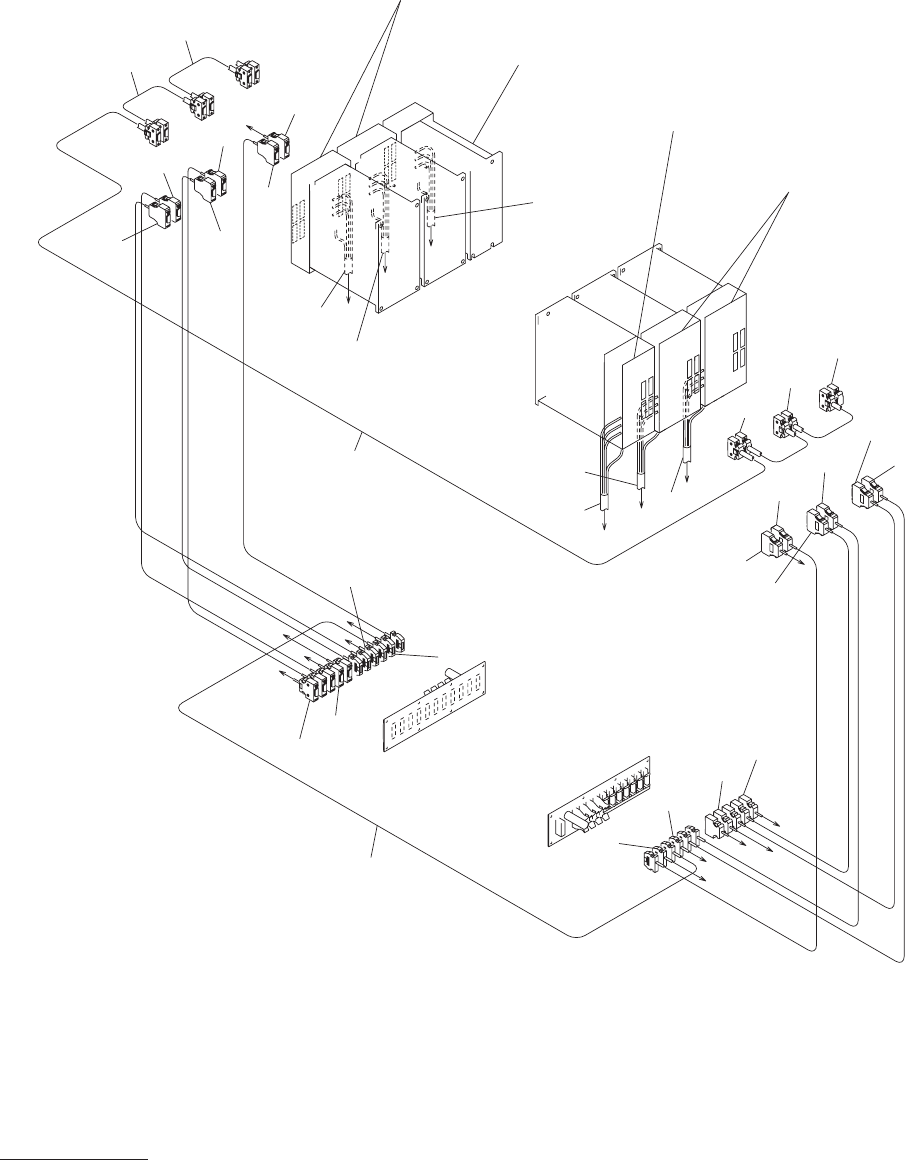

MODEL GXH-3PH
0712-002
架台下
C UNDERFRAME C
Fig. BC-5
ケーブル１
Cable 1
-A21
-A22
-A23
-A23
-U24
-U24
-A22
-A21
464
470
465
469
467
471
456
457
451
463
462
461
472
473
476
468
466
466
468
475
474
464
461
462
463
471
469
465
467
470
456
457
458
See Fig. BC-1
Key No.64
See Fig. BC-1
Key No.63
See Fig. BC-1
Key No.63
See Fig. BC-1
Key No.64
X211A
X2102
X2103
X2203
X2303
X2102
X2103
X2203
X2303
X2202
X2302
X12102
X2100
X2100
X2200
X2300
X2200
X2300
X12201
X12301
X39401
B2201
X12103
X12102
X12201
X12301
X49401
X12103
B2203
X2202
X2401
X2401
X2405
X2405
X2411
X2411
X2302
X211B
X221A
X221B
X231A
X231B
X211A
X211B
X221A
X221B
X231A
X231B
BC-5 illust-1
MODEL GXH-3PH
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
451 6301235417 CONNECTOR 1 845BC-100-061 4J100865
456 6301577425 CORD(SSCNET-X-Y1) 2 845BC-100-956 4W204177
457 6301577432 CORD(SSCNET-Y1-Y2) 2 845BC-100-957 4W204178
458 6301611525 CORD 1 845BC-100-958 4W204354
461 6301577548 CORD(M21) 2 845BC-100-961 4W204187
462 6301577555 CORD(M22) 2 845BC-100-962 4W204188
463 6301577562 CORD(M23) 2 845BC-100-963 4W204189
464 6301540306 CORD(A21-ENCODER) 2 845BC-100-964 4W204051
465 6301577494 CORD(A22-U24(ENCODER)) 2 845BC-100-965 4W204182
466 6301540313 CORD(U24(Y1)-ENCODER) 2 845BC-100-966 4W204052
467 6301577500 CORD(A23-U24(ENCODER)) 2 845BC-100-967 4W204183
468 6301540320 CORD(U24(Y2)-ENCODER) 2 845BC-100-968 4W204053
469 6301577517 CORD(A22-I/O) 2 845BC-100-969 4W204184
470 6301577524 CORD(A23-I/O) 2 845BC-100-970 4W204185
471 6301611501 CORD 2 845BC-100-971 4W204352
472 6301611549 CORD 1 845BC-100-972 4W204356
473 6301540337 CORD(X2408-B2201) 1 845BC-100-973 4W204054
474 6301540344 CORD(X2408-B2203) 1 845BC-100-974 4W204055
475 6301540351 CORD(X2410-X12103(B,D)) 1 845BC-100-975 4W204056
476 6301540368 CORD(X2410-X12103(A,C)) 1 845BC-100-976 4W204057
