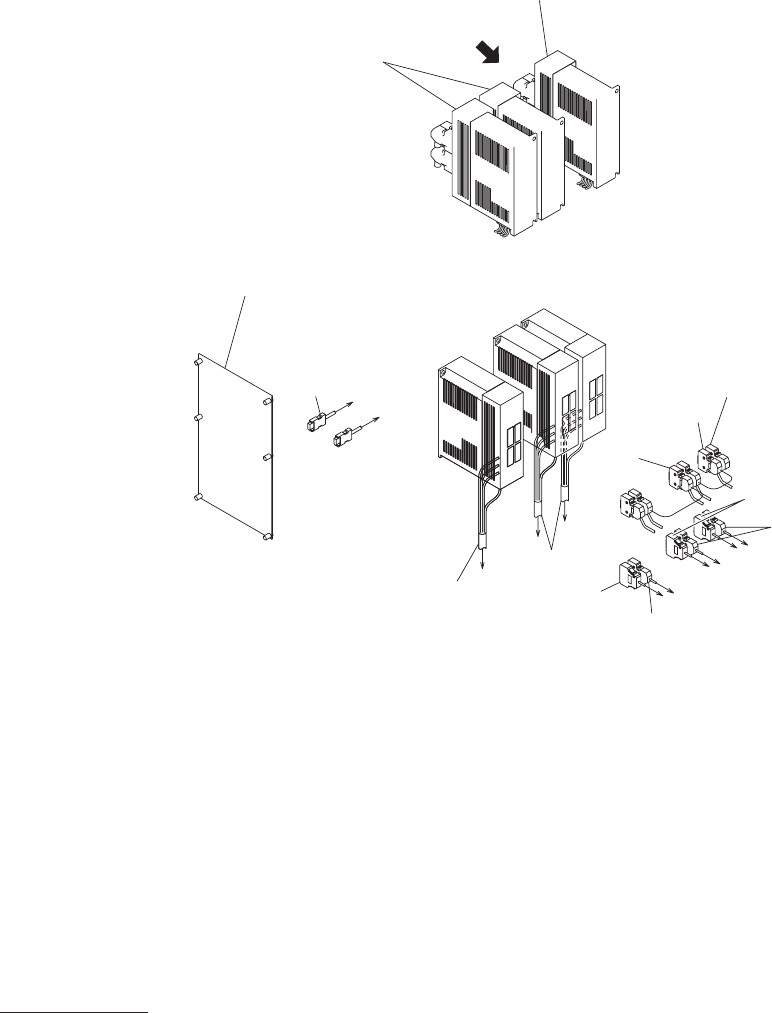

MODEL GXH-3PH 0712-002 架台下 C UNDERFRAME C Fig. BC-6 ケーブル２ Cable 2 -A63 -A63 -A53 577 580 581 582 559 560 A VIEW “A” 561 See Fig.BC-1 Key No.70 See Fig.BC-1 Key No.66 See Fig.BC-4 Key No.381 -U05 551 578 579 X0502 X531A X…
MODEL GXH-3PH
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
451 6301235417 CONNECTOR 1 845BC-100-061 4J100865
456 6301577425 CORD(SSCNET-X-Y1) 2 845BC-100-956 4W204177
457 6301577432 CORD(SSCNET-Y1-Y2) 2 845BC-100-957 4W204178
458 6301611525 CORD 1 845BC-100-958 4W204354
461 6301577548 CORD(M21) 2 845BC-100-961 4W204187
462 6301577555 CORD(M22) 2 845BC-100-962 4W204188
463 6301577562 CORD(M23) 2 845BC-100-963 4W204189
464 6301540306 CORD(A21-ENCODER) 2 845BC-100-964 4W204051
465 6301577494 CORD(A22-U24(ENCODER)) 2 845BC-100-965 4W204182
466 6301540313 CORD(U24(Y1)-ENCODER) 2 845BC-100-966 4W204052
467 6301577500 CORD(A23-U24(ENCODER)) 2 845BC-100-967 4W204183
468 6301540320 CORD(U24(Y2)-ENCODER) 2 845BC-100-968 4W204053
469 6301577517 CORD(A22-I/O) 2 845BC-100-969 4W204184
470 6301577524 CORD(A23-I/O) 2 845BC-100-970 4W204185
471 6301611501 CORD 2 845BC-100-971 4W204352
472 6301611549 CORD 1 845BC-100-972 4W204356
473 6301540337 CORD(X2408-B2201) 1 845BC-100-973 4W204054
474 6301540344 CORD(X2408-B2203) 1 845BC-100-974 4W204055
475 6301540351 CORD(X2410-X12103(B,D)) 1 845BC-100-975 4W204056
476 6301540368 CORD(X2410-X12103(A,C)) 1 845BC-100-976 4W204057
BC-5
BC-5 list-1
MODEL GXH-3PH
0712-002
架台下
C UNDERFRAME C
Fig. BC-6
ケーブル２
Cable 2
-A63
-A63
-A53
577
580
581
582
559
560
A
VIEW “A”
561
See Fig.BC-1
Key No.70
See Fig.BC-1
Key No.66
See Fig.BC-4
Key No.381
-U05
551
578
579
X0502
X531A
X531B
X5302
M53P
X15303
M63P
X16303
M63P
X16303
M53
M63
M63
X5303
X631A
X631A
X631B
X631B
X10502
X0501
X8501
BC-6 illust-1
MODEL GXH-3PH
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
551 6301505473 CORD(HLS-LINK) 1 845BC-100-951 4W203714
559 6301533070 CORD(X531B-X631A) 1 845BC-100-959 4W203896
560 6301577470 CORD(SSCNET-A63C-A63D) 1 845BC-100-960 4W204181
561 6301235417 CONNECTOR 1 845BC-100-061 4J100865
577 6301508511 CORD(M63) 2 845BC-100-977 4W203746
578 6301611440 CORD 2 845BC-100-978 4W204348
579 6301610726 CORD(CORD(A63-I/O)) 2 845BC-100-979 4W204346
580 6301531892 CORD(M53) 1 845BC-100-980 4W203879
581 6301611471 CORD 1 845BC-100-981 4W204350
582 6301611488 CORD 1 845BC-100-982 4W204351
BC-6
BC-6 list-1
