P-0273-004 - 第149页
MODEL GXH-3PH 1004-004 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE 151 6301587264 PLA TE 2 845BL-100-151 21 1DD066 152 6301593388 BRACKET 2 845BL-100-152 21 1FC728 153 6300930061 ACCESSORY ,P .C.B 4 845BL-1…

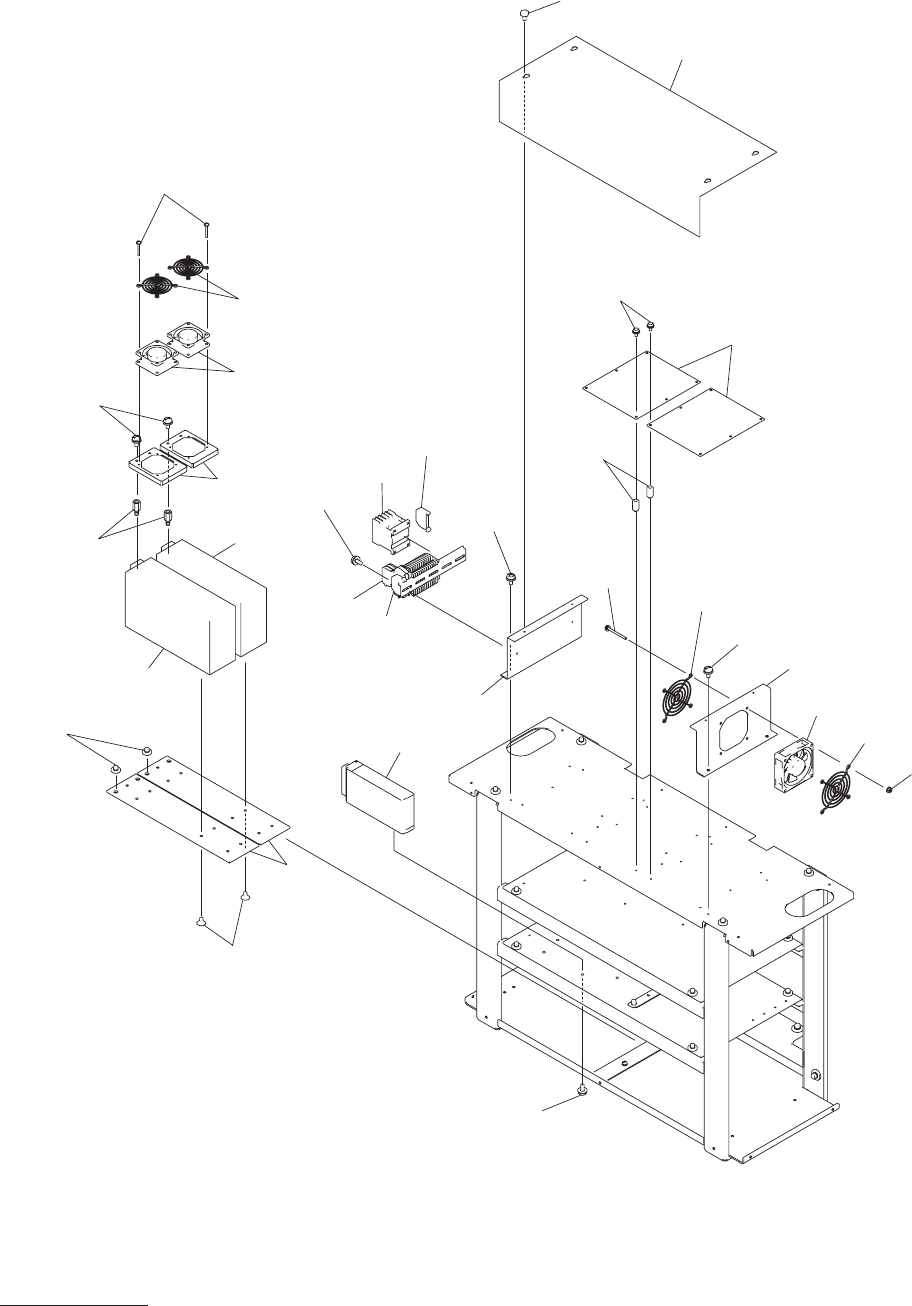

MODEL GXH-3PH
0712-002
架台下電装
BOX
部 左
UNDERFRAME ELECTRICAL BOX
SECTION LEFT
Fig. BL-2
電装部
Electrical Section
169
192
.
193
.
195
185
.
187
.
188
182
.
183
181
.
184
.
183
186
.
187
185
.
187
.
188
185
.
187
.
188
185
.
187
.
188
181
.
184
.
183
191
190
151
152
156
157
158
161
162
164
163
173
177
174
172
171
172
189
.
187
166
175
176
.
180
153
BL-2 illust-1
MODEL GXH-3PH
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
151 6301587264 PLATE 2 845BL-100-151 211DD066
152 6301593388 BRACKET 2 845BL-100-152 211FC728
153 6300930061 ACCESSORY,P.C.B 4 845BL-100-153 23L10063
156 6301590844 BRACKET 1 845BL-100-251 211FC706
157 6301590851 BRACKET 1 845BL-100-252 211FC707
158 6301555416 COVER 1 845BL-100-253 211AB830
161 6301242293 UNIT,POWER 1 G2 845BL-100-161 4U200255
162 6301335889 UNIT,POWER 1 G4 845BL-100-162 4U200267
163 6301514567 ACCESSORY,MOT-M 2 845BL-100-163 23M00069
164 6301514574 MOTOR,DC 2 M171,M172 845BL-100-164 4M130033
166 6301613994 ACCESSORY,P.C.B 12 845BL-100-281 23L10106
169 6301569048 UNIT,POWER 1 G6 845BL-100-064 4U200323
171 6301405490 MOTOR,DC 1 M122 845BL-100-261 4M130025
172 6301399799 ACCESSORY,MOT-M 2 845BL-100-262 23M00061
173 6300941418 EM-CONTACTOR 1 K38 845BL-100-263 4S210086
174 4230228302 FUSE 250V 5A 2 F033,F034 845BL-100-264 4S300024
175 6301518701 UNIT,DRIVER 2 A41,A51 845BL-100-265 4U240477
176 6301542621 TERMINAL(TB-BL1) 1 845BL-100-266 4J320263
177 6300911749 BRACKET,WIRING 1 845BL-100-267 23N10027
180 6301268736 ACCESSORY,WIRING 1 845BL-100-270 23N30610
181 4110420703 SCR PAN 3X8 14 845BL-100-851 221E0499
182 4111619106 SCR PAN 3X30 8 845BL-100-852 221E0494
183 4111191909 WASHER V 3X7X0.5 22 845BL-100-853 221H0311
184 4110864408 WASHER SPR 3 14 845BL-100-854 221H0280
185 4111131400 SCR PAN 4X6 8 845BL-100-855 221E0509
186 4111132407 SCR PAN 4X30 4 845BL-100-856 221E0506
187 4111414008 WASHER V 4X9X0.8 16 845BL-100-857 221H0315
188 4110081706 WASHER SPR 4 8 845BL-100-858 221H0283
189 4111188206 NUT HEX 4 4 845BL-100-859 221F0103
190 4111407208 SCR FLT 4X6 8 845BL-100-860 221D0224
191 4111404603 BOLT HEX 4X6 4 845BL-100-861 221B0139
192 6300007756 BOLT,HEX-SCT 4 M5X12 845BL-100-862 221A0030
193 6300010220 WASHER 4 BW5 845BL-100-863 221H0005
195 4111416705 WASHER SPR 5 4 845BL-100-865 221H0287
BL-2
BL-2 list-1
MODEL GXH-3PH
0712-002
架台下電装
BOX
部 左
UNDERFRAME ELECTRICAL BOX
SECTION LEFT
Fig. BL-3
ケーブル
Cable
-G06
-U27
-G04
-G02
268
See Fig. BL-2
Key No.176
See Fig. BA-4
Key No.382
See Fig. BA-4
Key No.376
See Fig. BL-2
Key No.169
See Fig. BL-2
Key No.161
285
286
269
267
284
See Fig. BL-2
Key No.162
X2398
G06
G02,04
BL-3 illust-1
