MODEL GXH-3PH 0712-002 3 72 . 73 . 75 51 53 55 54 52 1 M6 × 14 . SW6 . FW6 M6 × 14 . SW6 . FW6 64 65 66 M4 × 40 P AN . SW4 F . FW4 F M5 × 8 . SW5 . FW5 M4-1 F . FW4 F 72 . 73 . 75 72 . 73 . 75 72 . 74 . 75 72 . 73 . 75 7…
MODEL GXH-3PH
0712-002

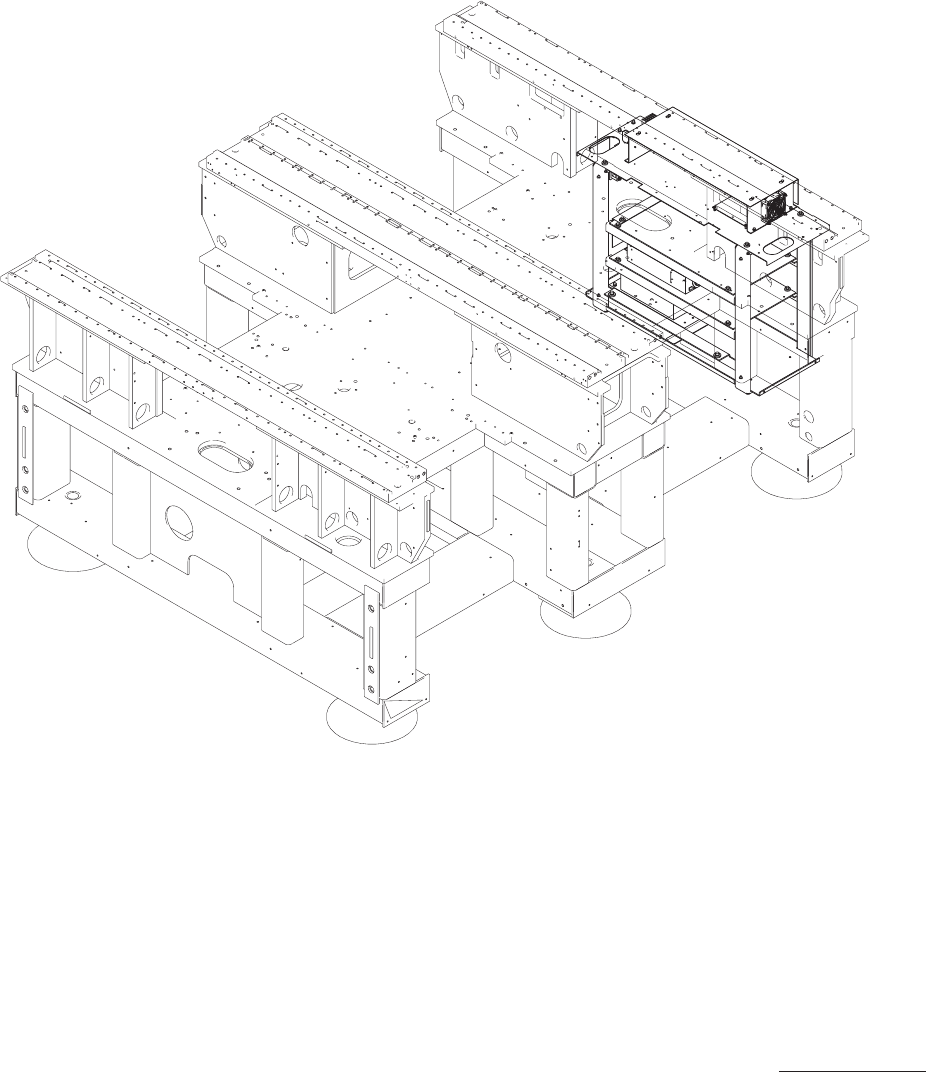

Fig. BR
架台下電装
BOX
部 右
UNDERFRAME ELECTRICAL BOX
SECTION RIGHT
BR illust-1
MODEL GXH-3PH
0712-002
3
72
.
73
.
75
51
53
55
54
52
1
M6×14
.
SW6
.
FW6
M6×14
.
SW6
.
FW6
64
65
66
M4×40 PAN
.
SW4 F
.
FW4 F
M5×8
.
SW5
.
FW5
M4-1 F
.
FW4 F
72
.
73
.
75
72
.
73
.
75
72
.
74
.
75
72
.
73
.
75
72
.
74
.
75
架台下電装
BOX
部 右
UNDERFRAME ELECTRICAL BOX
SECTION RIGHT
Fig. BR-1
フレーム部
Frame Section
BR-1 illust-1
1 6301579924 BOX(BR) 1 845BR-100-001 211B1303
3 6301564494 PLATE 1 845BR-100-003 211DC829
51 6301552514 BRACKET 1 845BR-100-051 211FC121
52 6301562049 SUPPORT 1 845BR-100-052 211K3400
53 6301564487 PLATE 1 845BR-100-053 211DC828
54 6301587417 PLATE 1 845BR-100-054 211DD067
55 6301518428 SUPPORT 1 845BR-100-055 211K3315
64 6301600963 BRACKET 1 845BR-100-254 211FC884
65 6301405506 MOTOR,DC 1 M178 845BR-100-255 4M130026
66 6301399805 ACCESSORY,MOT-M 1 845BR-100-256 23M00062
72 6300007756 BOLT,HEX-SCT 18 845BR-100-862 221A0030
73 6300010220 WASHER 14 845BR-100-863 221H0005
74 4110881702 WASHER V 5X10X1 4 845BR-100-864 221H0317
75 4111416705 WASHER SPR 5 18 845BR-100-865 221H0287
MODEL GXH-3PH
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
BR-1
BR-1 list-1
