MODEL GXH-3PH 0712-002 266 265 255 256 268 268 273 . 274 . 275 273 . 274 . 275 273 . 274 . 275 273 . 274 . 275 架台上全体部準備 OVERALL UPPERFRAME PREP ARA TION SECTION Fig. DX-3 パネル Panel DX-3 illust-1
151 6301187914 BREAKER 1 Q200 845DX-100-651 4S230080
152 6301387888 HANDLE 1 845DX-100-652 226C0213
153 6301543901 BRACKET 1 845DX-100-653 211FB991
154 6301558141 BRACKET 1 845DX-100-654 211FC204
155 6301187839 FILTER,NOISE 1 Z01 845DX-100-655 4F300073
156 6301168821 FILTER,NOISE 1 Z02 845DX-100-656 4F300071
165 6300007626 BOLT,HEX-SCT 2 M4X10 845DX-100-855 221A0017
166 6300010206 WASHER 2 BW3 845DX-100-856 221H0003
167 4111412905 WASHER SPR 4 2 845DX-100-857 221H0284
168 4110435004 SCR PAN 4X8 2 845DX-100-858 221E0510
169 4111414008 WASHER V 4X9X0.8 4 845DX-100-859 221H0315
170 4110081706 WASHER SPR 4 4 845DX-100-860 221H0283
173 6300007756 BOLT,HEX-SCT 4 M5X12 845DX-100-863 221A0030
174 6300010220 WASHER 4 BW5 845DX-100-864 221H0005
175 4111416705 WASHER SPR 5 4 845DX-100-865 221H0287
MODEL GXH-3PH
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
DX-2
DX-2 list-1
MODEL GXH-3PH
0712-002
266
265
255
256
268
268
273
.
274
.
275
273
.
274
.
275
273
.
274
.
275
273
.
274
.
275

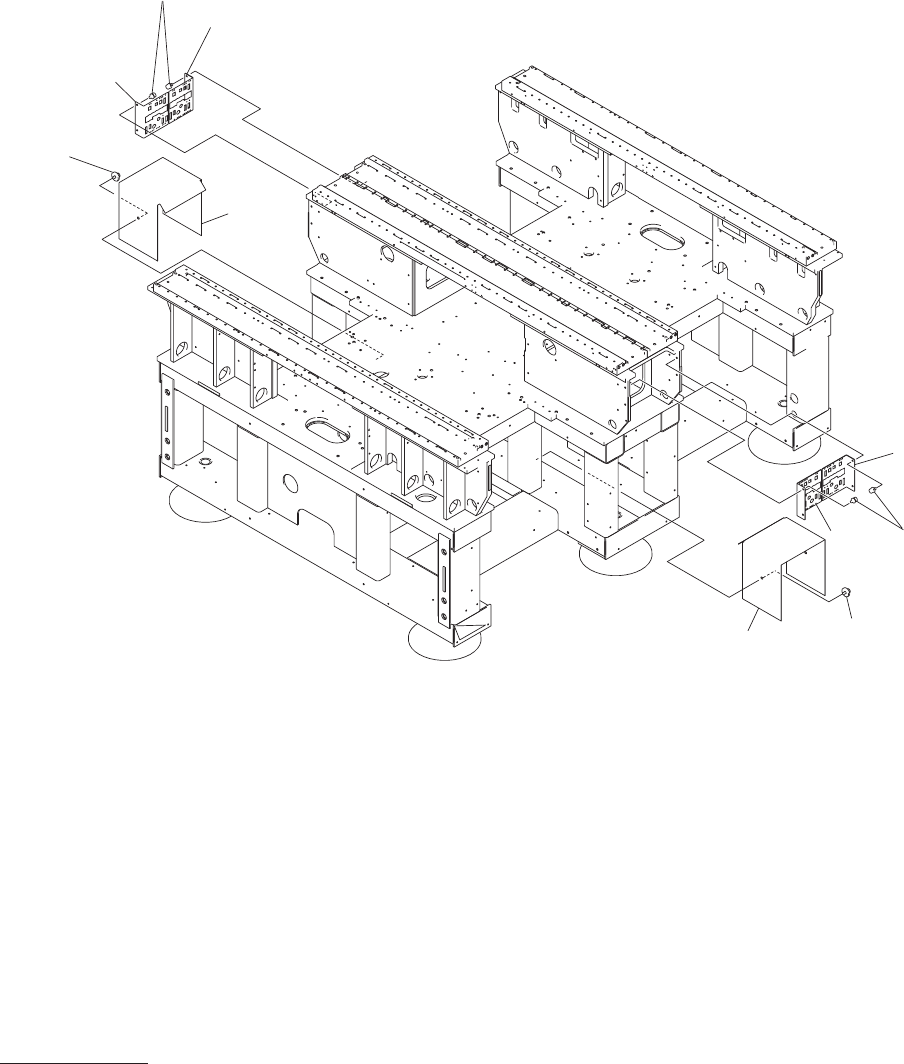

架台上全体部準備
OVERALL UPPERFRAME
PREPARATION SECTION
Fig. DX-3
パネル
Panel
DX-3 illust-1
255 6301617350 BRACKET 1 845BA-100-055 211FD091
256 6301617367 BRACKET 1 845BA-100-056 211FD092
265 6301617350 BRACKET 1 845BC-100-055 211FD091
266 6301617367 BRACKET 1 845BC-100-056 211FD092
268 6301555409 COVER 2 845DX-100-058 211AB829
273 6300007756 BOLT,HEX-SCT 12 M5X12 845DX-100-863 221A0030
274 6300010220 WASHER 12 BW5 845DX-100-864 221H0005
275 4111416705 WASHER SPR 5 12 845DX-100-865 221H0287
MODEL GXH-3PH
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
DX-3
DX-3 list-1
