P-0273-004 - 第173页
51 6301555379 COVER 1 845F A-100-051 21 1AB828 52 6301592312 BOX 1 845F A-100-052 21 1B1321 53 630161 1433 PLA TE 1 845F A-100-053 21 1DD376 54 6301552477 BRACKET 1 845F A-100-054 21 1FC120 55 630159241 1 COVER 1 845F A-…
MODEL GXH-3PH
1004-003
83
71
84
84
92-01
92
92-02
62
91
51
61
54
53
52
56
55
75
.
77
.
76
72
.
73
.
74
78
.
82
.
80
78
.
82
.
81
79
.
82
.
80
注)
Key No.61(○印)は重要保守部品となっております。交換方法については高度な
技術を要しますので、当社サービス員にご相談下さい。
Notice) The Key No. 61 (with a circle) is an important maintenance component.
Because high-grade technique is required for the replacement of this component,
consult our service personnel.
操作
PC
部
OPERATION PC SECTION
Fig. FA-1
フレーム部
Frame Section

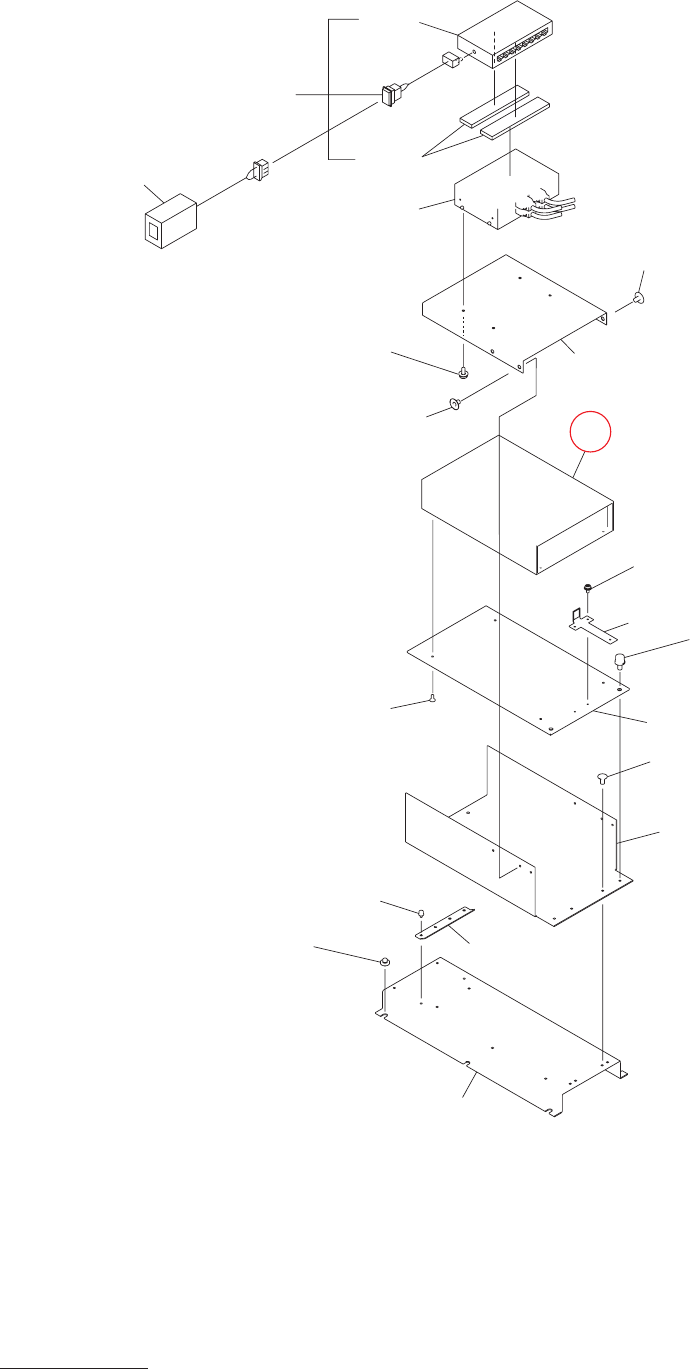

FA-1 illust-1
51 6301555379 COVER 1 845FA-100-051 211AB828
52 6301592312 BOX 1 845FA-100-052 211B1321
53 6301611433 PLATE 1 845FA-100-053 211DD376
54 6301552477 BRACKET 1 845FA-100-054 211FC120
55 6301592411 COVER 1 845FA-100-055 211AC277
56 6301518428 SUPPORT 1 845FA-100-056 211K3315
61 6301678870 EQUIPMENT(ASSEMBLED PC) 1 U71 845FA-100-151 4U260355
62 6301237152 UNIT,I/O 1 U73 845FA-100-152 4U250154
71 4110022600 SCR FLT 3X6 4 845FA-100-851 221D0216
72 4110420703 SCR PAN 3X8 2 845FA-100-852 221E0499
73 4111191909 WASHER V 3X7X0.5 2 845FA-100-853 221H0311
74 4110864408 WASHER SPR 3 2 845FA-100-854 221H0280
75 4111131400 SCR PAN 4X6 4 845FA-100-855 221E0509
76 4111414008 WASHER V 4X9X0.8 4 845FA-100-856 221H0314
77 4110081706 WASHER SPR 4 4 845FA-100-857 221H0283
78 6300007732 BOLT,HEX-SCT 4 M5X8 845FA-100-858 221A0028
79 6300007756 BOLT,HEX-SCT 4 M5X12 845FA-100-859 221A0030
80 6300010220 WASHER 6 BW5 845FA-100-860 221H0005
81 4110881702 WASHER V 5X10X1 2 845FA-100-861 221H0317
82 4111416705 WASHER SPR 5 8 845FA-100-862 221H0287
83 4110024505 SCR FLT 5X8 4 845FA-100-863 221D0234
84 4111408007 SCR TRS 5X6 4 845FA-100-864 221E0536
91 080300AF ASSY_ADAPTOR 1 080300AF
92 080300AG ASSY_HUB 1 080300AG
92 -01 6301469126 UNIT,I/O 1 U72 845FA-100-251 4U250209
92 -02 080300AP MECH PARTS(RUBBER MAGNET) 1 845FA-100-254 080300AP
MODEL GXH-3PH
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
FA-1
FA-1 list-1
MODEL GXH-3PH
1004-003
-U72
-U73
-U71
-U71
162
See Fig. FA-1
Key No.61
163
163
151
161
152
153
157
156
See Fig. FA-1
Key No.62
155
154
See Fig. FA-1
Key No.66
X7304
X7305
X7306
X7102
X7202
X7201
X7203
X7204
X7103
X7501
X7105
X7107
X7308
X7309
X17101
X0514
X7401
X7106
X7108
X9103
X9104
X7403
X7403
X8102
X8102
X7101
操作
PC
部
OPERATION PC SECTION
Fig. FA-2
ケーブル
Cable
FA-2 illust-1
