MODEL GXH-3PH 0909-003 B-6 illust-1 本体部 MAIN BODY SECTION Fig. B-6 ケーブル Cable FB-G300 See Fig. B-5 Key No.451 580 580-01 580 580-02 580-12 580-12 580 See Fig. B-1 Key No.54 See Fig. B-1 Key No.53 DET AIL X30 X30 X1300D1 …

Key No. PART No. PART NAME Q’ty REMARKS New Code

NOTE

MODEL GXH-3PH

1004-004

401 6301592510 ASSY,LIGHTING UNIT 4 E39 845B--100-301 0Z110011

402 6301416304 PLATE(LG2MM) 16 845B--100-302 211DB184

403 6301569697 MECH PARTS(GEL CHIP) 32 845B--100-303 226J2380

404 6301600062 BRACKET 4 845B--100-304 211FC868

405 6301600079 BRACKET 4 845B--100-305 211FC869

455 4110435004 SCR PAN 4X8 16 845B--100-525 221E0510

463 4110081706 WASHER SPR 4 16 845B--100-533 221H0283

464 4111192104 WASHER V 4X9X0.8 16 845B--100-534 221H0314

B-5 list-1

B-5

MODEL GXH-3PH

0909-003

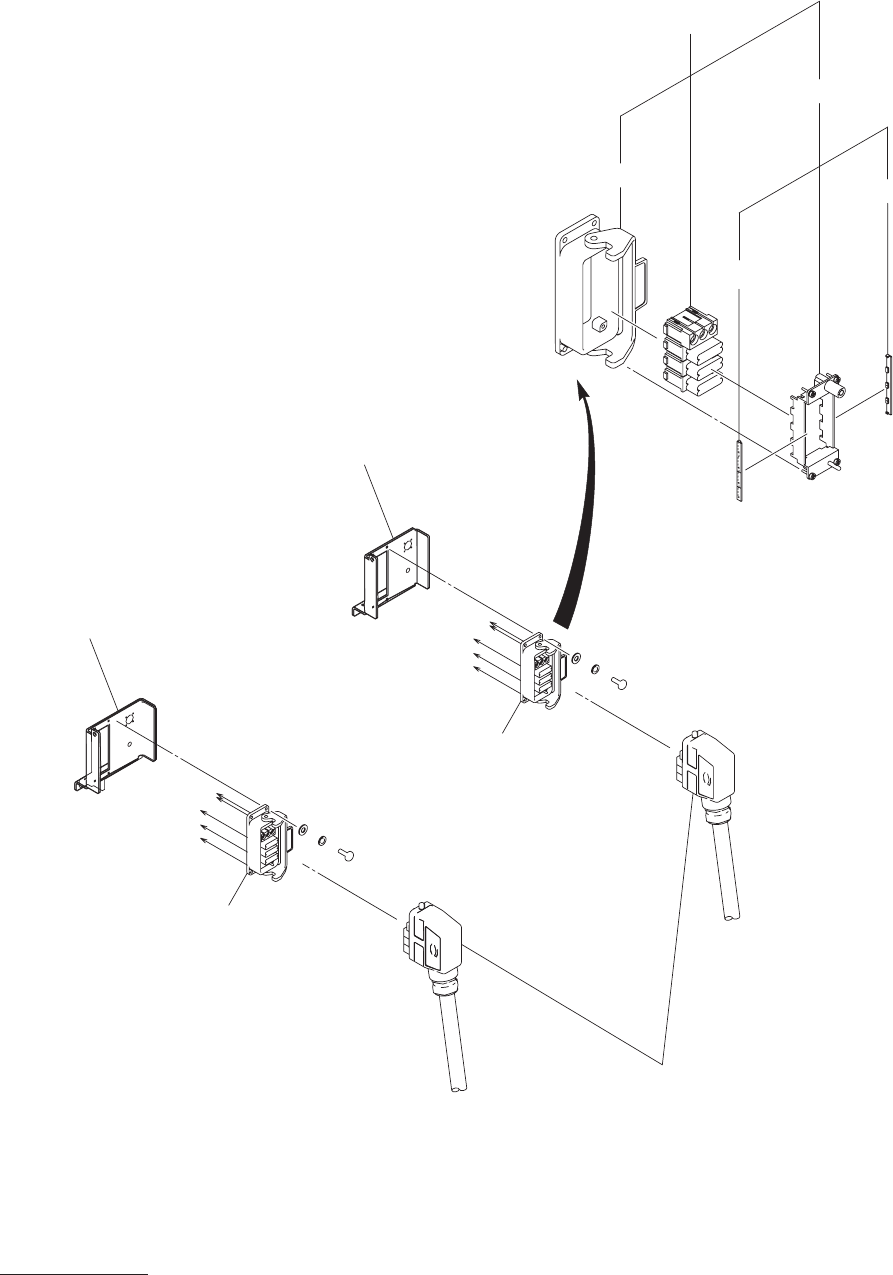

B-6 illust-1

本体部

MAIN BODY SECTION

Fig. B-6

ケーブル

Cable

FB-G300

See Fig. B-5

Key No.451

580

580-01

580

580-02

580-12

580

See Fig. B-1

Key No.54

See Fig. B-1

Key No.53

DETAIL

X30

X1300D1

X1300B1

X1300B2

X1300B3

X1300D2

X1300C

X1300D1

X1300B1

X1300B2

X1300B3

X1300D2

X1300C

Key No. PART No. PART NAME Q’ty REMARKS New Code

NOTE

MODEL GXH-3PH

1004-004

B-6 list-1

580 6301599267 ASSY,CORD 4 845W--100-180 0W201782

580 -01 6301260716 CASE,CONN 1 23K10338

580 -02 6301260693 CASE,CONN 1 23K10336

580 -12 6301613291 ACCESSORY,CONN 2 23K20132
