101 6301572383 GUIDE,LINEAR 1 845C--100-001 222L0885 102 6301446912 MOTOR,AC-SERVO 2 845C--100-002 4M150234 103 6301446929 MOTOR,AC-SERVO 4 845C--100-003 4M150235 106 6301536163 ENCODER(LIDA407 T APESET) 2 845C--100-006 …

100%1 / 200
MODEL GXH-3PH
0712-002
112
113
112
113
112
113
112
113
107
108
106
106
119
101
118
119
101
103
102
103
102
116
116
152
.
175
.
169
164
.
174
.
171
161
161
152
.
175
.
169
164
.
174
157
.
170
157
.
170
157
.
170
157
.
170
.
171
161
161
159
166
167
167
178
178
159
118
115
111
110
111
110
114
163

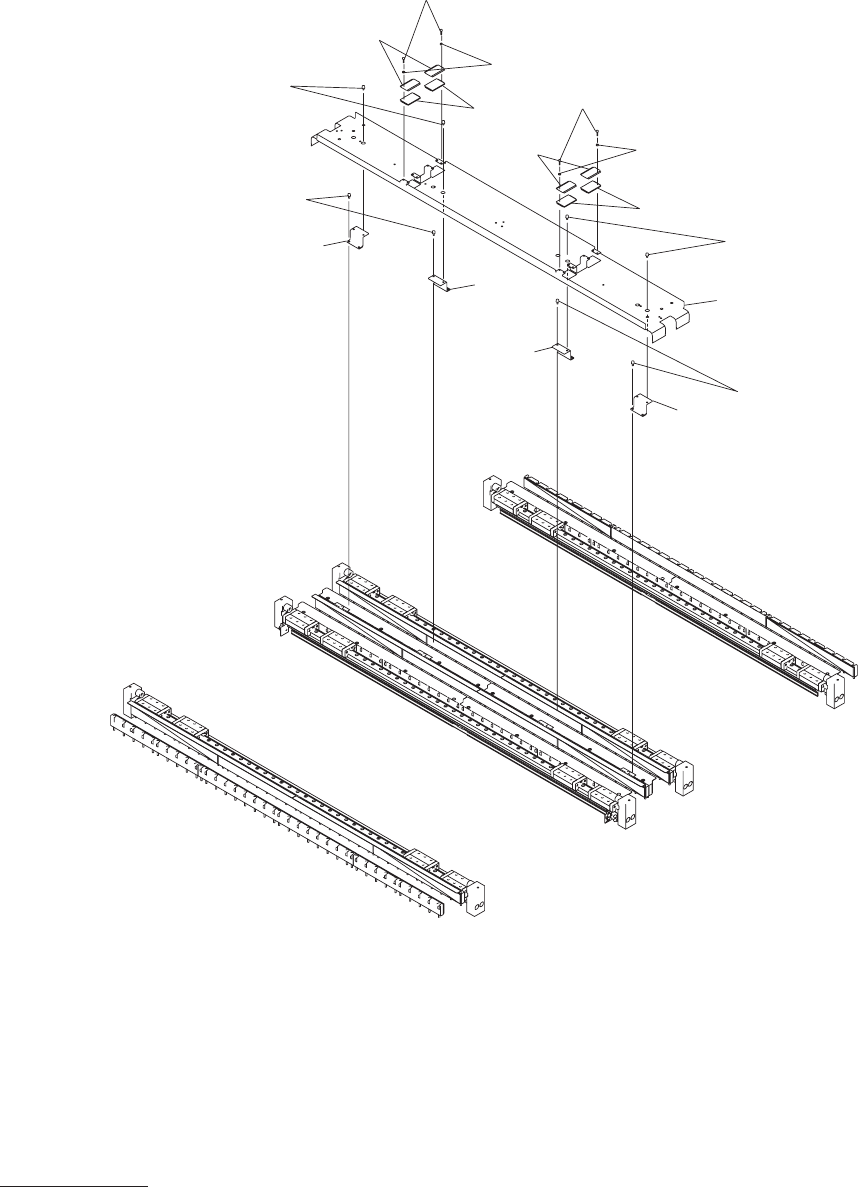

ビーム部
BEAM SECTION
Fig. C-2 Y
ビーム
R Y Beam R
C-2 illust-1
101 6301572383 GUIDE,LINEAR 1 845C--100-001 222L0885
102 6301446912 MOTOR,AC-SERVO 2 845C--100-002 4M150234
103 6301446929 MOTOR,AC-SERVO 4 845C--100-003 4M150235
106 6301536163 ENCODER(LIDA407 TAPESET) 2 845C--100-006 23G40029
107 6301239835 MECH PARTS(LIDA407 HOLDE) 2 845C--100-007 226J1870
108 6301536132 MECH PARTS(LIDA407HOLDER) 2 845C--100-008 226J2344
110 6300000245 SENSOR,PHOTO 2 B2201,B2203
845C--100-010 23G10001
111 6300000269 SENSOR,PHOTO(CONNECTOR) 2 845C--100-011 23G10003
112 6301560731 BLOCK 4 845C--100-012 211G5284
113 6301560755 ROD 4 845C--100-013 216C0954
114 6301560786 BRACKET 1 845C--100-014 211FC243
115 6301560793 BRACKET 1 845C--100-015 211FC244
116 6301535036 PLATE 2 845C--100-016 211DC508
118 6301560847 COVER 2 845C--100-018 211AB875
119 6301560854 COVER 2 845C--100-019 211AB876
152 6300007619 BOLT,HEX-SCT 4 M4X8 845C--100-502 221A0016
157 6300007770 BOLT,HEX-SCT 4 M5X20 845C--100-507 221A0032
159 6300007930 BOLT,HEX-SCT 152 M6X40 845C--100-509 221A0048
161 6300008241 BOLT,HEX-SCT 8 M12X40 845C--100-511 221A0079
163 4111087103 SCR FLT 3X10 4 845C--100-513 221D0212
164 4110407803 SCR PAN 3X12 4 845C--100-514 221E0489
166 4110512804 SCR TRS 4X8 10 845C--100-516 221E0533
167 4111139109 SCR TRS 5X10 16 845C--100-517 221E0534
169 4111414008 WASHER V 4X9X0.8 4 845C--100-519 221H0315
170 4111414107 WASHER V 5X10X1 4 845C--100-520 221H0318
171 4110889005 WASHER F 3X6X0.5 4 845C--100-521 221H0337
174 4110864408 WASHER SPR 3 4 845C--100-524 221H0280
175 4111412905 WASHER SPR 4 4 845C--100-525 221H0284
178 6300007893 BOLT,HEX-SCT 82 M6X20 845C--100-528 221A0044
MODEL GXH-3PH
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
C-2
C-2 list-1
MODEL GXH-3PH
0712-002
224
225
224
225
223
222
222
222
222
255
.
276
.
270
255
.
276
.
270
254
.
276
.
270
254
.
276
.
270
253
262
253
262
ビーム部
BEAM SECTION
Fig. C-3 Y
ケーブルラック
Y
Cable Rack
C-3 illust-1
