MEMO
MODEL GXH-3PH
1004-004
304 6301541983 MOTOR,AC-SERVO 8 M22,M23 845C--100-004 4M150240
305 6301536156 ENCODER(LIDA49M HEAD) 8 U22,U23 845C--100-005 23G40028
311 6300000269 SENSOR,PHOTO(CONNECTOR) 2 845C--100-011 23G10003
312 6300000252 SENSOR,PHOTO 2 B2202 845C--100-102 23G10002
314 6301596891 BRACKET 8 845C--100-314 211FC811
315 6301699974 PLATE 4 845C--100-105 211DE268
316 6301699981 PLATE 4 845C--100-106 211DE269
317 6301588063 BRACKET 4 845C--100-107 211FC671
318 6301588070 BRACKET 4 845C--100-108 211FC672
319 6301535067 PLATE 4 845C--100-109 211DC511
320 6301575377 BRACKET 2 845C--100-110 211FC502
321 6301575384 BRACKET 1 845C--100-111 211FC503
322 6301575421 ROD 4 845C--100-112 216C0964
323 6301590134 BRACKET 4 845C--100-113 211FC524
326 6301575391 BRACKET 1 845C--100-116 211FC504
327 6301263533 PIN,LOCATE 12 845C--100-117 216E1478
328 6301590110 BRACKET 4 845C--100-118 211FC691
329 6301590127 BRACKET 4 845C--100-119 211FC692
330 6301590141 BRACKET 4 845C--100-120 211FC694
340 6301592701 PLATE 8 845C--100-130 211DD136
351 6300007534 BOLT,HEX-SCT 16 M3X12 845C--100-501 221A0008
354 6300007749 BOLT,HEX-SCT 8 M5X10 845C--100-504 221A0029
355 6300007756 BOLT,HEX-SCT 40 M5X12 845C--100-505 221A0030
356 6300007763 BOLT,HEX-SCT 112 M5X16 845C--100-506 221A0031
358 6300007817 BOLT,HEX-SCT 4 M5X40 845C--100-508 221A0036
360 6300008005 BOLT,HEX-SCT 96 M8X16 845C--100-510 221A0055
364 4110407803 SCR PAN 3X12 4 845C--100-514 221E0489
365 4111131400 SCR PAN 4X6 32 845C--100-515 221E0509
368 4111413902 WASHER V 3X7X0.5 16 845C--100-518 221H0312
369 4111414008 WASHER V 4X9X0.8 32 845C--100-519 221H0315
370 4111414107 WASHER V 5X10X1 164 845C--100-520 221H0318
371 4110889005 WASHER F 3X6X0.5 4 845C--100-521 221H0337
372 4111416101 WASHER F 8X15.5X1.6 96 845C--100-522 221H0346
373 4111412806 WASHER SPR 3 16 845C--100-523 221H0281
374 4110864408 WASHER SPR 3 4 845C--100-524 221H0280
375 4111412905 WASHER SPR 4 32 845C--100-525 221H0284
376 4111416705 WASHER SPR 5 160 845C--100-526 221H0287
377 4111413100 WASHER SPR 8 96 845C--100-527 221H0291
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
C-4
C-4 list-1
MEMO
MODEL GXH-3PH
0712-002
451
451
452
452
451
451
452
452
See Fig. DX-3
Key No.266
See Fig. DX-3
Key No.265
See Fig. DX-3
Key No.255
See Fig. DX-3
Key No.256
X12103
X12103
X12201
X12201
X13601
X13601
X20201
X20201
X12102
X12102
X187C1
X187C1
X12301
X12301
X19506
X19506
X10520
X10520
X125X1
X125X1
X231P1
X231P1
X2200
X2200
X12103
X12201
X13601
X20201
X12102
X187C1
X19506
X10520
X2200
X2100
X2100
X2300
M22
U22
B2101
B2102
B2202
X10306
X12507
X23601
M22
U22
B2101
B2102
B2202
X10306
X12507
X23601
M22
U22
B2101
B2102
B2202
X10306
X12507
X23601
M22
U22
B2101
B2102
B2202
X10306
X12507
X23601
M21
U21
M23
U23
X12501
M21
U21
M23
U23
X12501
M21
U21
M23
U23
X12501
M21
U21
M23
U23
X12501
X2300
X12301
X125X1
X231P1
X2100
X2300
X12103
X12201X13601
X20201
X12102
X187C1
X12301
X19506
X10520
X125X1
X231P1
X2200
X2100
X2300

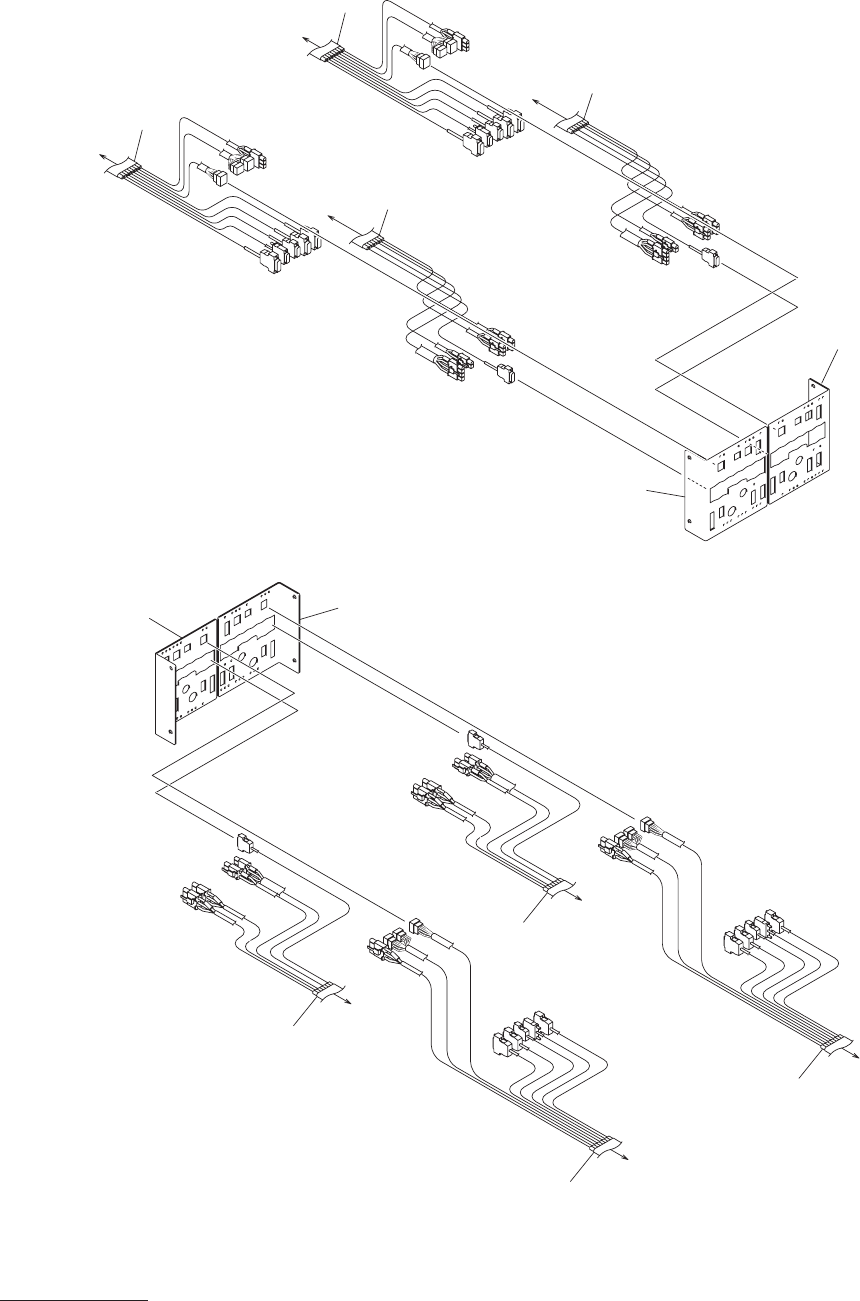

ビーム部
BEAM SECTION
Fig. C-5
ケーブル
Cable
C-5 illust-1
