MODEL GXH-3PH 0909-003 121 124 125 1 17 131 132 103 173 136 137 144 140 137 105 148 134 133 BLOCK4 158 . 174 . 167 154 . 173 . 166 154 . 173 . 166 152 . 173 . 166 158 . 174 . 167 153 . 173 . 166 153 . 173 . 166 159 . 174…

100%1 / 200
MODEL GXH-3PH
0909-003
1 1 7
1 1 5
1 1 8
1 1 9
120
121
124
125
131
132
103
105
133
134
148
136
135
137
140
147
173
157
177
158
.
174
.
167
154
.
173
.
166
154
.
173
.
166
153
.
173
.
166
158
.
174
.
167
152
.
173
.
166
152
.
173
.
166
159
.
174
.
167
151
.
171
.
165
154
.
173
.
166
155
.
173
.
166
158
.
174
.
167
153
.
173
.
166
154
.
173
.
166
154
.
173
.
166
153
.
173
.
166
153
.
173
.
166
153
.
173
.
166
BLOCK1
144
ビーム
X
部
BEAM X SECTION
Fig. CX-2
ケーブルラック
1,4 Cable Rack 1,4

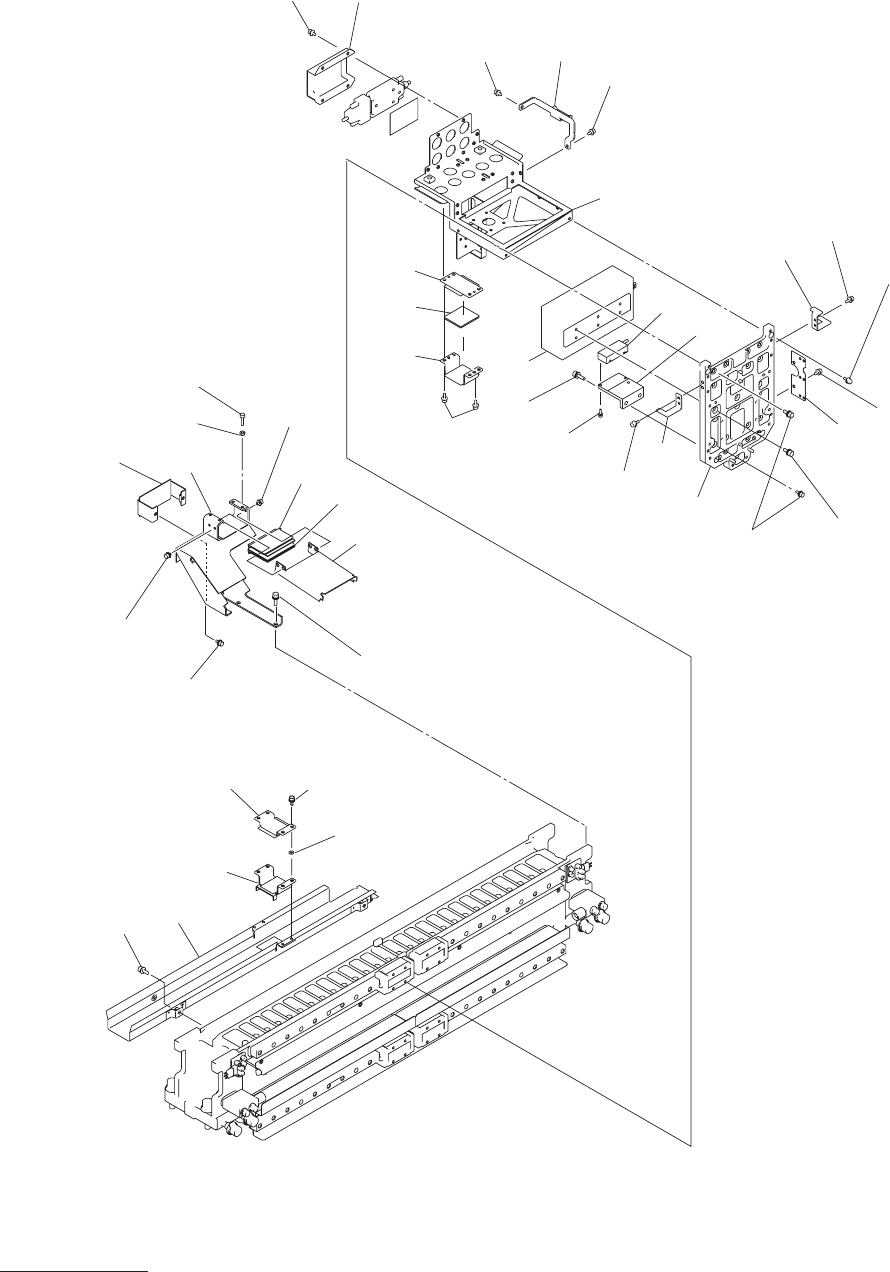

CX-2 illust-1
MODEL GXH-3PH
0909-003
121
124
125
117
131
132
103
173
136
137
144
140
137
105
148
134
133
BLOCK4
158
.
174
.
167
154
.
173
.
166
154
.
173
.
166
152
.
173
.
166
158
.
174
.
167
153
.
173
.
166
153
.
173
.
166
159
.
174
.
167
151
.
171
.
165
153
.
173
.
166
154
.
173
.
166
158
.
174
.
167
155
.
173
.
166
154
.
173
.
166
154
.
173
.
166
1
15
119
118
120
157
177
152
.
173
.
166
153
.
173
.
166
135
ビーム
X
部
BEAM X SECTION
Fig. CX-2
ケーブルラック
1,4
Cable Rack 1,4

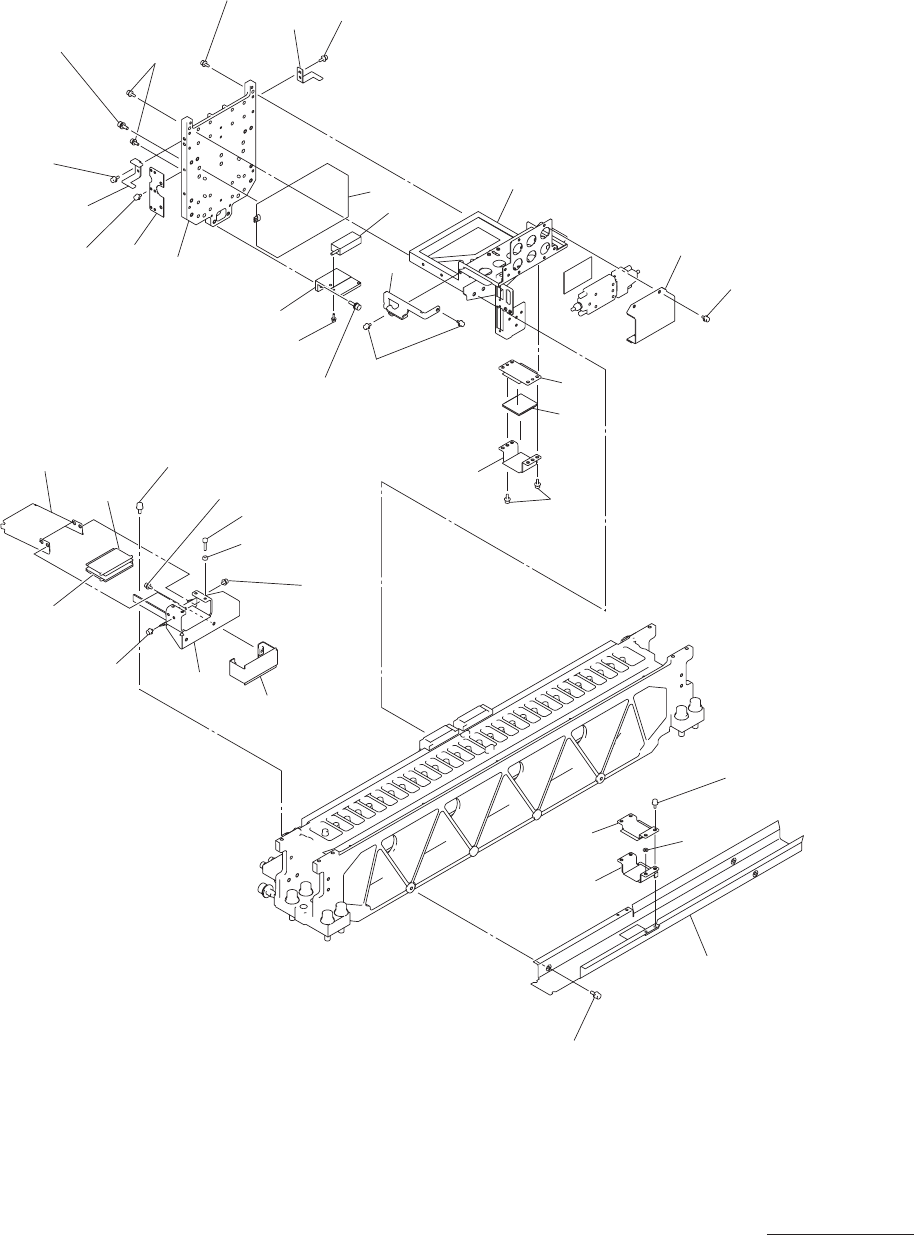

CX-2 illust-2
103 6301541990 MOTOR,AC-SERVO 2 M21 845CX-100-203 4M150241
105 6301536156 ENCODER(LIDA49M HEAD) 2 U21 845CX-100-005 23G40028
115 6301570068 BRACKET 2 845CX-100-215 211FC425
117 6301233840 PLATE 2 845CX-100-217 211D9273
118 6301233857 PLATE 2 845CX-100-218 211D9274
119 6301233864 PLATE 2 845CX-100-219 211D9275
120 6301534985 BRACKET 2 845CX-100-220 211FB861
121 6301667447 BRACKET 2 845CX-100-221 211FD609
124 6301663579 BRACKET 2 845CX-100-224 211FD555
125 6301663586 BRACKET 2 845CX-100-225 211FD556
131 6301621371 PLATE 2 845CX-100-301 211DD526
132 6301233567 BRACKET 2 845CX-100-302 211F7961
133 6301578682 BRACKET 2 845CX-100-303 211FC549
134 6301578705 BRACKET 2 845CX-100-304 211FC550
135 6301233949 PLATE . 845CX-100-305 211D9276
136 6301233963 BRACKET 2 845CX-100-306 211F7974
137 6301249032 PLATE 2 845CX-100-307 211D9396
140 6301624105 BRACKET 2 845CX-100-310 211FD166
144 6301596891 BRACKET 2 845CX-100-314 211FC811
147 6301598499 BRACKET 2 845CX-100-317 211FC836
148 6301559209 BRACKET 2 845CX-100-318 211FC221
151 6300007527 BOLT,HEX-SCT 4 M3X10 845CX-100-501 221A0007
152 6300007602 BOLT,HEX-SCT 8 M4X6 845CX-100-502 221A0015
153 6300007619 BOLT,HEX-SCT 20 M4X8 845CX-100-503 221A0016
154 6300007626 BOLT,HEX-SCT 36 M4X10 845CX-100-504 221A0017
155 6300007633 BOLT,HEX-SCT 32 M4X12 845CX-100-505 221A0018
157 6300007657 BOLT,HEX-SCT 8 M4X16 845CX-100-507 221A0020
158 6300007756 BOLT,HEX-SCT 22 M5X12 845CX-100-508 221A0030
159 6300007763 BOLT,HEX-SCT 4 M5X16 845CX-100-509 221A0031
165 4111413902 WASHER V 3X7X0.5 4 845CX-100-515 221H0312
166 4111414008 WASHER V 4X9X0.8 102 845CX-100-516 221H0315
167 4111414107 WASHER V 5X10X1 26 845CX-100-517 221H0318
171 4111412806 WASHER SPR 3 4 845CX-100-521 221H0281
173 4111412905 WASHER SPR 4 96 845CX-100-523 221H0284
174 4111416705 WASHER SPR 5 26 845CX-100-524 221H0287
177 4111410307 NUT HEX 4 8 845CX-100-527 221F0082
MODEL GXH-3PH
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
CX-2
CX-2 list-1
