MODEL GXH-3PH
0712-002

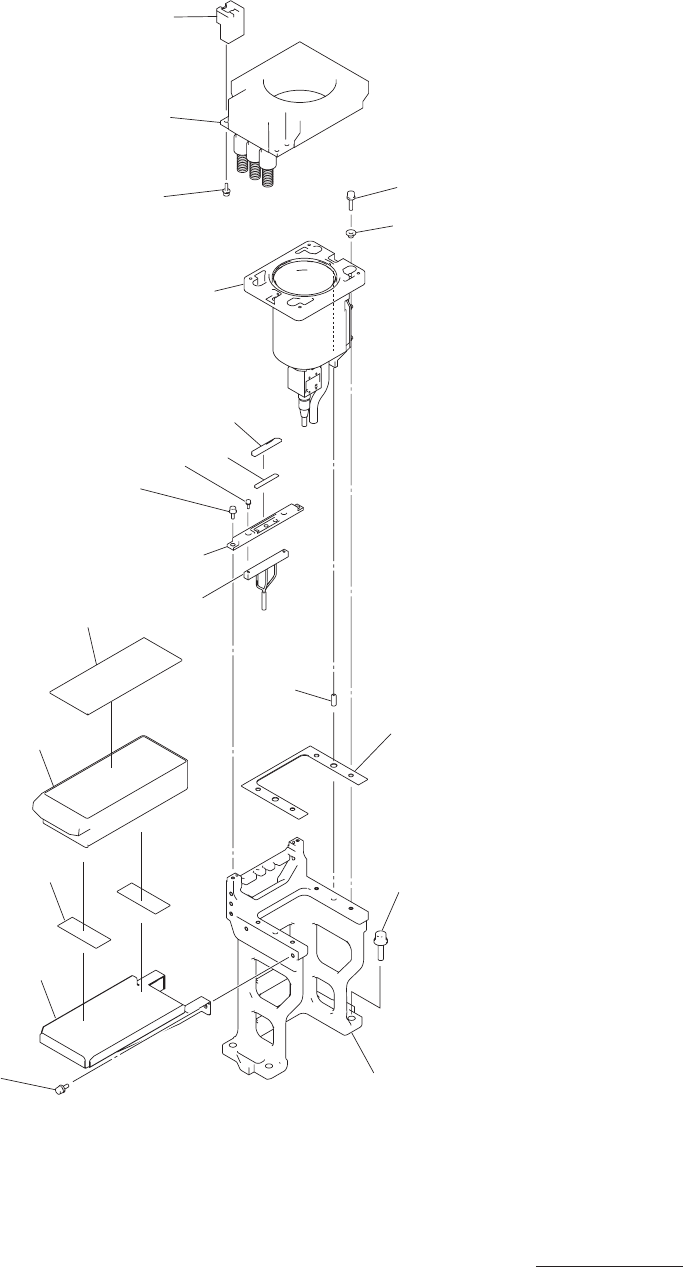

架台上全体
OVERALL UPPERFRAME
Fig. D-1
部品認識カメラ
1,4 Recognition Camera 1,4
53
・
61
・
57
13
8
7
6
1
2
3
22
52
・
60
・
56
55
・
62
・
58
4
5
14
51
・
59
52
・
60
・
56
21
10
23
9
54
・
61
・
57
BLOCK4
D-1 illust-2
1 6301565538 BASE 2 845D--100-101 210A2857
2 6301572499 SPACER 2 845D--100-102 211E1084
3 6300842708 PIN,LOCATE 4 845D--100-103 216E0832
4 6301281650 PLATE 2 845D--100-104 211D9700
5 6301360652 PLATE 2 845D--100-105 211DA514
6 6301579733 BRACKET 2 845D--100-106 211FC562
7 6301242484 MECH PARTS(MAGNETIC TAPE) 4 845D--100-107 226J1873
8 6301242538 BOX 2 845D--100-108 211B0951
9 6300703665 ACCESSORY,P.C.B 8 845D--100-109 23L10051
10 6301576848 BLOCK 2 845D--100-110 211G5378
13 6301271989 SHEET 2 845D--100-113 211H0308
14 6301571584 BLOCK 2 845D--100-114 211G5353
21 6301558127 ASSY,SCOPE UNIT 2 B61(1),B61(4)
845D--100-201 0Z100028
22 6301246598 LIGHTING UNIT 2 845D--100-202 4Z110137
23 6301427331 LIGHTING UNIT 2 845D--100-203 4Z110184
51 6300007510 BOLT,HEX-SCT 4 M3X8 845D--100-501 221A0006
52 6300007633 BOLT,HEX-SCT 8 M4X12 845D--100-502 221A0018
53 6300007756 BOLT,HEX-SCT 4 M5X12 845D--100-503 221A0030
54 6300007770 BOLT,HEX-SCT 8 M5X20 845D--100-504 221A0032
55 6300008036 BOLT,HEX-SCT 8 M8X30 845D--100-505 221A0058
56 4111414008 WASHER V 4X9X0.8 8 845D--100-506 221H0315
57 4111414107 WASHER V 5X10X1 12 845D--100-507 221H0318
58 4111414503 WASHER V 8X17X1.6 8 845D--100-508 221H0323
59 4111412806 WASHER SPR 3 4 845D--100-509 221H0281
60 4111412905 WASHER SPR 4 8 845D--100-510 221H0284
61 4111416705 WASHER SPR 5 12 845D--100-511 221H0287
62 4111413100 WASHER SPR 8 8 845D--100-512 221H0291
MODEL GXH-3PH
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
D-1
D-1 list-1
