• SYNTHESO HT220 (NOK KLUBER) or its equivalent
Table 4A4
Oil Names Makers
KLUBERSYNTH GH6-220 NOK KLUBER
(2) Brush
Use a brush whose bristles do not come off if possible.
(3) Vinyl Gloves
Use a pair of vinyl gloves to apply grease or oil by hand.
(4) Grease Applicator
Use a normal grease applicator on the market.
(5) Hand Grease Gun "KH120"
Maker: Yamada Yuki
Use the two grease guns (accessory parts) separately for two types
of greases. Be sure to select a proper gun.
Two Types of Greases: DAPHNE EPONEX GREASE No. 1
NEW MOLYNOC GREASE No. 1
Refer to the attached instruction manual for the detailed
information on how to use these greases.
Appearance
Fig. 4A3
1.2 Preparation for Maintenance
Do not mix SYNTHESO HT220 with
KLUBERSYNTH GH6-220.
CAUTION
0210-004 1-4 AFO01ETRP
Attachment for Hand Grease Gun KH-120

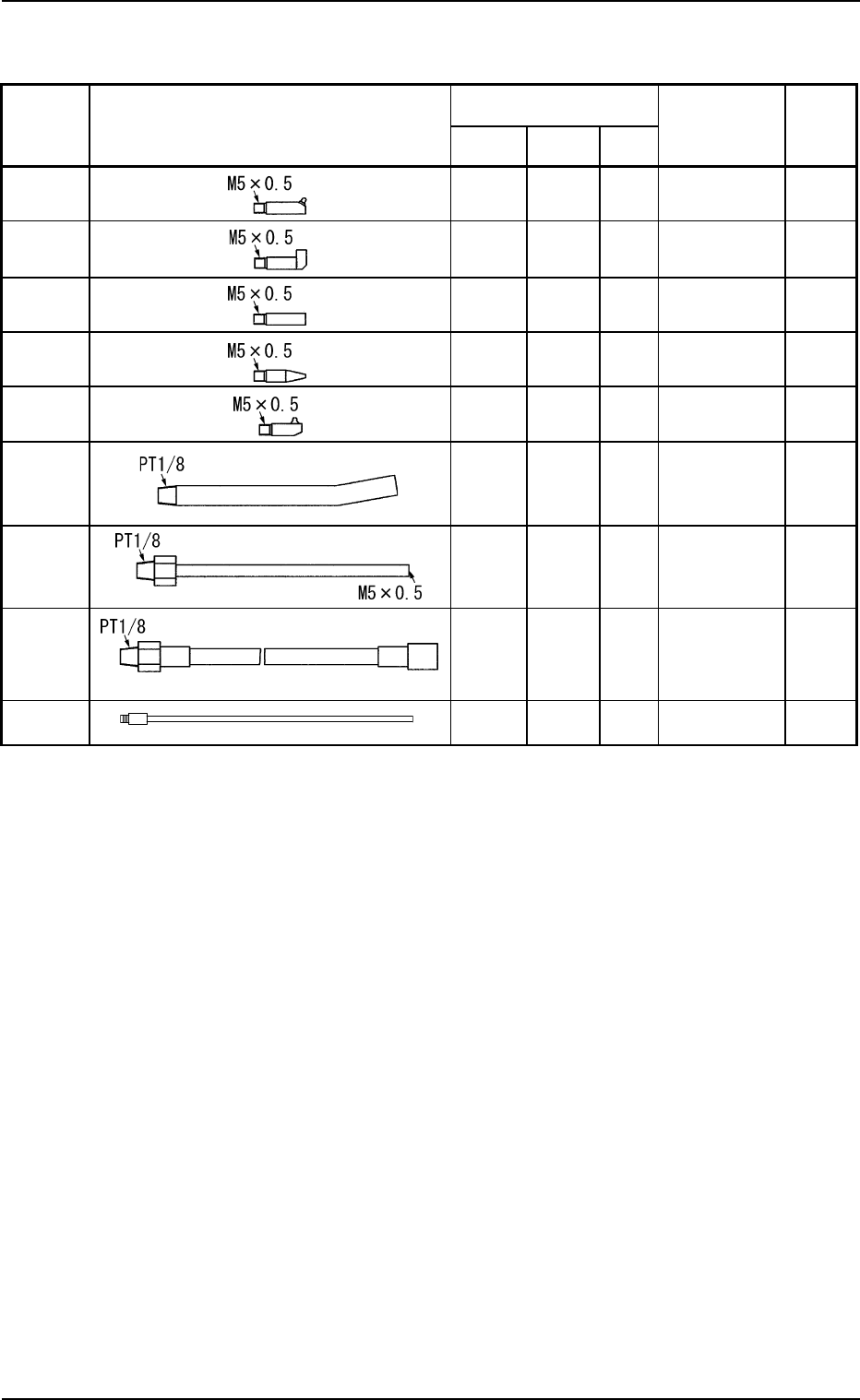

Table 4A5
Standard Shape Part No. Remarks
V Type 1 0 1 630 061 2028 HTI
S Type 1 1 2 630 061 1977 HTI
N Type 1 1 2 630 061 7467 THK
P Type 1 1 2 630 061 7474 THK
L Type 1 0 1 630 061 7481 THK
H Type 1 0 1 630 061 7450 THK
U Type 1 1 2 630 061 7443 THK
SPK-3C 1 0 1 630 061 7504 Yamada
Yuki
FL Type 1 0 1 630 104 9823
HTI
1.2 Preparation for Maintenance
Grease and Required Number
of Attachments
For DAPHNE
EPONEX
GREASE No. 1
For NEW
MOLYNOC
GREASE No. 1
Total
Frequency
in Use
0307-004 1-5 AFO01ETRP
(6) Dispense Gun "DG10KIT"
Maker: Sanei Tech
This gun can be used for three types of greases.
Use the syringes and the nozzles properly.
Three Types of Greases: DAPHNE EPONEX GREASE No. 1
DAPHNE EPONEX GREASE No. 3
NEW MOLYNOC GREASE No. 1

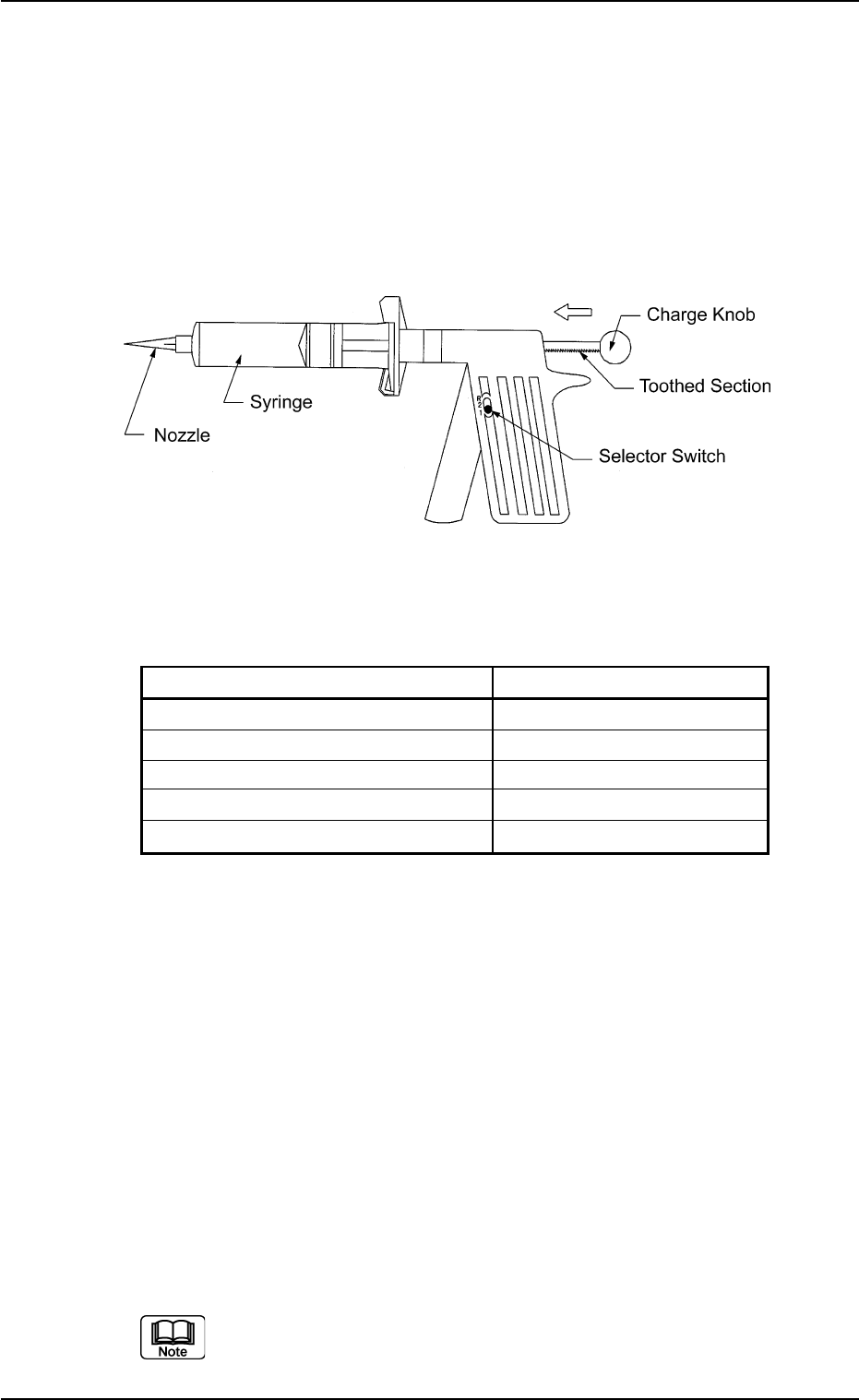

Appearance
Fig. 4A4
<Contents of Kit>
Table 4A6
Part Name Q’ty
Dispense Gun (Main Body) for 10 cc 1
Syringe 20
Piston 20
End Cap 20
Syringe Cap 20
Usage
(6-1) Set the selector switch to "1" in normal cases.
Note: When the switch is set to "2", grease will be pushed out
excessively.
Be sure to set the switch to "R" before storing the gun (keeping it
unused).
(6-2) Before the charge knob is pushed to dispense the grease, con-
firm that the charge rod is inserted with its toothed section facing
downward.
(6-3) Check the amount of grease before it is supplied
(6-4) Push the charge knob slightly forward before the grease is sup-
plied.
Refer to the attached instruction manual for the detailed infor-
mation on how to use the dispense gun.
1.2 Preparation for Maintenance
