Error ID Item Description
430301 Head No. The head no. Detection sensor was not activated.
(Cause 1) Self-Diagnostics Error Message
(Remedy 1) Zero all axes and re-start the operation.
When the machine cannot be set to its normal condition, consult our service
personnel for the remedy.
430401 X/Y Table P.C.B. was dislodged while the X/Y table was in motion.
430402 X/Y Table P.C.B. was dislodged while the X/Y table was in motion.
(Cause 1) The P.C.B. is trapped on the X/Y table.
The P.C.B. pilot pin, the positioning lever, and the P.C.B. support pin are not located
at their regular positions.
(Remedy 1) Check how the P.C.B. pilot pin, the positioning lever, and the P.C.B. support pins
are attached.
430403 X/Y Table X/Y chute has gone up while X/Y table was in motion.
(Cause 1) Self-Diagnostics Error Message
(Remedy 1) Zero all axes and re-start the operation.
When the machine cannot be set to its normal condition, consult our service
personnel for the remedy.
0110-003 2-107 AFO01ETRP
3.3 Error IDs and Remedial Procedures
Error ID Item Description
430501 Feeder Carriage Fdr.crg. axis motor #1 & #2 have collided.
430502 Feeder Carriage Fdr.crg. axis motor #2 & #3 have collided.
430503 Feeder Carriage Fdr.crg. axis motor #3 & #4 have collided.
(Cause 1) Dirt adheres to the sensor and the optical beam of the sensor is shielded.
(Cause 2) The sensor position may be wrong or the sensor may be defective.
The servo pack may be defective.

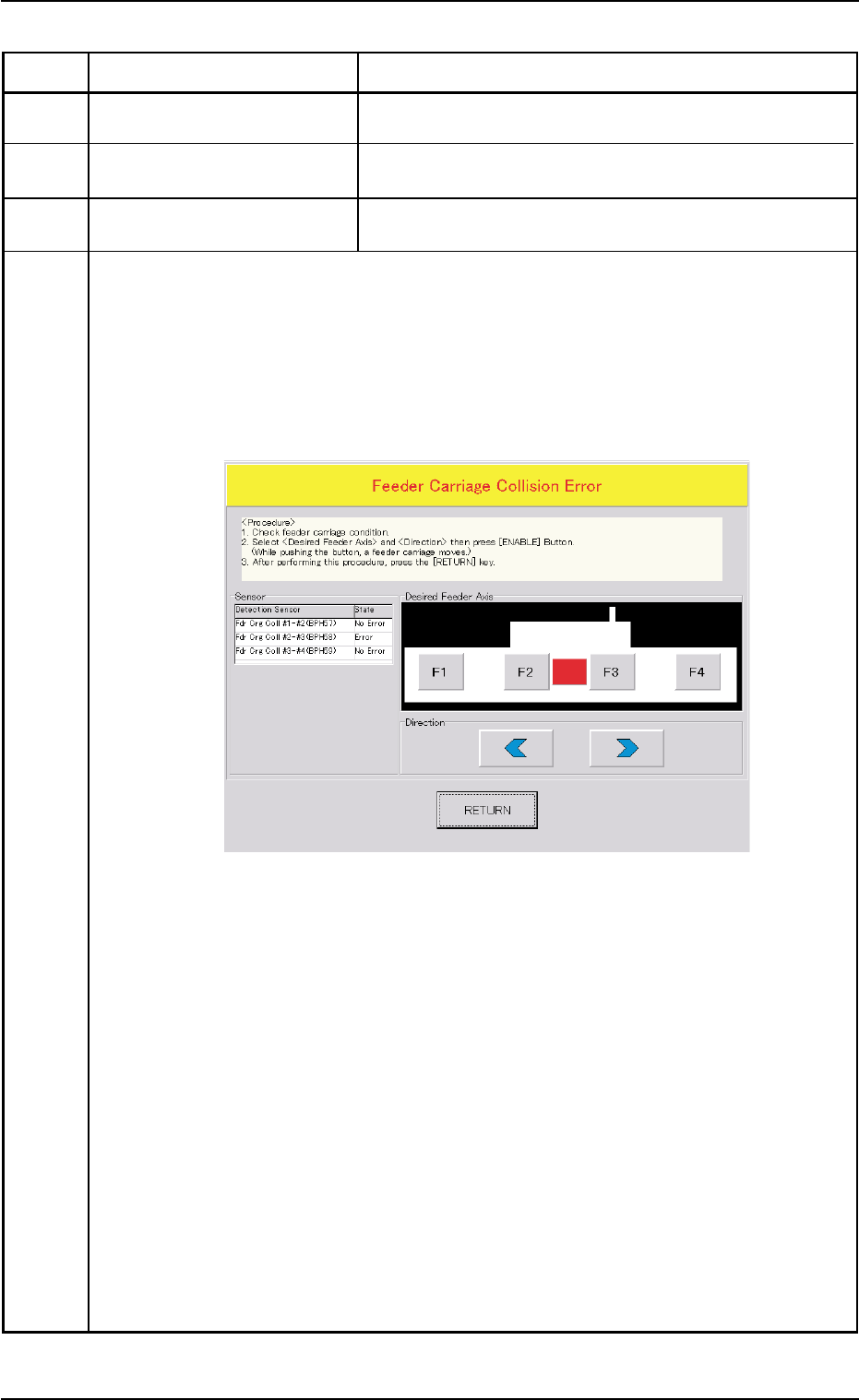

(Remedy 1) When the [RETURN] button is pressed, the "Feeder Carriage Collision Error"
window opens.
Follow the instructions described in this window and the procedure below for the
reset operation.
Notes: (a) When the power is re-supplied without following the correct procedure
to cancel the error, the feeder carriage collision error will be detected
again and the message will be issued because the contents of the
feeder carriage collision error are backed up.
(b) No zeroing operation can be performed when a feeder carriage collision
error is not canceled completely.
(1) Confirm that there is no error in the feeder carriage section.
(2) Select the object feeder and the direction of the movement. After that, press
the [ENABLE] button to move the feeder carriages in separate directions.
Note: While the [ENABLE] button is held down, the feeder carriages keep on
moving.
(3) After Step (2), press the [RETURN] button.
Ref.: The original window resumes.
(4) Zero all axes and re-start the operation.
(Remedy 2) Contact our service personnel for details.
0110-003 2-108 AFO01ETRP
Fig. 4B17
3.3 Error IDs and Remedial Procedures
Error ID Item Description

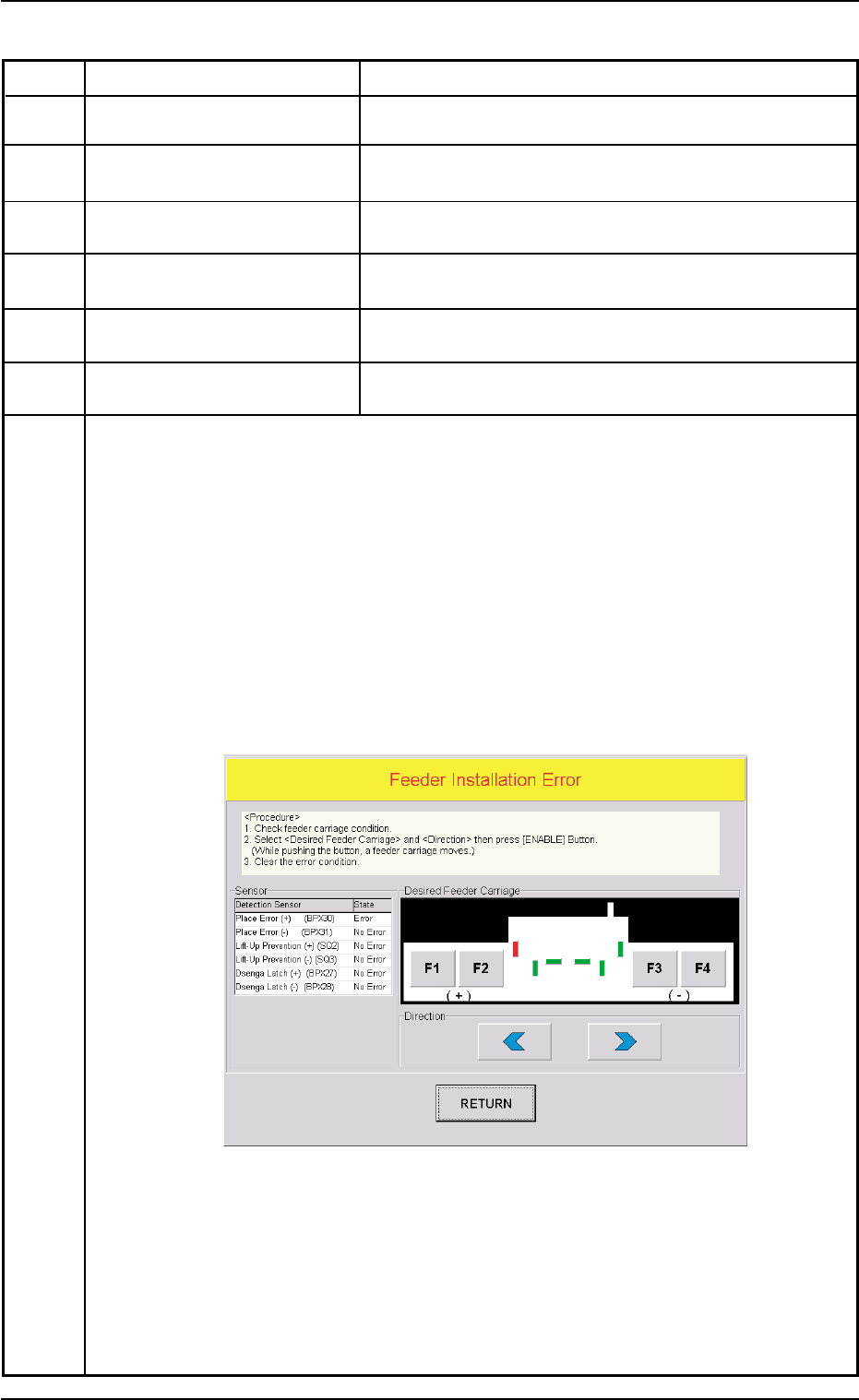

430603 Feeder Set The fdr. mis-set holder (+) has been detected.
430604 Feeder Set The fdr. mis-set holder (−) has been detected.
430605 Feeder Set The fdr. mis-set bar (+) has been detected.
430606 Feeder Set The fdr. mis-set bar (−) has been detected.
430607 Feeder Set The fdr. ldx. Lever (+) has been detected.
430608 Feeder Set The fdr. ldx. Lever (−) has been detected.
(Cause 1) The tape feeder is not correctly installed on the feeder carriage.
• The tape feeder was lifted afloat and touches the detection photosensor.
• The tape feeder touched the detection photosensor because it was deformed.
• The tape feeder touched the detection photosensor because it is not for the TCM-
X series.
• The hook of the tape feeder was not locked and the hook or the suppressor
touches the detection photosensor.
• The tape end touched the detection photosensor because it was long.
(Remedy 1) When the [RETURN] button is pressed, the "Feeder Carriage Collision Error"
window opens.
Follow the instructions described in this window and the procedure below for the
reset operation.
(Continued to the next page)
0207-004 2-109 AFO01ETRP
Fig. 4B18
3.3 Error IDs and Remedial Procedures
