(9) Head Section 1.3 Maintenance Spots 0307-007 1-20 AFO01ETRP Fig. 4A20

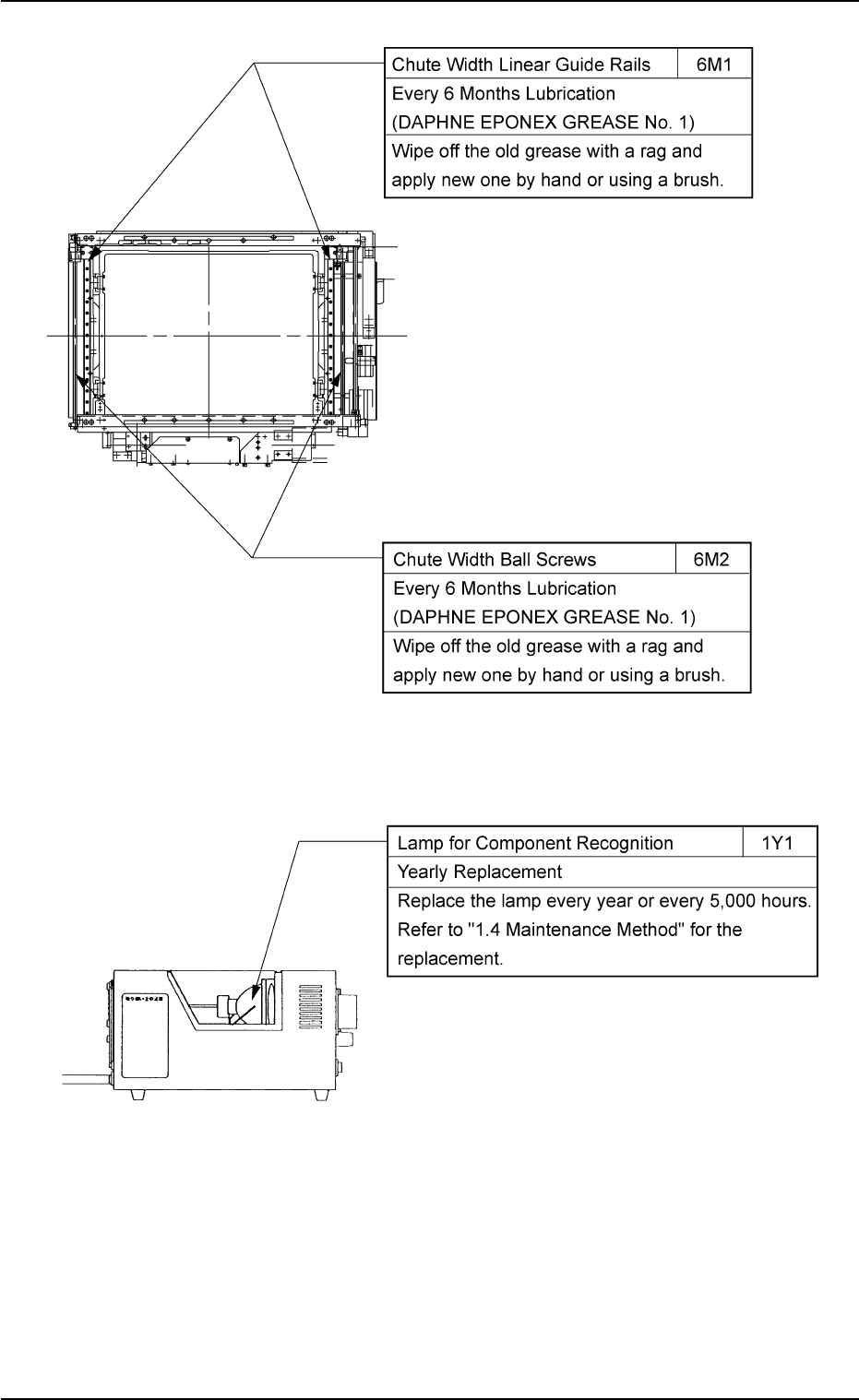

(8) Light Source Device for Component Recognition

1.3 Maintenance Spots

0207-004 1-19 AFO01ETRP

Fig. 4A18

Fig. 4A19

(9) Head Section

1.3 Maintenance Spots

0307-007 1-20 AFO01ETRP

Fig. 4A20

Cam Follower

Opening of Head Cap

Miniature Stroke Bearingޓޓ 1M2

Every Month Inspection/Lubrication (DAPHNE EPONEX GREASE No. 1)

Move the cam follower to the lowest position.

Push up the vacuum nozzle and release your finger. When the vacuum nozzle does not

move down smoothly, cleaning and lubrication are required.

Note:

Refer to "1.4.5 Disassembly, Cleaning, and Lubrication of Miniature Stroke

Bearing".

Miniature Stroke Bearingޓޓ 6M11

Every 6 Months Cleaning

• Refer to "1.4.5 Disassembly, Cleaning, and Lubrication of Miniature Stroke Bearing"

and wash the MSB shaft and outer cylinder with kerosene for 5 to 10 minutes, using

the ultrasonic cleaner.

• When the upper and lower seals are scratched or deformed or foreign substances

have accumulated on them, replace them with new ones (630 048 0849).

Fig. 4A21

Fig. 4A22

0307-005 1-21

AFO01ETRP

1.3 Maintenance Spots
